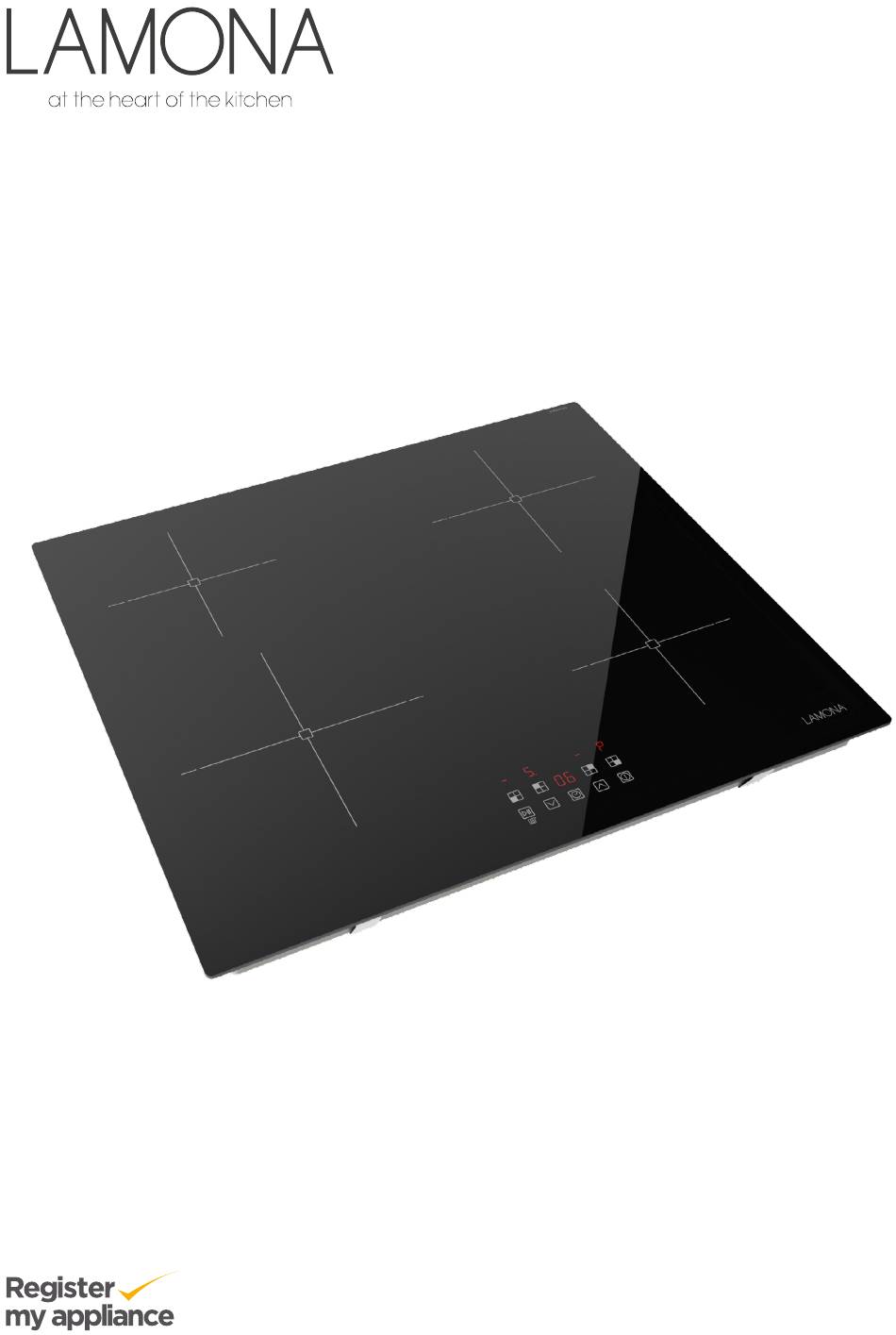

- Page 1 Induction Hob LAM1804 Installation Instructions ISSUE v1.1 230224 www.howdens.com/appliance-registration...
- Page 2 www.howdens.com...
-
Page 3: Welcome
Welcome Dear Customer Congratulations on your choice of a Lamona appliance. • This Lamona appliance complies with all current local and national safety requirements. However, inappropriate use could lead to personal injury and damage to property. • Please read the instructions carefully before using the Lamona appliance. -
Page 4: Table Of Contents
Safety Information WARNING! This hob must The Hob must Do not install a NOTE: If the electricity be connected to an earthed be fixed securely damaged appliance. cable is damaged it mains supply in accordance and level. must be replaced by a with the product technical competent person. -
Page 5: Warnings
This will help prevent both personal injury and hob damage. Lamona expressly and strongly advises that you thoroughly read and adhere to the instructions in the installation section, as well as the safety instructions and warnings. Lamona cannot be held responsible for any injury or damage resulting from non-compliance with these instructions. -
Page 6: Safety Instructions
Installation Instructions Safety Instructions Please follow these safety instructions carefully, to reduce the risk of damage, accidents and injuries. Safety with Children Installation Environment • Use the child lock feature to prevent children or pets • The hob must not be used in a non-stationary location from activating any of the ‘touch keys’... -
Page 7: Safety After Cooking/Testing
• Risk of burns: Metal items worn on your body immediately disconnect or isolate the hob from may become hot in the immediate vicinity of the the mains electricity supply and call the LAMONA induction hob. This risk does not apply to objects Service Line. -
Page 8: General Safety
Immediately switch OFF the appliance. Disconnect from the mains immediately and call the LAMONA Service Line. Problem Solving • Only use hob guards designed for use with this • Do not carry out any repairs or modifications on appliance. -
Page 9: Waste Regulation And Care For The Environment
(Lamona). Appropriate disposal of used appliances helps prevent potential negative consequences for the Before disposal, make sure to delete any personal environment and human health. -
Page 10: Before Installing
Inspect the hob before installation. Do not install the appliance if the hob or power cable is damaged. Call the Lamona Service Line. Risk of damage from incorrect installation. Incorrect installation can cause damage to the induction hob casing and electronics. -
Page 11: Ventilation
Installation Instructions • The clearance between the hob and an extraction Minimum distance required above the hob hood must be at least as large as the that stipulated in the assembly instructions for the cooker hood. • Ensure the power cable cannot come into contact with hot appliance parts. -
Page 12: Cutting Out The Worktop
Installation Instructions Ventilation is very important: We recommend (in addition to the instructions shown in the Kitchen Installation Manual), that further ventilation is made possible by modifying the cabinet as shown. Additional cut-outs will improve ventilation. Please see the latest Howdens Kitchen Standard, 600mm base cabinet shown. -
Page 13: Minimum Distances
Installation Instructions • The thickness of the worktop BACK should be at least 30mm. • A 50mm gap is the minimum distance required around the worktop aperture to an adjacent wall. • On the left and right side of the hob, 200mm is recommended for safe practical use. -
Page 14: Apply The Supplied Sealing Strip
Installation Instructions 2 Apply the supplied sealing strip IMPORTANT • No liquids must penetrate between the edge of the hob and the worktop, or between the hob and the wall. If this happens the hob electronics could be damaged. • If installing the hob into an uneven worktop, e.g. with a ceramic or similar covering (tiles etc.), the supplied seal should not be used. -
Page 15: Electrical Connection
Installation Instructions Electrical Connection Electrical Safety • Only a suitably qualified and authorised professional should connect the appliance to the mains supply. • Check that the installation is compliant with all statutory and local regulations. • This hob is designed for permanent, built-in use. It is to be connected to a fixed and permanent (building) electrical wiring system. - Page 16 Installation Instructions Electrical connection (continued) Double Pole: The term DOUBLE POLE -/+ indicates that both the live and neutral supplies are switched and disconnected simultaneously. Blue - Neutral IMPORTANT: The wires in the mains power cable are Brown - Live coloured in accordance with this code: Green / Yellow - Earth As the colours of the wires in the mains lead of...
-
Page 17: Technical Specification
Error Codes Problem Reason Solution E4 / E5 Temperature sensor failure. Contact the Lamona Service Line. Temperature sensor of the IGBT E7 / E8 Contact the Lamona Service Line. failure. Check the mains power supply is working correctly. Power on after the mains power supply is working. -
Page 18: Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 19 Installation Instructions Notes Exclusive to Howdens...
- Page 20 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in February 2024. The company has a policy of continuous product development and Howden Joinery Ltd.
