SETUP INSTRUCTIONS (continued)
4

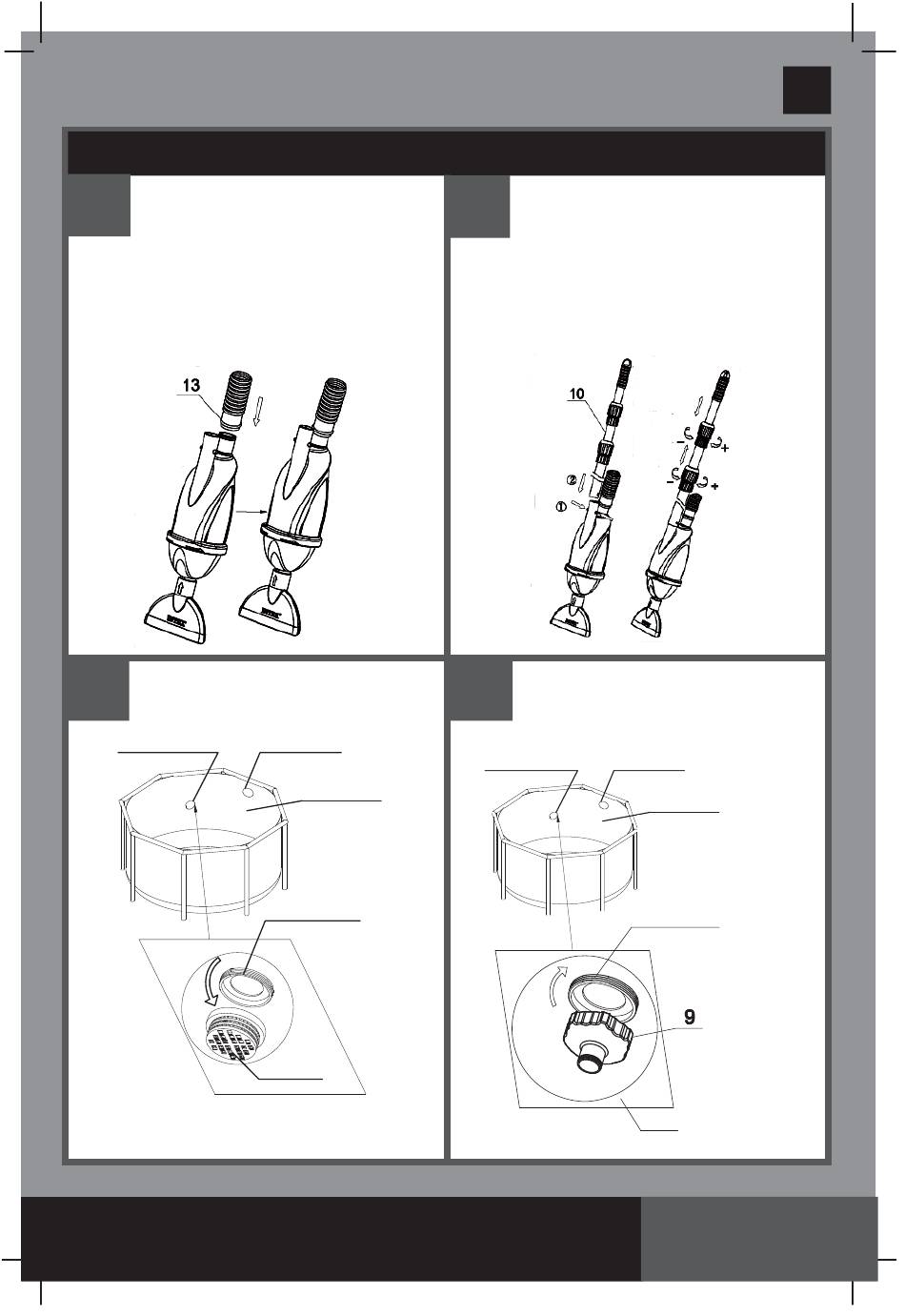

Attach one end of the
vacuum hose (13) to the
vacuum body (3). Make
sure the vacuum hose end
is covering the hose seal (2)
on the vacuum body.
6
Inlet hose connection outlet hose connection
S AVE THESE INSTRUCTIONS
(174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875" X 7.25" PANTONE 295U 05/23/2017
Inside of the
Pool Wall
Threaded Strainer
Connector
Strainer Grid
Squeeze the spring tips (1) and
5
attach the telescoping aluminum
shaft (10) onto the vacuum
body (3). Make sure the shaft is
securely attached by checking the
spring "pops" into the pre-drilled
holes. Adjust the length of the
shaft by unlocking, extending and
locking each section accordingly.
7
adaptor
Screw the
threaded strainer connector,
from inside of the pool.
Inlet hose connection outlet hose connection
