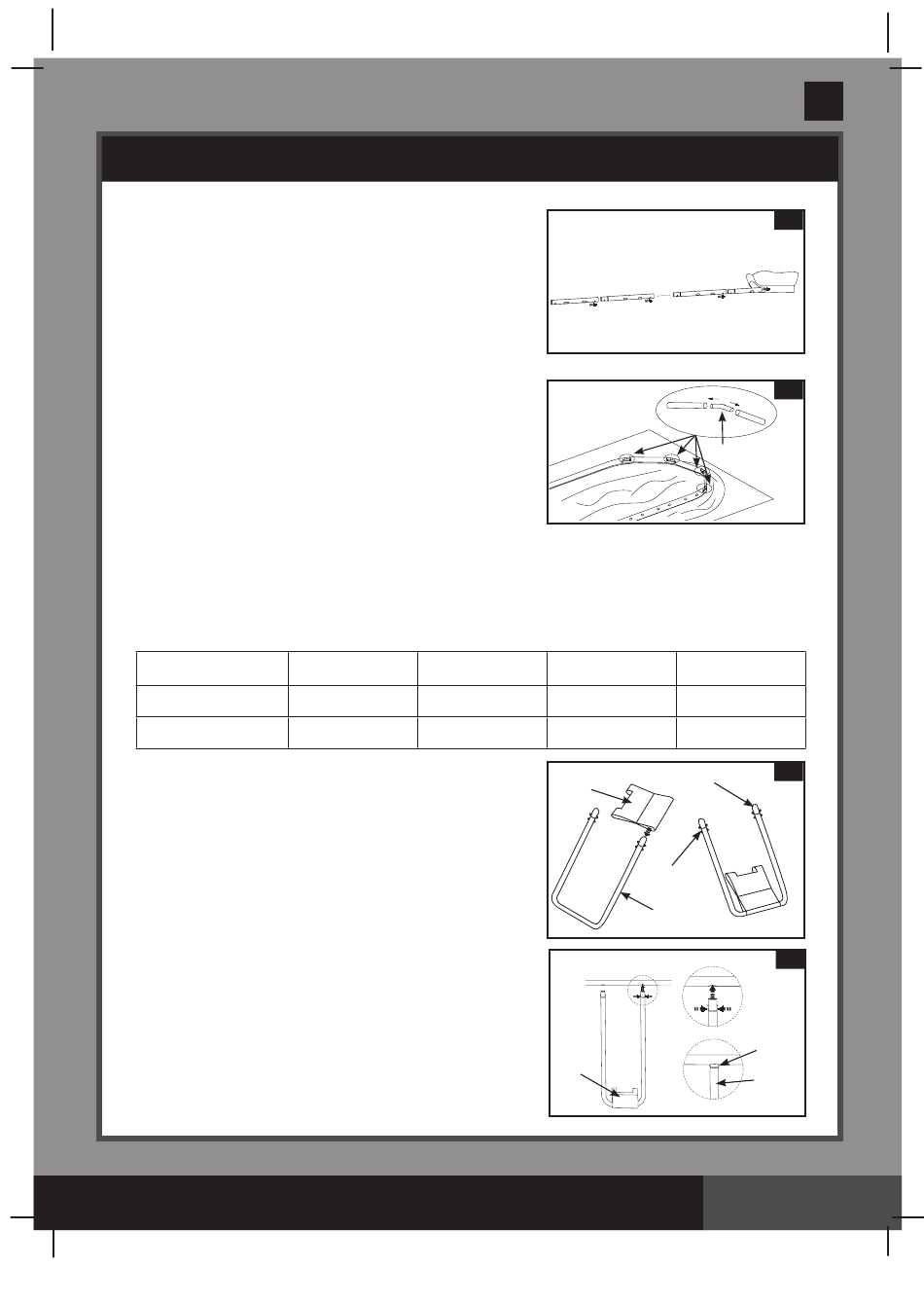

POOL SETUP ( continued )
3. • Be sure the liner is opened and spread out to its fullest
extent on top of the ground cloth. Starting with one side,
slide the "A" beams first into the sleeve openings located
in each corner. Continue with "B" beam snapping into the
"A" beam, and another "C" beam snapping into the "B"
beam (see drawing 3.1).
Keep the metal beam holes aligned with the white liner
sleeve holes.
Continue inserting all "A-B-C & D" beams into the sleeve
openings.
• Start the corner joint combination for the pool's short
sides by inserting a corner joint (6) into "A or C" beam
first, then slide a "D" beam into the sleeve opening and
over the corner joint (6). Continue inserting all the corner
joints and "D" beams (see drawing 3.2). (Be sure all
4 sides end up with the metal beam holes aligned with
the white liner sleeve holes.)
• The last joint connection may be difficult to complete.
You can do it though, if you first simultaneously raise
the last joint and beam about 2 inches (5 cm). Now insert the corner joint into the beam while
lowering the pieces into position. The corner joint will easily slide into the beam.
IMPORTANT: The eight corner joints are designed to be moveable relative to the horizontal
beams and not fixed to the horizontal beams. This allows the pool side walls to move inward
or outward when the pool is in use.
The combinations for beams are different for different sizes of pools, see the chart below for detail.
(Be sure all 4 sides end up with the metal beam holes aligned with the white liner sleeve holes.)
No. of "U-shape" Leg
Size of Pool
16.5' x 9' x 48"
(503cm x 274cm x 122cm)
20'x10'x48"
(610cm x 305cm x 122cm)
4. Slide the restrainer strap (11) onto the large U-shaped side
support (9). Repeat for all restrainer straps and U-supports
(see drawing 4).
IMPORTANT: The liner is to remain flat on the ground
during the next step #5. This is why 5 - 6' of clearance
space around the pool is necessary.
5. The tops of the U-shaped side supports h ave a double
button spring loaded clip (8) that is factory pre-installed.
Insert the side supports into the "A-B-C & D" beam holes
by squeezing the bottom button inward with your fingers.
Squeezing this bottom button will allow the support to enter
the beam. Once the U-support is inside the beam release
the finger pressure allowing the support to "SNAP" into
place. Repeat this procedure for all U-shaped side supports
(see drawing 5).
SAVE THESE INSTRUCTIONS
