Intex 28241EH Owner's Manual

Metal frame pool 8' - 24' 244 cm-732 cm
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual of Product 1:

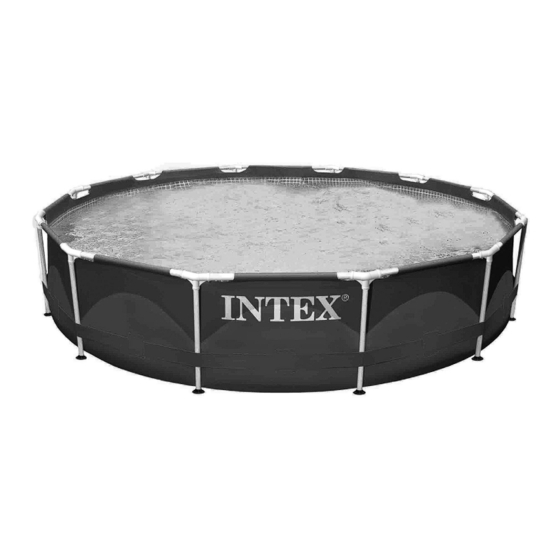

INTEX 28241EH Metal Frame Above Ground Swimming Pool
Set: 15ft x 48in – Includes 1000 GPH Cartridge Filter Pump –
Removable Ladder – Pool Cover – Ground Cloth, blue
User Manual of Product 2:
Intex 28003E Deluxe Pool Maintenance Kit for Above Ground
Pools

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28241EH and is the answer not in the manual?

Questions and answers

Related Manuals for Intex 28241EH

Summary of Contents for Intex 28241EH

  • Page 1 User Manual of Product 1: INTEX 28241EH Metal Frame Above Ground Swimming Pool Set: 15ft x 48in – Includes 1000 GPH Cartridge Filter Pump – Removable Ladder – Pool Cover – Ground Cloth, blue User Manual of Product 2: Intex 28003E Deluxe Pool Maintenance Kit for Above Ground...
  • Page 2 8' - 24' (244 cm - 732 cm) models For illustrative purposes only. Accessories may not be provided with pool. Don’t forget to try these other fine Intex products: Pools, Pool Accessories, Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine retailers or visit our website listed below.

  • Page 3: Table Of Contents

    Limited Warranty................19 Special Introductory note: Thanks for buying an Intex pool. Please read this manual before setting up your pool. This information will help extend the pool life and make the pool safer for your family's enjoyment. A team of 2-3 people is recommended for pool set up. Additional people will speed up the installation.

  • Page 4: Warnings

    (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Continuous and competent adult supervision of children and the disabled is required at all times. • Secure all doors, windows and safety barriers to prevent unauthorized, unintentional or unsupervised pool entry. • Install a safety barrier that will eliminate access to the pool for young children and pets. • Pool and pool accessories are to be assembled and disassembled by adults only. • Never dive, jump or slide into an above-ground pool or any shallow body of water. • Failure to set up pool on flat, level, compact ground or over filling could result in the pool’s collapse and the possibility that a person lounging in the pool could be swept out/ejected.
  • Page 5 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO IMPORTANT SAFETY RULES Read and follow all safety information and instructions. Keep for future reference. Failure to follow these warnings and instructions can result in serious injury or death to users, especially children. WARNING NO DIVING OR JUMPING PREVENT DROWNING...
  • Page 6 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO Barriers for Residential Swimming Pool Guidelines: An outdoor swimming pool, including an inground, aboveground, or onground pool, hot tub, or spa, should be provided with a barrier which complies with the following: 1. The top of the barrier should be at least 48 inches above grade measured on the side of the barrier which faces away from the swimming pool. The maximum vertical clearance between grade and the bottom of the barrier should be 4 inches measured on the side of the barrier which faces away from the swimming pool. Where the top of the pool structure is above grade, such as an aboveground pool, the barrier may be at ground level, such as the pool structure, or mounted on top of the pool structure. Where the barrier is mounted on top of the pool structure, the maximum vertical clearance between the top of the pool structure...

  • Page 7: Parts References

    (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. For Pools with Dual Suction Outlets Configuration: In order to comply with the requirement of the Virginia Grahame Baker Act (for USA and Canada), your pool is designed with dual suction outlets and one inlet fittings. Overview of the dual suction outlets configuration is as follow:...
  • Page 8 (87PO) ROUND METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 SAVE THESE INSTRUCTIONS Page 7...
  • Page 9 (87PO) ROUND METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 SAVE THESE INSTRUCTIONS Page 8...
  • Page 10 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. Non-USA & Canada: 16’ (488 cm) and below 18’...
  • Page 11 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO POOL SIZE & QUANTITIES DESCRIPTION 8’ 10’ 12’ 13’ 14’ 15’ 16’ 18’ 24’ (244cm) (305cm) (366cm) (396cm) (427cm) (457cm) (488cm) (549cm) (732cm) T - JOINT VERTICAL LEG LEG CAP HORIZONTAL BEAM POOL LINER (DRAIN VALVE CAP INCLUDED)

  • Page 12: Setup Instructions

    (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO POOL SETUP IMPORTANT SITE SELECTION AND GROUND PREPARATION INFORMATION WARNING • The pool location must allow you to secure all doors, windows, and safety barriers to prevent unauthorized, unintentional or unsupervised pool entry. • Install a safety barrier that will eliminate access to the pool for young children and pets. • Failure to set up the pool on flat, level, compact ground and to assemble and fill with water in accordance with the following instructions could result in the pool’s collapse or the possibility that a person lounging in the pool could be swept out/ejected, resulting in serious injury or property damage.
  • Page 13 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO POOL SETUP ( continued ) You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its own separate set of installation instructions. First assemble your pool unit and then set up the filter pump. Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate and individual assembly experience may vary.) 1. Liner preparation • Find a flat, level location that is free and clear of stones, branches or other sharp objects that may...
  • Page 14 (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO POOL SETUP (continued) 3. Vertical legs assembly • For 8’ x 20” (244 cm x 51 cm): Attach the leg’s end cap (3) to the bottom of each leg (2) first. With the beams and T-joints assembly resting on the ground, insert the top of the leg into the bottom of the T-joint (1) (see drawing 3.1). Continue the process with all the vertical legs.

  • Page 15: General Aquatic Safety

    (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions.

  • Page 16: Pool Maintenance & Chemicals

    Likewise with liquid chlorine; mix it immediately and thoroughly with the pool water. 2. Never mix chemicals together. Add the chemicals to the pool water separately. Thoroughly dissolve each chemical before adding another one to the water. 3. An Intex pool skimmer and an Intex pool vacuum are available to assist in maintaining clean pool water. See your pool dealer for these pool accessories. 4. D o not use a pressure washer to clean the pool. SAVE THESE INSTRUCTIONS...

  • Page 17: Pool Maintenance & Drainage

    Keep spare filter cartridges on hand. Replace cartridges every two weeks. We recommend the use of a Krystal Clear™ Intex Filter Pump with all of our above-ground-pools. To purchase an Intex Filter Pump or other accessories see your local retailer, visit our website or call the Intex Consumer Services Department listed in the separate "Authorized Service Centers" sheet and have your Visa or Mastercard ready.

  • Page 18: Winter Preparations

    5. Remove the hoses that connect the pump and filter to the pool. 6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to which chemicals you should use and how to use them. This can vary greatly by region. 7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: INTEX POOL COVER IS NOT A SAFETY COVER. 8. Clean and drain the pump, filter housing and hoses. Remove and discard the old filter cartridge. Keep a spare cartridge for the next season. 9. Bring pump and filter parts indoors and store in a safe and dry area, preferably between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).

  • Page 19: Troubleshooting

    • Repair with patch kit. WATER LEVEL on previous day. liner or hoses. • Finger tighten all caps. • Replace the hoses. SEDIMENT ON POOL • Dirt or sand on pool • Heavy use, getting in • Use Intex pool vacuum to BOTTOM floor. and out of pool. clean bottom of pool. SURFACE DEBRIS • Leaves, insects etc. • Pool too close to • Use Intex pool skimmer. trees.

  • Page 20: Limited Warranty

    (87PO) METAL FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/02/2020 English 87PO LIMITED WARRANTY Your Intex Pool has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies to the Intex Pool only. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable. This Limited Warranty is valid for the period noted below from the date of the initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase will be required and must accompany warranty claims or the Limited Warranty is invalid. Pool Liner and Frame Warranty - 1 Year If a manufacturing defect is found within this 1 Year period, please contact the appropriate Intex Service Center listed in the separate “Authorized Service Centers” sheet.
  • Page 21 Deluxe Pool Maintenance Kit For illustrative purposes only. Pool may not be provided. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website.
  • Page 22 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English TABLE OF CONTENTS Warnings................3 Parts List & Reference........... Pool Vacuum Set-Up Instructions......... 5-8 Pool Vacuum Operating Instructions......9 Hand-held Skimmer Assembly & Operating a Instructions and Long Term Storage......10 S AVE THESE INSTRUCTIONS Page 2...
  • Page 23 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Do not permit children to use this product. Adult use only. •...
  • Page 24 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. SPARE COMMON DESCRIPTION QTY. PART NO.
  • Page 25 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English SETUP INSTRUCTIONS Install the vacuum body Insert the debris bag (4), cover (5) onto the vacuum into the vacuum body (3). body (3). Turn the cover (5) clockwise to securely lock it to the vacuum body (3).
  • Page 26 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English SETUP INSTRUCTIONS (continued) Squeeze the spring tips (1) and Attach one end of the attach the telescoping aluminum vacuum hose (13) to the shaft (10) onto the vacuum vacuum body (3).
  • Page 27 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English SETUP INSTRUCTIONS (continued) Place the whole Fill up the vacuum hose (13) assembled product into the with water by submerging the water. hose into the water slowly to remove all of the entrapped air from the hose.
  • Page 28 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English SETUP INSTRUCTIONS (continued) Turn on the pump. To eliminate air trapped in the hose or in the pump system, turn the air release valve (if any) 1-2 turns to allow air to escape. Refer to the pump owner’s manual for details.
  • Page 29 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English POOL VACUUM OPERATING INSTRUCTIONS 1. The filter pump is an airtight system. To eliminate air trapped in the hose or in the pump, turn the air release valve (if any) 1-2 turns in a counter-clockwise motion to open the valve.
  • Page 30 (174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017 English HAND-HELD SKIMMER NET ASSEMBLY & OPERATING INSTRUCTIONS 1. The hand-held skimmer net uses the same handle as the pool vacuum. 2. The skimmer net (12) has a plastic spring that connects to the end of handle. Align the plastic spring located inside the net with the holes drilled in the handle.
