- Page 1 D E L IXI E L E CT R IC CDQ1F series three-stage automatic switching switch Instruction manual The product meets the standard: GB/T 14048.11-2016 IEC 60947-6-1 Before installing and using the product, please read the instruction manual carefully and keep it properly for backup.
-
Page 2: Scope Of Application
I. Product overview ● CDQ1F type automatic switch (hereinafter referred to as the switch), is a kind of emergency still continue to power supply switch, switch by the load switch (switch does not contain fuse or overcurrent/short circuit trip mechanism) and intelligent controller. It takes the latest microcomputer control system as the core, electromagnetic compatibility design, strong resistance to dry, long-term continuous work stable and reliable. -
Page 3: Technical Parameters

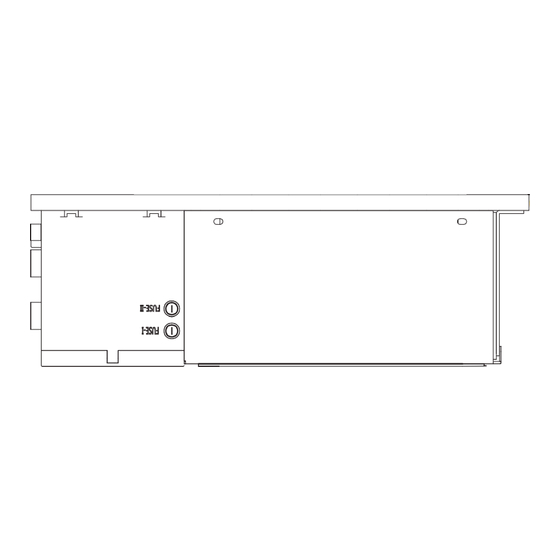

● Intelligent controller also provides a number of functions such as loss of voltage, undervoltage, overvoltage, conversion delay control, generator signal control, feedback signal, and strong anti-interference ability. ● It has three conversion modes of self-recovery, self-recovery and mutual backup. ●... - Page 4 Mounting dimension Overall dimension Bar size Size Type specification C-shape mounting dimensions Bar size Mounting dimension Overall dimension Size Type specification C-shape mounting dimensions...
- Page 5 Dimensions of copper bar connection holes Mounting dimension Overall dimension Bar size Size Back board Type specification C-type controller outline mounting dimensions Dimensions of the C-type split controller holes: 9. Three-stage switch structure and controller button, indicator function description Type C controller Type B controller Type A controller...
- Page 6 Type A switch structure Type B switch structure Type C switch structure...
- Page 7 Type A controller Bisection Test Reset Manual Test/run Auto Breakdown Bisection Inquire Setting Type B controller Test Reset Test/run Auto Breakdown Manual Type C controller Bisection Inquire Setting Reset Test Type A.B.C switch structure...
- Page 8 ⑥ Dip switch ① Digital display tube ① Common (1) Power supply switching indicator window standby (II) Power supply switching indicator window ⑨ Common (I) Power supply inlet port ② Standby (II) Power supply inlet port ① Load outlet port ② Arc extinguishing chamber ③ Ground screw ② Handle operation shaft West 3P zero line access terminal ①LCD LCD west fuse four user external port Indicator (2) "Two power Off"...
- Page 9 ② lon: commonly used (I) power supply closing indicator; ③ un: Standby (II) power indicator. If the indicator is on long, it indicates that the power supply is normal. If the indicator is blinking, it indicates that the power supply is normal Malfunction;...
- Page 10 CDQ1F series automatic switch (three-stage) Instruction manual Safety notification Before installation, operation, operation, maintenance, and inspection, please read this manual carefully, and install and use this product accurately according to the content in the manual. Danger: ● It is strictly prohibited to operate the automatic switch with wet hands;...
- Page 11 1, 2 wiring ports: commonly used (I) power supply closing indication, passive contact output 3, 4 wiring port: fire feedback signal (passive contact output) 5, 6 Wiring ports: standby (II) power supply closing indication, passive contact output 7, 8, 9 Wiring port: generator signal (passive),NC is the generator normally closed wiring port COM is the common cable port of the generator NO indicates the normally open cable port of...
-
Page 12: Switch Wiring Diagram
10. Switch wiring diagram Common Common Standby power Standby power power supply power supply supply supply (zero line: N) Switch 3p: zero line access switch zero 3P wiring diagram 3P wiring diagram Standby power Common power supply Note: When the switch is connected, supply do not misconnect the phase sequence. - Page 13 11.2 Controller Parameter Settings 11.2.1 Type A Controller Parameter Settings: Description of dip switch functions Fault confirmation delay Duration O FF Transient residence time 1 0 s 9 0 s Duration O F F Return acknowledge Duration ment delay OF F Conversi on mode You can't recover yourself...
- Page 14 出 厂值 Set range Type B Feature code Type A Type B Type C Type A Type B Type C Return acknowledgement delay 北 Can be set: The 0s-90s is adjustable 0s/1s/3s/58 (Type C: T3) Throw oneself in Throw oneself Dip switch eighth bit: and restore oneself 0 indicates self-recovery...
- Page 15 13. Analysis and elimination of conversion faults External environmental Non-conversion fault Failure causes are not translated Troubleshooting condition Press the hand, automatic Manual light The switch is in manual state key to make the switch in the automatic state The switch does The test/run light blinks The switch is in test condition Press reset...
- Page 16 Automatic switching appliance Name: Model: Certificate This product is allowed to leave of conformity factory after passing inspection Executive standard Inspector: See product nameplate Factory date For more information, please follow the wechat public account Add: Lixi High-tech Industrial Park, Liushi Town, Zip Code: Yueqing City, Zhejiang Province Tel:...
