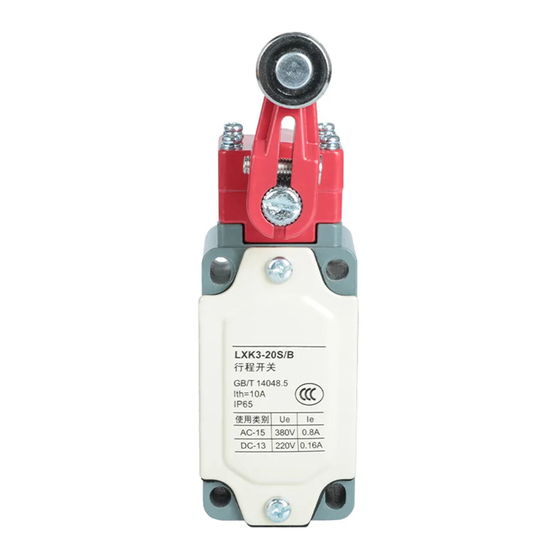

- Page 1 LXK3 Series Travel Switch User Manual □ Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference...
-
Page 2: Panel Introduction
If found damage or abnormal sound when unpacking, please stop the machine immediately and contact the supplier; ⚫ When scrapping the product, please dispose the product waste properly. Thanks for your cooperation. About LXK3 Series Travel Switch ● Panel Introduction Legends: 1. Hit head structure type 2. - Page 3 ● Hit head structure type and basic data Hit head structure type and basic data Product Model Hit head structure type Operating Aciton Reset force Stroke Full stroke force stroke or difference angle LXK3 − 20 Plunger type (1.7-2.2) ≤30N ≥5Н...
- Page 4 ● Normal Storage and Transport Conditions (1) Temperature: -25℃~+55℃; (2) Relative humidity: ≤90%; (3) During transport, please gently handle the product, do not upside the product down, and prevent harsh collision; Install products ● Outline and Installation Dimensions (1) LXK3-20S/B, T, D, J and H type outline and installation dimensions are shown in the figure and table Figure LXK3-20S/B, T, D, J and H type outline and installation dimensions Table LXK3-20S/B, T, D, J and H type outline and installation dimensions Unit: mm...
- Page 5 (2) LXК3 − 20 /w, Z, L type outline and installation dimensions are shown in the figure and table Table LXK3-20S/W, Z, L and LXK3-20S/W, Z, L type outline and installation dimensions Unit: mm Model (3) LXK3-20HI/B, T, D, J and H type outline and installation dimensions are shown in the figure and table...
- Page 6 Figure LXK3-20H/B, T, D, J and H type outline and installation dimensions Table LXK3-20H/B, T, D, J and H type outline and installation dimensions Unit: mm Product model Debugging and Operation (1) Check whether the technical parameters on the product nameplate meet the working requirements (2) Fix and tighten the product with screws.
- Page 7 (3) After installation, carefully check whether the hit head for blockage when pushing the hit head, and whether the switch core works within the specified range; if found fault, check it and re-install, and then connect the lead wire. (4) The lead wire selects 1~2 pieces of copper wire with a cross-sectional area of 0.75mm² ~1.5mm² . (5) Connect the lead wire according to the wiring diagram above the core (see Figure below);...
- Page 8 Inspector: Check 05 DELIXI ELECTRIC LTD Production date: See label on inner box Manufacturer: Zhejiang Delixi Electrical Co., Ltd. Address: Delixi High-Tech Industrial Park, Liushi Town, Yueqing City, Zhejiang P/C: 325604 Tel: (86-577) 61778888 Fax: (86-577) 61778000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
