Summary of Contents for Delixi KG816B

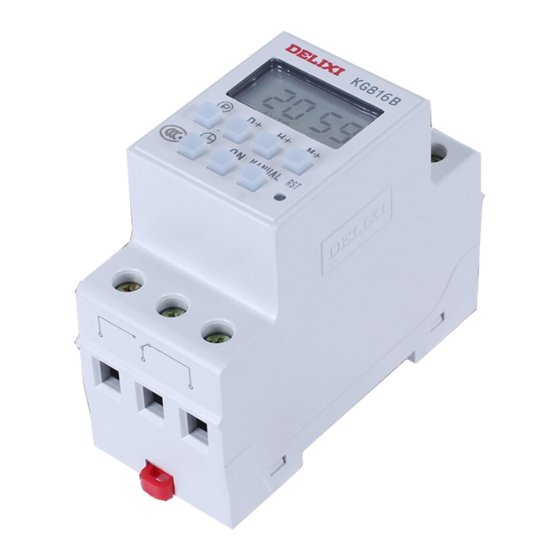

- Page 1 KG816B Time Control Switch Operation Instructions Before installing and using the product, please read the instructions carefully and keep it properly.
- Page 2 II. Structure Specification KG816B Display screen Week setting key Hour setting key...
- Page 3 III. Technical Characteristics 3.1 Rated insulation voltage Ui: AC380V; 3.2 Rated impulse withstand voltage Uimp: AC1.5kV; 3.3 Under the use category each rated working voltage Ue/Rated operating current le: AC-15Ue/le: AC240V/3A; Ue/le: AC380V/1.9A; 3.4 Agreed heating current Ith: 10A; 3.5 Rated control power supply voltage Us: ac50/60hz: 220V, 380V; 3.6 Pollution level: 3;...
- Page 4 IV. Product Shape, Installation Dimensions and Wiring Diagram Unit: mm Live wire Null line KG816B KG816B H+ M+ ON MANUAL RST H+ M+ ON MANUAL RST 70Max 37Max Load line V. Installation and Operation 5.1 If it is used for the first time or not used for a long time, and the time control switch is not displayed, please press the “RST”...
- Page 5 5.4.2 Manual control can be turned on and off as desired by pressing “MANUAL”. 5.5 Timing Setting Steps ① When the state is locked, press “ ” twice to unlock it quickly; ② Press to display “1ON”and “--:--” to set the first group opening time;...
- Page 6 VI. Operation Cautions 6.1 The setting of time control on and off time cannot be cross-set, and should be set in order of time; 6.2 Please do not use the product in place where it is dusty, or has corrosive gas, direct sunlight or rain;...
- Page 7 7.5 Troubleshooting When the product fails, first disconnect the power supply and connect it correctly according to the wiring diagram. After checking the line is correct, follow the operation cautions for operation. If the quality of the product is indeed a problem, please contact the local distribution company or our company.
- Page 8 Certificate of inspection. Qualification Inspector: Inspection Date: See the inner box label Manufacturer: DELIXI GROUP CO., LTD. 155 zhandong Road, Liushi Town, Yueqing City, Zhejiang Province, Zip Code: 325604 Tel: (86-577)61778888 Fax: (86-577)61778000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
