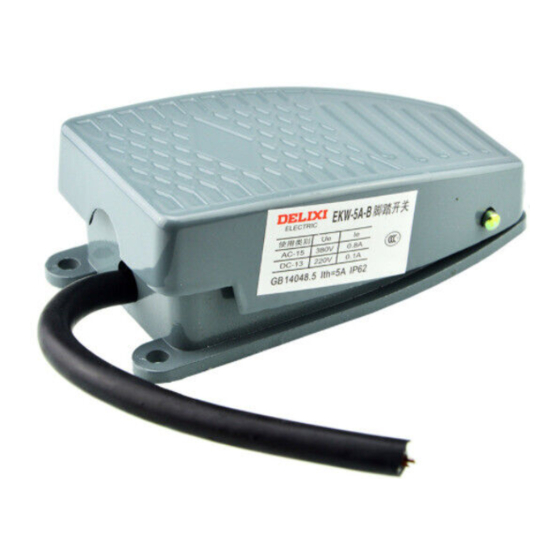

EKW-5A-B Foot Switch
User Manual
□ Please carefully read this User Manual before
installing and operating the product, and keep this
manual properly for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKW-5A-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Delixi EKW-5A-B

  • Page 1 EKW-5A-B Foot Switch User Manual □ Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference...
  • Page 2 LX10 Series Travel Switch User Manual Safety Notice Please carefully read this instruction before the installation, operation, run, maintenance, and inspection, and follow the contents of the instruction to properly install and operate this product. Danger: ⚫ Do not operate the travel switch with wet hands; ⚫...
  • Page 3 About LX10 Series Travel Switch ● Panel Introduction Legends: 1 company logo; 2 Basic parameters: AC-15 Ue: 380V Ie:1.9А; DC-13 Ue: 220V Ie:1.1А; 3 Standard: GB/T14048.5; 4 Hit head structure; 5 Product model; 6 3C mark; 7 Protection grade: IP62 (after installation); 8 Resistive current in free air is Ith=10A.
  • Page 4 Normal Operation, Installation and Transport Conditions ●Normal operation and installation conditions (1) The ambient air temperature is not higher than +40℃, and is not below -5℃; the average value within 24 hours does not exceed +35℃; (2) The altitude of the installation site does not exceed 2000m; (3) The relative humidity of the atmosphere does not exceed 50% at the maximum ambient temperature of +40℃, and a higher relative humidity is allowed at lower temperatures, such as 90% at 20℃.
  • Page 5 LX10-11, 12 LX10-21, 22...
  • Page 6 LX10-31, 32 ●Debugging and operation (1) Check whether the technical parameters on the product nameplate meet the working requirements. (2) Fix and tighten the product with screws. (It is recommended that spring washers and flat gaskets are used). (3) After installation, please carefully check the Hit headfor blockage when being pushed and whether the switch core works within the specified range;...
  • Page 7 Fig. 2 ON/OFF indicator formed by each circuit of LX10 − type travel switch Maintenance and Service ⚫ The installation, maintenance and service shall be performed by the qualified professional; ⚫ The product shall be de-energized during the maintenance and servcie; ⚫...
  • Page 8 Inspector: Check 05 DELIXI ELECTRIC LTD Production date: See label on inner box Manufacturer: Zhejiang Delixi Electrical Co., Ltd. Address: Delixi High-Tech Industrial Park, Liushi Town, Yueqing City, Zhejiang P/C: 325604 Tel: (86-577) 61778888 Fax: (86-577) 61778000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
