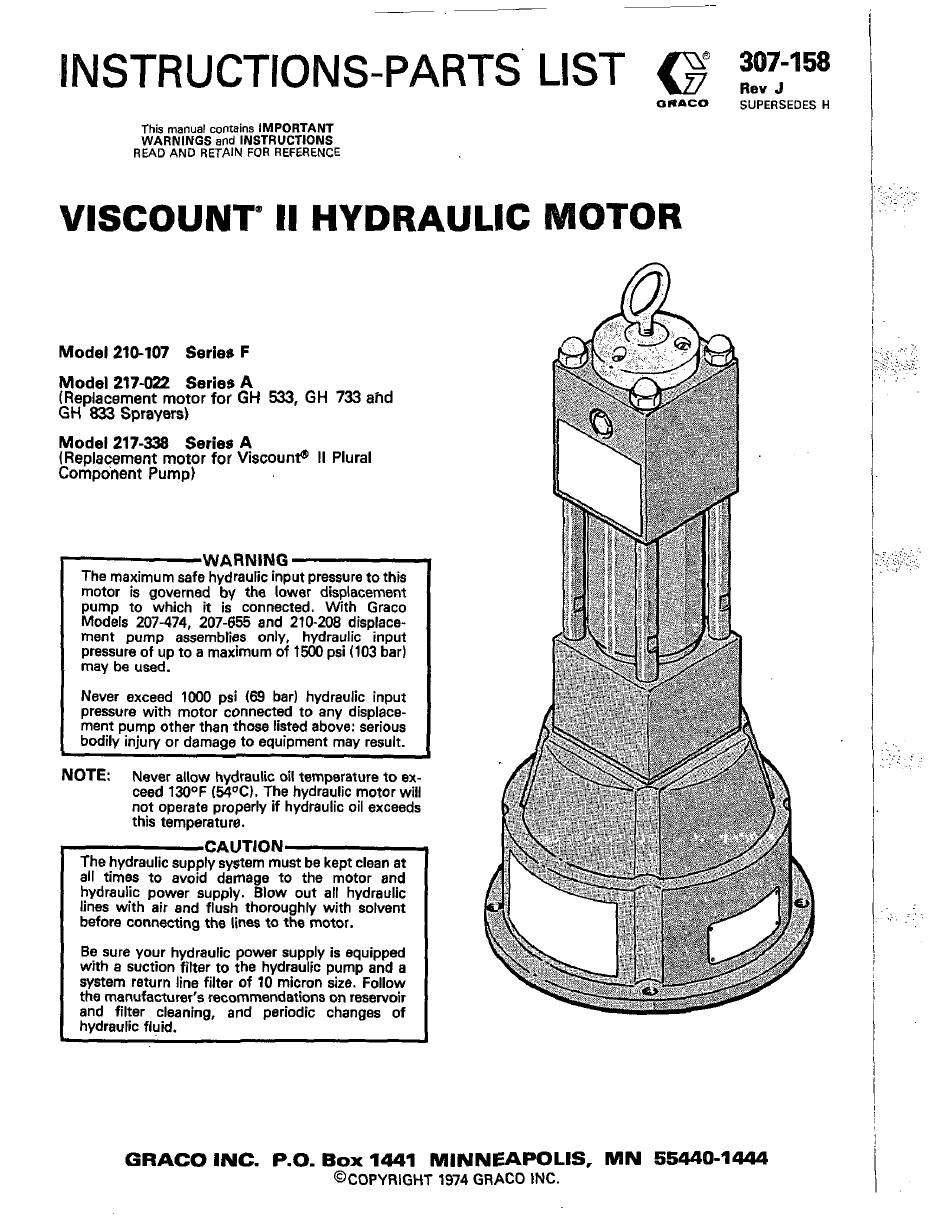

INSTRUCTIONS-PARTS' LIST @
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE

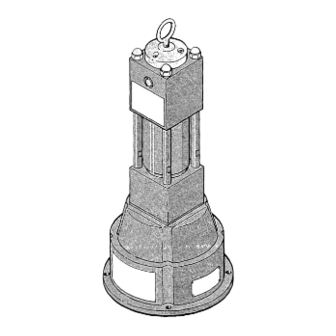

VISCOUNT II HYDRAULIC
Model 210-107 Series F
Model 217-022 Series A
GH
833
Sprayers)
(Replacement motor
for GH
5 3 3 ,
GH 733
ahd
Model 217-338 Series A
(Reolacement motor for Viscount@
II
Plural
Component Pump)
WARNING
The maximum safe hydraulic input pressure to this
motor is governed by the lower displacement
Models 207-474, 207-655
and 210-208 displace-
pump to which
it
is connected. With Graco
rnent pump assemblies only, hydraulic input
pressure of up to a maximum of 1500 psi (103 bar)
may be used.
Never exceed 1000 psi (69 bar) hydraulic input
ment pump other than those listed above: serious
pressure with motor connected to any displace-
bodily injury or damage to equipment may result.
NOTE:
Never allow hydraulic oil temperature to ex-
not operate properly if hydraulic oil exceeds
ceed 130OF (!%PC). The hydraulic motor will
this temperature.
The hydraulic supply system must be kept clean at
CAUTION
all times to avoid damage to the motor and
lines with air and flush thoroughly with solvent
hydraulic power supply. Blow out all hydraulic
before connecting the lines to the motor.
Be sure your hydraulic power supply
is
equipped
with e suction filter to the hydraulic pump and a
system return line filter of 10 micron size. Follow
the manufacturer's recommendations on reservoir
and filter cleaning, and periodic changes of
hydraulic fluid.
1
307-1 5%
Rev
J
SUPERSEDES H
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1444
@COPYRIGHT 1974 GRACO INC.
