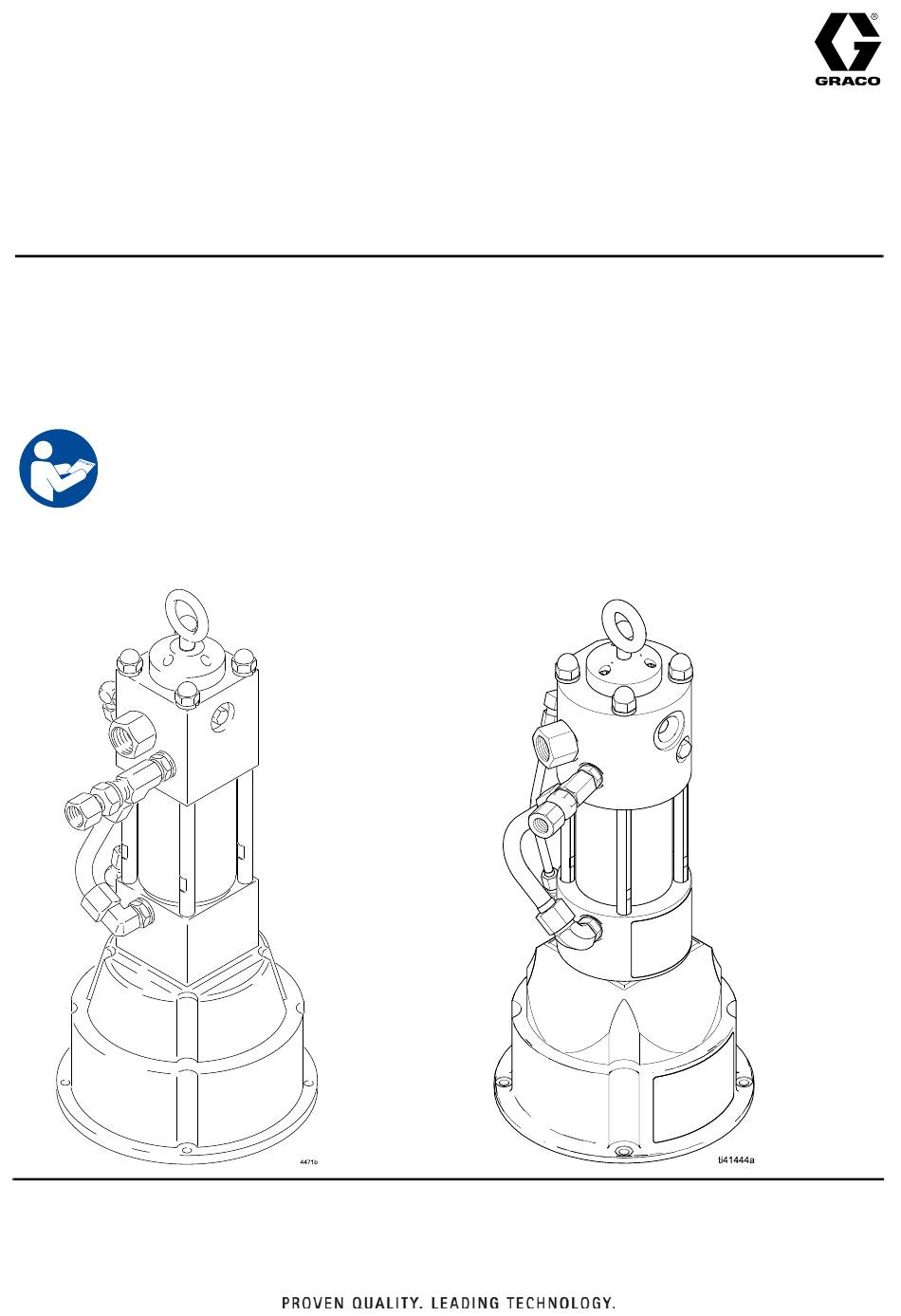

Instructions – Parts List
Viscount
Hydraulic Motor
Reciprocating hydraulic motor for use with Graco high-performance coating pumps. For
professional use only.
See page 3 for model information, including maximum hydraulic fluid input pressure.
Important Safety Instructions
Read all warnings and instructions in this manual
before using the equipment. Save these
instructions.
Model 235345
Series B
®
II
Model 235435
Series C
307158ZAP
EN
Advertisement
Table of Contents
Related Manuals for Graco Viscount II
Summary of Contents for Graco Viscount II
- Page 1 ® Viscount Hydraulic Motor 307158ZAP Reciprocating hydraulic motor for use with Graco high-performance coating pumps. For professional use only. See page 3 for model information, including maximum hydraulic fluid input pressure. Important Safety Instructions Read all warnings and instructions in this manual before using the equipment.
-
Page 2: Table Of Contents
Notes ........29 Graco Standard Warranty ....30... -
Page 3: Models
Models IMPORTANT The design of the Viscount II hydraulic pump upper and lower motor housings has been updated. The cylindrical design replaces the square housing design previously used. There is no performance change associated with this update. If replacement of a square housing is necessary, both the upper and lower housings must be converted to the cylindrical design as it is not backwards compatible. -
Page 4: Warnings
Check hoses and couplings daily. Replace worn or damaged parts immediately. • Use only Graco approved hoses. Do not remove any spring guard that is used to help protect the hose from rupture caused by kinks or bends near couplings. - Page 5 Warnings WARNING MOVING PARTS HAZARD Moving parts can pinch, cut or amputate fingers and other body parts. • Keep clear of moving parts. • Do not operate equipment with protective guards or covers removed. • Equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure and disconnect all power sources.
-
Page 6: Installation
For Graco Displacement Pump Models 24B923 and Recommended Hydraulic Oil 687055, usa a maximum of 1900 psi (13.1 MPa, 131 Use Graco-approved Hydraulic Oil, Part No. 169236 (5 bar) hydraulic input pressure. gal) or 207428 (1 gal)) or a premium, ISO grade 46... -
Page 7: Grounding
Refer to the complete pump manual for detailed • To maintain grounding continuity when flushing or installation information or contact your Graco relieving pressure, always hold a metal part of the distributor. gun firmly to the side of a grounded metal pail, and NOTE: A 1 in. -
Page 8: Service
Service Service Pressure Relief Procedure for example (25*), indicates that the part is included in the repair kit. 3. Clean all parts as you disassemble them and inspect them for wear or damage. Replace parts as necessary. Disassembly (Refer to Fig. 3) The system pressure must be manually relieved to NOTE: Use all the replacement parts that are in the prevent the system from starting or spraying... - Page 9 Service Disassembly (continued -- refer to Fig. 3) 8. For Models 217022, 217338, 262818, and 24W139, 18. Pull the trip rod and piston from the lower housing loosen, but do not remove, the four tie rod nuts (3) (41) and cylinder (39). Place the piston flats (49a) in and the nuts (B) on the hydraulic tube (48).
- Page 10 NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing piston (49a), retainer (49b), and retaining ring (49c) together in kits appropriate to motor configurations. See pages 14, 22, 24, or 26 depending on model . 3 _________________________________________ __...
-
Page 11: Reassembly (Refer To Fig. 4)
(3) to 70--80 ft-lb (95--108 . 4 ___________________________________________ N.m). NOTE: Graco recommends replacing piston (49a), retainer For Model 235345 and 24W139, torque tie rods into (49b), and retaining ring (49c) together in kits appropriate base, apply thread sealant, then torque the tie rod to motor configurations. - Page 12 Service 18. Snugly tighten the compression nuts on the hydraulic 19. Install the motor on the displacement pump. tube (48) and torque to 60--80 ft-lb (81--108 N.m). Reconnect all fluid lines. Be sure the ground wire is connected before operating the pump. Note: Square housings shown Rings must be positioned with joints opposed...
-
Page 13: Parts - Square Housings
Model 217022, Series E 23a* NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in kit 26C141. 307158ZAP... -
Page 14: Model 217022, Series E
105430 NUT, seal, 1 in. npt supplied in a plastic bag These parts are also included in Repair Kit 18B078, which may be purchased separately. Graco recommends replacing 49a, 49b, and 49c all together in kit 26C141. Items marked ------ are not available separately. -
Page 15: Model 217338, Series F
Model 217338, Series F 49c* 49b* *49a 61, 62 NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. 4465c NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C141. 307158ZAP... - Page 16 116343 GROUNDING LUG These parts are also included in Repair Kit 220457, which may be purchased separately. Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C141. Items marked ------ are not available separately. 307158ZAP...
-
Page 17: Model 235345, Series B
Model 235345, Series B 7 27 49c* 49b* *49a NOTE: See the service section for important torque and lubrication information. ti32531c NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C142. 307158ZAP... - Page 18 These parts are also included in Repair Kit 223654, which 108522 SPRING, helical compression may be purchased separately. 165295 O-RING, nitrile rubber Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C142. Replacement safety labels, tags, and cards are ...
-
Page 19: Model 262818, Series B
Model 262818, Series B Model 24W139, Series B NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C139. 307158ZAP... - Page 20 These parts are also included in Repair Kit 223654, 110876 ADAPTER, 1 --11-1/2 npt x1 which may be purchased separately. 5/16--12un--2a, Includes item 14a Graco recommends replacing 49a, 49b, and 49c all 110927 O-RING, nitrile rubber together in Kit 26C139. 177756 LABEL, identification (not shown) Items marked ------ are not available separately.
-
Page 21: Parts - Cylindrical Housings
Parts - Cylindrical Housings Модель 217338 Model 217338, Series G NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C141. 307158ZAP... -
Page 22: Model 217338, Series G
116343 GROUNDING LUG These parts are also included in Repair Kit 220457, which may be purchased separately. Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C141. Items marked ------ are not available separately. 307158ZAP... -
Page 23: Model 235345, Series C
Parts - Cylindrical Housings Model 235345, Series C NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C142. 307158ZAP... - Page 24 108522 SPRING, helical compression These parts are also included in Repair Kit 223654, which 165295 O-RING, nitrile rubber may be purchased separately. Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C142. Replacement safety labels, tags, and cards are ...
-
Page 25: Model 262818, Series C
Модель 262818 и 24W139 Model 24W139, Series C NOTE: See the service section for important torque and lubrication information. NOTE: Circled letters refer to connected points. NOTE: Graco recommends replacing 49a, 49b, and 49c all together in Kit 26C139. 307158ZAP... - Page 26 These parts are also included in Repair Kit 223654, 5/16--12un--2a, which may be purchased separately. Includes item 14a 110927 O-RING, nitrile rubber Graco recommends replacing 49a, 49b, and 49c all 177756 LABEL, identification (not shown) together in Kit 26C139. 100508 SCREW, type “u” drive, No. 4 x Items marked ------ are not available separately.
-
Page 27: Mounting Hole Layout
Mounting Hole Layout Mounting Hole Layout Model 217022 7.2 in 3.5 in. (182.8 mm) (88.9 mm) 8.1 in. 0.641 in. (205.7 mm) (16.3 mm) Model 217338 0.438 in. 11.28 in. (11.1 mm) (286.5 mm) 04469 7.42 in. (188.4 mm) Model 235345 0.438 in. -
Page 28: Technical Data
Technical Data Technical Data Viscount Hydraulic Motor Metric Maximum hydraulic fluid input pressure Also see the WARNING on page 6. Models 217022, 217338, 235345 1500 psi 10 MPa, 103 bar Model 262818 1800 psi 12 MPa, 124 bar Model 24W139 1900 psi 13.1 MPa, 131 bar Maximum hydraulic fluid flow 12 gpm 45.6 liter/min Hydraulic fluid consumption... -
Page 29: Notes
Notes Notes 307158ZAP... -
Page 30: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
