Related Manuals for CDA FF881
Summary of Contents for CDA FF881

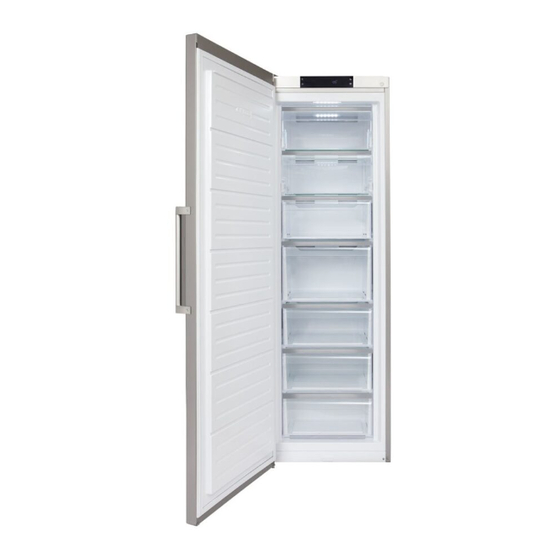

- Page 1 FF881 Freestanding full height frost free freezer Use and maintenance www.cda.co.uk...
-
Page 2: Table Of Contents
Contents: Important information Before first use Important safety notes Freezer use Energy saving tips Food storage suggestions Freezer layout and storage Control panel layout Setting the temperature Super freeze mode Stand-by mode Temperature setting warnings Important installation instruction note Fridge storage and accessories Maintenance, care and cleaning Troubleshooting Installation and ventilation... - Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number...
-
Page 4: Important Information
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH WEEE DIRECTIVE 2012/19/EU. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. -
Page 5: Important Safety Notes
• This refrigeration appliance is not intended for use as a built in appliance. • When you first switch on the appliance, you should ideally run it without any contents for the first 24 hours and not open the appliance doors. If you need to use it straight away, try not to put a large quantity of food inside. - Page 6 • Cleaning and user maintenance must not be made by children without supervision. • If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. WARNING - Keep ventilation openings clear of obstruction. WARNING - Do not use mechanical devices or other means to accelerate the defrosting process.
-
Page 7: Freezer Use
transportation and installation to prevent the cooling system elements from being damaged. R600a is an environmentally friendly and natural gas, but is explosive. In the event of a leak due to damage to the cooling system, move your freezer away from open flames or heat sources and ventilate the room in which the appliance is located for 5 minutes. - Page 8 • Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible. • Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
- Page 9 capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer. • After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. ”Super Freeze” mode will be deactivated automatically in 2-3 days to save energy. If you would freeze a small amount (upto 3 kg) in your freezer: •...
- Page 10 Meat and fish Preparation Maximum storage time (months) Steak Wrap in foil Lamb meat Wrap in foil Veal roast Wrap in foil Veal cubes In small pieces Lamb cubes In pieces Minced meat In packaging without using spices Giblets (pieces) In pieces Bologna sausage/salami Should be kept packaged even if...
- Page 11 Vegetables and fruits Preparation Maximum storage time (months) String beans and beans Wash, cut into small pieces and boil 10-13 in water Beans Hull, wash and boil in water Cabbage Clean and boil in water Carrot Clean, cut into slices and boil in water Pepper Cut the stem, cut into two pieces,...
- Page 12 Maximum storage Thawing time at Thawing time in time (months) room temperature oven (minutes) (hours) Bread 4-5 (220-225 °C) Biscuits 1-1.5 5-8 (190-200 °C) Party 5-10 (200-225 °C) 1-1.5 5-8 (190-200 °C) Phyllo dough 1-1.5 5-8 (190-200 °C) Pizza 15-20 (200 °C) Dairy products Preparation Maximum...
-
Page 13: Freezer Layout And Storage
Freezer layout and storage Control panel Freezer bottom drawer Freezer flaps Freezer big drawer Freezer drawers Ice tray... - Page 14 No-frost technology No-frost freezers differ from other static freezers in the way they operate. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer...
-
Page 15: Setting The Temperature
Setting the temperature The default temperature for the freezer at first switch on should be -18°C. To adjust the temperature: • Press the freezer setting button once to decrease the temperature. • Every time you press the button, the temperature will increase. (-16 °C, -18 °C, -20 °C, Super freezing) •... -
Page 16: Stand-By Mode
Note: The super freeze mode will cancel automatically after 54 hours depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.. Stand-by mode Stand-by mode will disable all components, if you the set button is pressed whilst in stand-by mode, all LEDs will blink three times to indicate that stand-by mode is active. - Page 17 appliance and the ambient temperature in the location of your appliance. • When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside. •...
- Page 18 Freezer storage and accessories Ice tray Fill the ice tray with water and place in the freezer compartment. After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.
-
Page 19: Maintenance, Care And Cleaning
Maintenance, care and cleaning Always disconnect the appliance from the power before ANY cleaning or maintenance. • Leave spaces between food items wherever possible to allow air to flow between them. Do not allow food items or containers to touch the rear or side walls of the appliance, nor obstruct the fan. •... - Page 20 Clean it with soapy water at specific time intervals. This will prevent odours from forming. Changing the light bulb To replace any of the LEDs, please contact the CDA Customer Care department. • If the appliance is equipped with an LED lamp, this light source is an energy efficiency class <E>.
-
Page 21: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. Contact details for CDA Customer Care are on the rear cover of this manual. - Page 22 Issue Check / Explanation Appliance is not • There is power operating • The plug is correctly placed in the socket • The plug fuse or the mains fuse has blown • The socket is defective. To check this, plug another working appliance into the same socket Appliance is •...
- Page 23 In the event of your appliance requiring technical assistance and/ or spare parts, please contact CDA Customer Care. In this case it is necessary to state all the appliance data on the rating plate, such as model, serial number etc.
- Page 24 • If a problem persists after you have followed all the above instructions, please contact the CDA customer care department. • The appliance you have purchased is designed for domestic use only.
-
Page 25: Installation And Ventilation
Installation and ventilation When installing this product we recommend you seek the help of another individual. This product may have some sharp edges. Please take care and wear adequate PPE when handling. This appliance must never be installed close to heat sources such as heating elements, radiators, ovens and cookers nor installed in damp places or direct sunlight. - Page 26 Before using your freezer for the first time, please pay attention to the following points: The operating voltage for your freezer is 220-240 V at 50Hz. • The plug must be accessible after installation. • Your freezer may have an odour when it is operated for the first time.
- Page 27 • Do not cover the body or top of freezer with lace. This will affect the performance of your freezer. • Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance. •...
-
Page 28: Electrical Information
N.B. Ensure that the plug socket is situated in an easily accessible place. If the power supply cable or plug is damaged, it must be replaced by a CDA authorised agent. If the plug socket does not match the refrigerator plug, it must be replaced by the manufacturer or an authorised service agent in order to avoid a hazard. - Page 29 The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a fuse in this type of plug, follow the steps below: 1. Remove the fuse cover and fuse. 2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
- Page 30 When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it. This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it. Notes...
- Page 31 Notes...
- Page 32 01949 862 012 or email customer.care@cda. co.uk For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.co.uk Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.co.uk...
