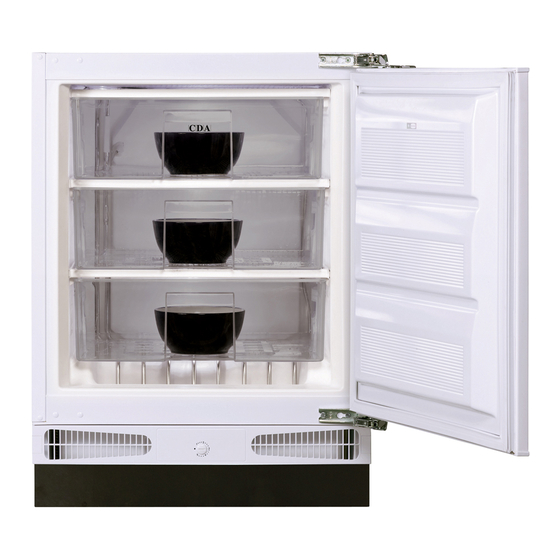

- Page 1 FW381 Integrated under counter freezer Use and maintenance...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 CE Declarations of Conformity: This appliance has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
- Page 4 Important Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products. To prevent risk of fire, keep the appliance away from petrol or any other inflammables.
-
Page 5: Before First Use
Before First Use You must allow the freezer to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. - Page 6 Freezer • The freezer compartments are designed to store only frozen food • Never put hot foods in the freezer, allow food to cool fully before storing them in the freezer • Follow the instructions on the food packaging for storage of frozen food.
-
Page 7: Control Panel
Control panel Thermostat dial The thermostat can be set between (least cold and 5 (coldest) When introducing large amounts of fresh food into the freezer, turn the thermostat dial to position 5. After 24 hours, return the thermostat dial to its usual position. -
Page 8: Defrosting The Freezer
Defrosting the freezer • Do not use heaters or defrosting sprays in this appliance. • Never use any metallic or sharp objects such as knives or forks to remove the ice as this could damage the lining. • The freezer compartment should be defrosted regularly to en- sure the most efficient running of the freezer. -
Page 9: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. The appliance is not working • Check there is power to the appliance: •... -
Page 10: Installation
Installation This appliance must never be installed close to heat sources i.e. heating elements, radiators, cookers or in damp places. The appliance should be mounted on a piece of wood (for example a section of worktop or kitchen carcass) if a raised floor is to be fitted, if the kitchen floor is to be tiled after installation, or if the installation height of the appliance is greater than 850 mm. - Page 11 Fig. 4 - Dimensions of the appliance 820- 819- 100- 170 min 25 fig. 4 Fig. 5 - Fitting the worktop bracket Remove the screw (5) on the top of the appliance, locate the top bracket(6) and fix the bracket with screw(5). fig.
- Page 12 Fig. 7 - Adjusting the appliance height The height of the appliance can be adjusted by the help of adjustable feet to fit the furniture height. Use a spirit level to ensure the appliance is level. fig. 7 Fig. 8 - Aligning the appliance Slide the appliance into the kitchen unit and align the hinge surface with front surface of the kitchen unit.
- Page 13 Fig. 10 - Fitting the decor door bracket Unscrew and remove the nuts and fig. 10 washers from the appliance door. Place fixing bracket on the appliance door by inserting the holes to adjustment bolts. Dimension B= Measure from the underside surface of kitchen unit to the bottom of fixing bracket.
- Page 14 Fig. 12 - Fitting the decor door Place the decor door onto the appliance door by inserting adjustment bolts into the slots on the fixing bracket. Locate the washers and screw the nuts onto the adjustment bolts. fig. 12 Fig. 13 - Aligning the decor door Close the door and check the alignment with the other unit doors.
- Page 15 Fig. 15 - Fitting the decorative cover Fit the decorative cover (4) on the decor door fixing bracket. fig. 15 Fig. 16 - Fitting the plinth Fit the plinth section, providing minimum 25 mm gap between the cabinet door and fix it. Never cover over the ventilation slots.
-
Page 16: Reversing The Door
Reversing the door It is possible to reverse the door on this appliance, if required. To do so, follow the steps below: 1. Open the door. 2. Loosen the hinge fixing screws (1) and remove the door. 3. Remove the door fixing screws (2). 4. -
Page 17: Electrical Information
Electrical Information Warning! This appliance must be earthed. Green and yellow to earth Brown to live 13A Fuse Cord Clamp Blue to Neutral The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. - Page 18 Do not shorten the supply cable, the appliance may require removing for servicing. N.B. Ensure that the plug socket is situated in an easily accessible place. If the power supply cord is damaged, it must replaced by a CDA authorised agent.
-
Page 19: Climate Range
Climate range The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is room temperature in which the appliance is working) is optimal for the operation of the appliance. Climate class Allowable ambient temperature Extended Temperate... -
Page 20: Warranty And Service
Warranty and service The manufacturer shall not be held liable for any damage caused by improper use of the product. • Repairs carried out by unqualified persons may seriously endanger the appliance user • Pursuant to Commission Regulation (EU) 2019/2019, The minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part... - Page 21 Notes...
- Page 22 Notes...
- Page 23 Notes...
- Page 24 The CDA Group Harby Road Langar Nottinghamshire NG13 9HY Sales Department Phone: 01949 862010 Email: sales@cda.eu CDA Customer Care Phone: 01949 862012 Email: customer.care@cda.eu ©2020 CDA Group Ltd...
