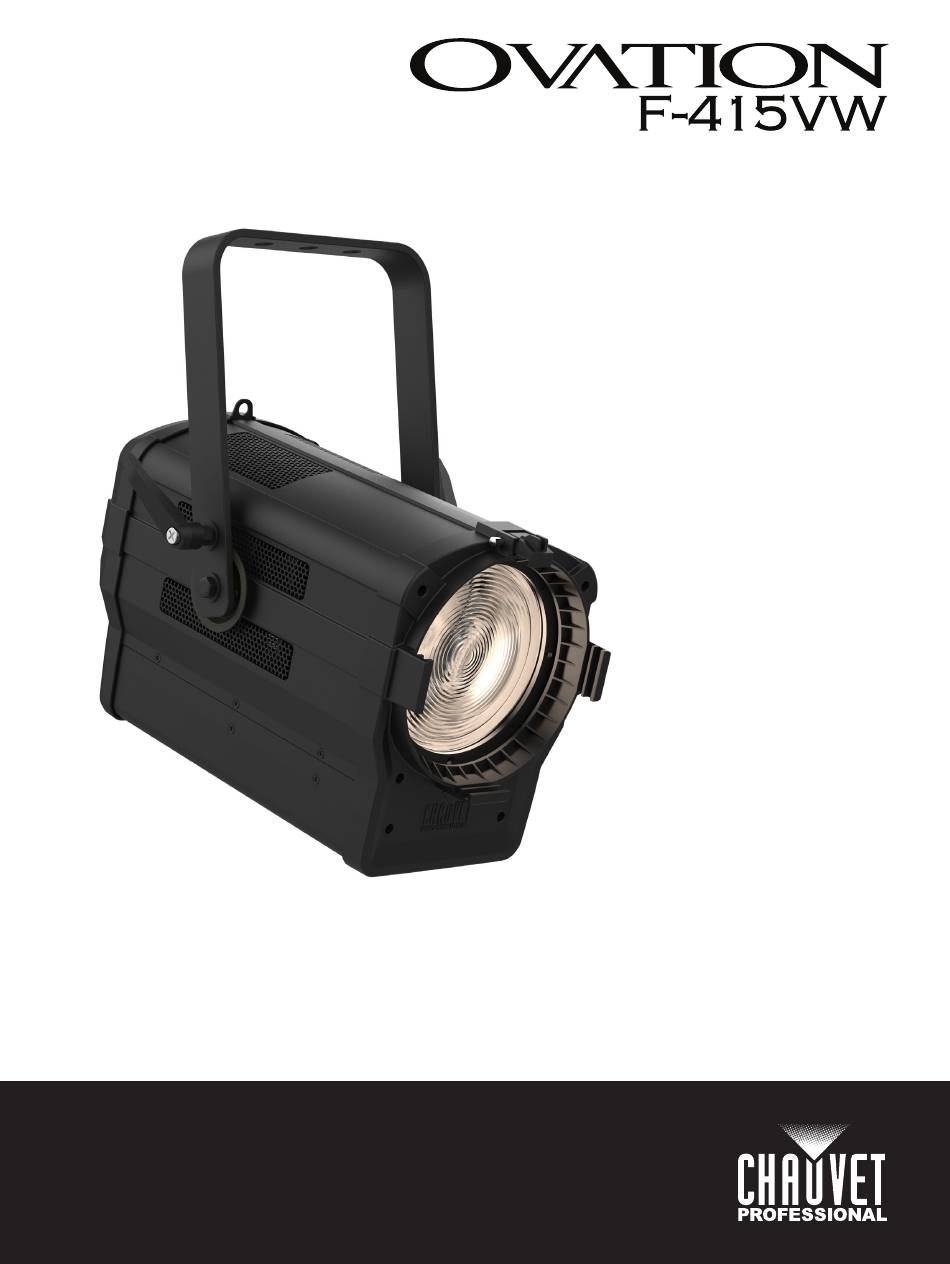

- Page 1 User Manual Model ID: OVATIONF415VW-2...
-
Page 2: Edition Notes
Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Ovation are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 1 Claims ......................1 Manual Conventions ..................1 Symbols ......................1 Safety Notes....................2 FCC Statement of Compliance ..............3 RF Exposure Warning for North America and Australia........ 3 Expected LED Lifespan................. - Page 4 Table of Contents Back Light ........................System Information ......................Zoom Reset........................Factory Reset......................... Error Codes....................15 5. Maintenance................Product Maintenance ..................16 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................19 Ovation F-415VW User Manual Rev. 1...
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Ovation F-415VW-2 • Gel frame holder (6.25 in/159 mm accessories) • Seetronic Powerkon IP65 power cable • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction
Introduction 2. Introduction Features • Operating modes: • 1-channel: dimmer • 4-channel: dimmer, color temperature, hue, zoom • 6-channel: dimmer, 16-bit dimmer, color temperature, hue, zoom, strobe • 7-channel: red, orange, green, royal blue, blue, lime, zoom • 9-channel: dimmer, red, orange, green, royal blue, blue, lime, strobe, zoom •... -
Page 9: Product Dimensions
Introduction Product Dimensions 13.90 in 353 mm 7.76 in 197 mm 15.04 in 382 mm 9.53 in 242 mm 9.53 in 242 mm 11.22 in 285 mm Ovation F-415VW User Manual Rev. 1... -
Page 10: Setup
Setup 3. Setup AC Power Each Ovation F-415VW has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation F-415VW, refer to the label affixed to the product or to the Technical Specifications chart in this manual. -
Page 11: Master/Slave Connectivity
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For CHAUVET Professional line of mounting clamps, go to: http://trusst.com/products/. Orientation Always mount this product in a safe position, ensuring that there is adequate room for ventilation, configuration, and maintenance. -
Page 12: Operation
Operation 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in to the <ENTER> current function Navigates upward through the menu list or increases the numeric value when in a <UP>... -
Page 13: Menu Map
Operation Menu Map Main Level Programming Levels Description Selects DMX address (*highest channel 001–512* Address restricted to personality chosen) 1-channel: dimmer 4-channel: dimmer, color temperature, hue, zoom 6-channel: 16-bit dimmer, color temperature, hue, zoom, strobe 7-channel: red, orange, green, royal blue, blue, lime, zoom 9-channel: dimmer, red, orange, green, royal blue, blue, lime, strobe, zoom... - Page 14 Operation Main Level Programming Levels Description 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K Dimmer 0–255 3600K 3700K 3800K 3900K 4000K 4100K 4200K Sets the color temperature, dimmer, 4300K and hue (green/magenta) levels. 4400K Color Emulates a tungsten lamp at the 4500K Temperature specified color temperature.
- Page 15 Operation Main Level Programming Levels Description Uses factory default white setting Sets red LED maximum value Orange Sets orange LED maximum value White Green Sets green LED maximum value Balance Manual 125–255 Royal Blue Sets royal blue LED maximum value Blue Sets blue LED maximum value Lime...
-
Page 16: Color Temperature Chart
Operation Color Temperature Chart Orange Royal Blue Lime Green Color Temperature Red Value Green Value Blue Value Value Value Value 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K 4400K 4500K 4600K 4700K 4800K 4900K 5000K... -
Page 17: Dmx Values
Operation DMX Values 1Ch 4Ch 6Ch 7Ch 9Ch 13Ch 16Ch 19Ch Function Value Percent/Setting – Dimmer 000 255 0–100% – – – – – Dimmer fine 000 255 0–100% – – – 000 255 0–100% – – –... -
Page 18: Standalone Configuration
Operation Standalone Configuration Use standalone configuration to operate the product without a DMX controller. Static Mode The Static mode allows for an unchanging color without a DMX controller. Color Temperature To select a color temperature, do the following: Go to the Static main level. Select Color Temperature. -
Page 19: White Balance
Operation White Balance This setting determines the maximum output values for each color, which affects the appearance of a full output white. Go to the White Balance main level. Select Off (the product will use a default setting) or Manual. For Manual mode, select the color value to edit (Red, Orange, Green, Royal Blue, Blue, or Lime). -
Page 20: Maintenance
Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean each lighting product at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 21: Technical Specifications
Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 15.80 in (401 mm) 11.22 in (285 mm) 9.51 in (242 mm) 12.79 lb (5.8 kg) Note: Dimensions in inches rounded to the nearest hundredth. Power Power Supply Type Range Voltage Selection Switching (internal) - Page 22 Fan-assisted convection I/O Connector Channel Range 5-pin XLR 1, 4, 6, 7, 9, 13,16, and 19 Ordering Product Name Item Code UPC Number Ovation F-415VW-2 03032350 781462226985 UL 1573 CSA C22.2 No. 166 E113093 Ovation F-415VW User Manual Rev. 1...
-
Page 23: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd., Suite 509 Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K.
