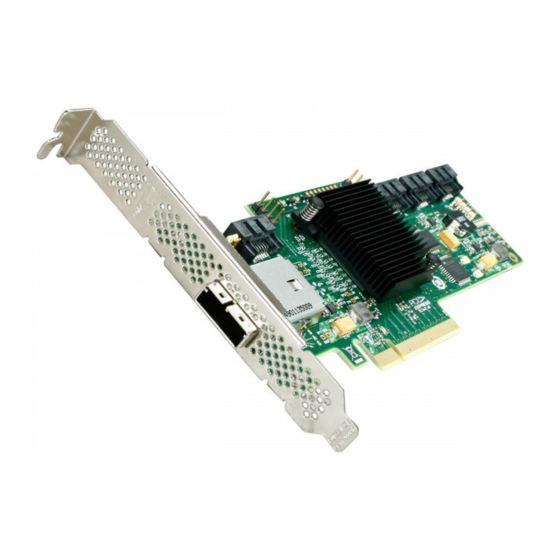

- Page 1 LSI® SAS 9212-4i4e PCI Express® to 6Gb/s Serial Attached SCSI (SAS) Host Bus Adapter (HBA) User Guide Version 1.1 October 2014 DB15-000853-01...
- Page 2 800-372-2447 Avago Technologies, the A logo, LSI, Storage by LSI, and Fusion-MPT are trademarks of Avago Technologies in the United States and other countries. All other brand and product names may be trademarks of their respective companies. Data subject to change. Copyright © 2011–2014 Avago Technologies. All Rights Reserved.
-
Page 3: Table Of Contents
LSI SAS 9212-4i4e PCI Express to 6Gb/s SAS HBA User Guide Table of Contents October 2014 Table of Contents 1 Overview ..........................4 2 HBA Features . -
Page 4: Overview
PCIe 2.0 5Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9212-4i4e HBA is based on the Fusion-MPT™-architected LSI® SAS 2008 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology. -
Page 5: Sata And Sas
For Solaris support, contact the LSI Technical Support team. LSI SAS 9212-4i4e HBA Characteristics Flash The LSI SAS 9212-4i4e HBA has onboard Flash ROM for the firmware and BIOS. The LSI SAS 9212-4i4e HBA provides one 4-M x 8-bit Flash ROM for storing the firmware and BIOS. Connectors This section describes the different connectors on the LSI SAS 9212-4i4e HBA. -
Page 6: Physical Characteristics
Physical Characteristics The LSI SAS 9212-4i4e HBA is a 6.6-in. x 2.7-in., low-profile board. The component height on the top and bottom of the LSI SAS 9212-4i4e HBA is in accordance with the PCIe specification. The following figure shows the board connectors. -
Page 7: Electrical And Environmental Specifications
Safety Characteristics All LSI SAS 9212-4i4e HBAs meet or exceed the requirements of UL flammability rating 94V-0. Each bare board is marked with the supplier’s name or trademark, type, and UL flammability rating. Because these boards are installed in a PCIe slot, all voltages are below the SELV 42.4-V limit. - Page 8 Replace the mounting bracket (system dependent). If required for your system, replace the full-length mounting bracket that ships on the LSI SAS 9212-4i4e HBA with the shorter bracket supplied. Save and reuse the two screws that attach the long bracket to attach the short bracket.
-
Page 9: Revision History
LSI SAS 9212-4i4e PCI Express to 6Gb/s SAS HBA User Guide Revision History October 2014 Connect serial cables between the HBA and any serial HDDs or external enclosures. Figure 2 shows the locations of the HBA connectors. Replace the cover and any power cords, and power up the system. Replace the system’s cover, reconnect any power cords, and reconnect any network cables.
