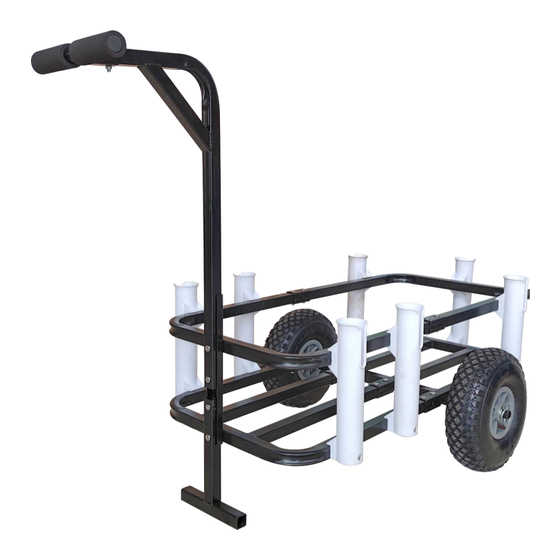

FISHING CART
MODEL: YK-200
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR YK-200
Summary of Contents for VEVOR YK-200
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support FISHING CART MODEL: YK-200 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Safety Instructions
3. It is forbidden to load articles on uneven and hilly terrains. 4. Overload is strictly prohibited. 5. Don't move too fast when passing pothole areas. MODEL AND PARAMETERS Model YK-200 Max. Load 200lbs Wheels 11inch,inflatable,rubber wheels*2 Fishing Rod Barrel Frame Size (inside) 34 x 14.5 x 7inch... -
Page 5: Installation
INSTALLATION Frame Part x1(Each for one) Connection Block x12 wheels x2 Washer x2 Axle x2 O-pin x2 Axle Spacer x2 Fishing Rod Barrel x7 Wrench x1 3mm Hex Wrench x1 M5x35 Bolts x14 M5x16 Bolts x15 4mm Hex Wrench x2 (Need thirteen, one more) (Need fourteen, one more) - 3 -... - Page 6 M6x25 Bolts x3 M6x50 Bolts x3 User Manual x1 (Need two, one more) (Need two, one more) Step 1: Connect the two lower frames together using the M5x35 bolts and the connection block. M5x35 Bottom Bottom Beam at the bottom. Step 2: Attach the upper frame in the same manner.
- Page 7 Step 3: Mounting the frame. NOTE: The frames have pre-drilled holes for mounting the fishing barrels. The number of pre-drilled holes on the upper and lower frames on the same side should be the same. Pay attention to the location of the fishing rod barrel.
- Page 8 Step 4: Install all rod barrels, then wheels. O-pin mounting hole NOTE: Insert the plastic parts of the wheel axle into the ends of the bottom cross member of the frame, then insert the wheel axle, and finally install the wheel on it. Step 5: Put in the washer first, then insert the O-pin.
-
Page 9: Maintenance
M5x35 Step 6: Installation complete and pump up the tire before use. MAINTENANCE 1. Clean the surface after each use. 2. Please confirm that the cart is intact and the tire pressure is normal before each use. 3. Check that the bolts are tight. - 7 -... - Page 10 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
