ELECTRIC TRAILER MOVER
MODEL:JY01
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR JY01
Summary of Contents for VEVOR JY01
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ELECTRIC TRAILER MOVER MODEL:JY01 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 This manual uses following symbols to help differentiate between different kinds of information.The safety symbol is used with a key word to alert you to potential hazards in operating and owning power tool. Follow all safety messages to avoi d or reduce the risk of serious injury and death. ！...
-
Page 5: Safety Rules
Safety Rules DANGER Always pay attention on Electric Trailer Mover. If the Electric Trailer Mover abnormally warps, stop working immediately. ！ CAUTION Apply blocks to the wheels of the vehicle when on an incline. ！ WARNING Electric Trailer Mover is able to adjust its height for easy mounting, but Don’t lift up for moving. - Page 6 Do not push or pull vehicle on over 5 degree Gradient. WARNING When you push or pull vehicle on gradient, Make sure Trailer Mover Stand lower position. Safety Rules ！ DANGER Please observe surrounding when you working with your Trailer Mover. ！...
- Page 7 ！ CAUTION Do not exceed rated capacity ！ CAUTION Please don’t submerge Trailer Mover and/or leave it ！ WARNING Battery leads are replaceable but new leads have to be less than 3M in length and over 4mm² in section. ！ WARNING Stop working when Trailer Mover tire won’t bite on slippery surface...
- Page 8 1.Motor & Gear system: DC motor provides power to the gear mechanism, reduction gears converts motor power into moving force. 2.Control box: Include the electric components, and protect motor from over heat damage. 3.Clamp: It is same as normal jockey wheel clamp for fix Trailer Mover to vehicle Chassis.
-
Page 9: Package Content
Model JY01 SPEC Rating(s) 12VDC,350W Load Capacity 600lbs Wheels 8" Airless Tires Speed 6~7m/min Gear ratio 326:1 Brake Auto-brake 14.5KG 13.5KG Package Content Model JY01 SPEC Electric Trailer Mover Handle power cord Mounting Bracket Screw Kit Manual - 7 -... - Page 10 Step1: Connect upper handle and under handle using lock bolt M8. Step2: Attach the handle assembly to the main frame using lock bolt M14. - 8 -...
- Page 11 Step3: Insert the latch pressure plate into the latch fixed plate, then attach the latch fixed plate to the towing bracket of car using hex bolt M12x120, flat washer Ø12 and nylon lock nut M12. Step4: Compress the latch pressure plate using lock pin and lock. Step5: Insert one head of power cord into the socket of Trailer Mover, connect the other head of power cord to the battery.
- Page 12 negative. Step6: Button the red power switch processing circuit, and make sure the tire route. General tips for safe operation 1.Electric Trailer Mover is rated at 2270kg pulling weight and 272kg jockey wheel load. Overloads can damage the Mini Mover, motor, tire etc. 2.Check if the handle positioning key totally screwed with Mini Mover - 10 -...
- Page 13 before you start operation. 3.Check if battery leads correctly connect to battery terminals. 4.Don’t use leads that being shattered, squashed or any damage. 5.Avoid rainy day when use the machine under the condition of open-air. Operation guide *Take time to access your situation and plan your movement. *Clamp your Mini Mover with vehicle chassis.
-
Page 14: Troubleshooting
All moving parts within the Trailer Jack have been Lubricated using high temperature lithium grease at the factory. No internal lubrication is required. If the Mini Mover being used in high moisture circumstance for long time and internal lubrication is necessary, please find a professional technician for maintenance. - Page 15 Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET Manufacturer: WUYI DOUBLEZEN MACHINERY CO.,LTD Address：FENGHUASHAN INDUSTRIAL ZONE WUYI, ZHEJIANG , CHINA Made In China EUREP UK LTD UNIT 2264, 100 OCK STREET, ABINGDON OXFORDSHIRE ENGLAND OX14 5DH EUREP GmbH Unterlettenweg 1a, 85051...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the JY01 and is the answer not in the manual?
Questions and answers

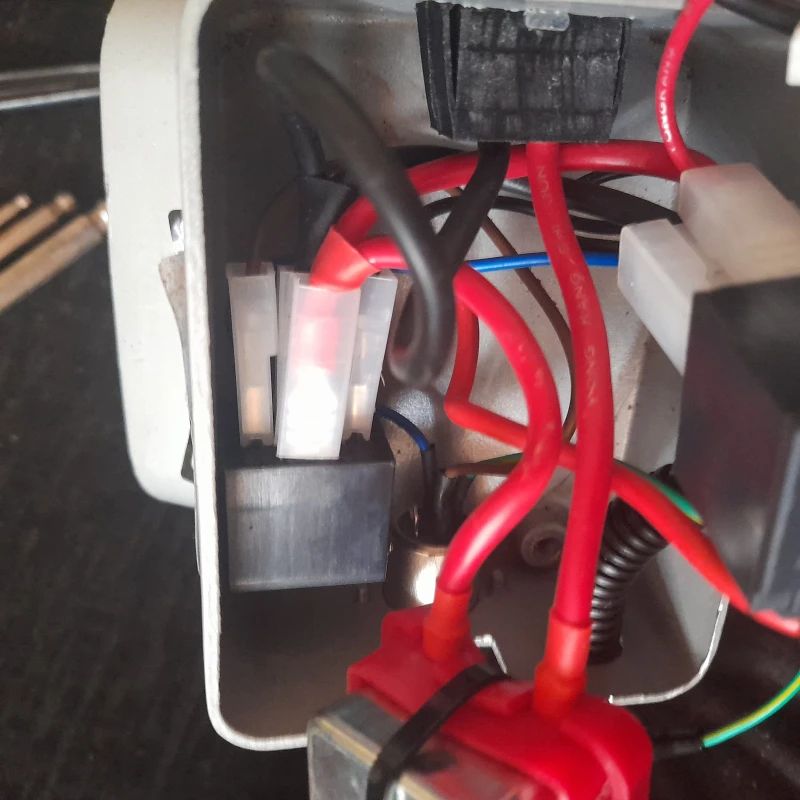

Wireing digram for jyo112 volt trailer mover
