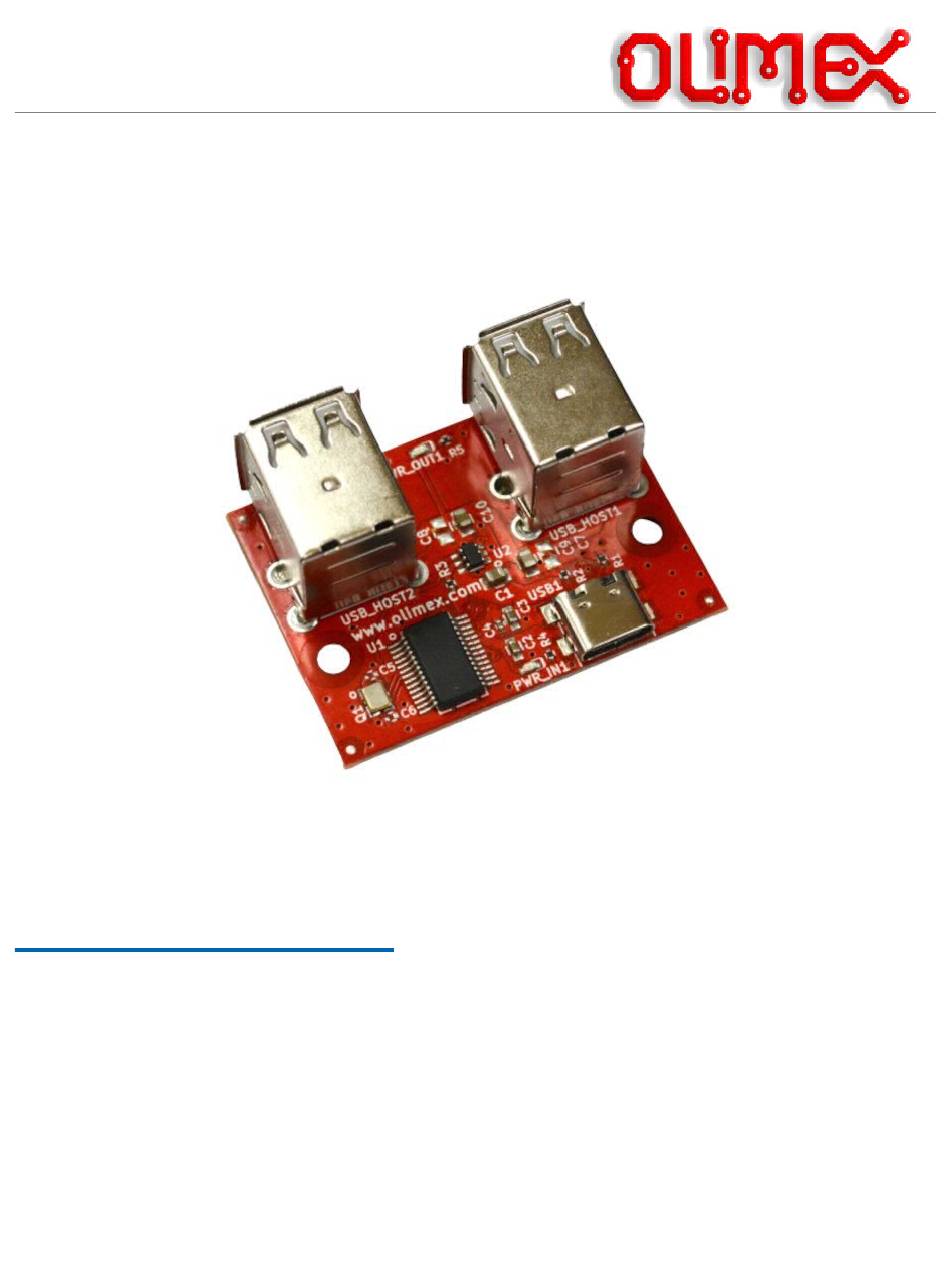

- Page 1 USB-NeoHub User Manual olimex.com Rev.1.0 February 2024...
-
Page 2: Table Of Contents
Table of Contents What is USB-NeoHub..........................3 USB-NeoHub features:..........................4 Order codes for USB-NeoHub:........................5 HARDWARE.............................6 USB-NeoHub layout:..........................7 USB-NeoHub schematics:........................8 Revision History............................9... -
Page 3: What Is Usb-Neohub
What is USB-NeoHub USB-NeoHub is USB hub which is both USB 1.1 and USB 2.0 compatible. This is important as Neo6502 modern retro computer uses RP2040 to interface USB keyboards and USB Flash drives. RP2040 USB interface is USB 1.1 For some weird reason not all USB hubs on the market support this standard which leads to incompatibilities. -
Page 4: Usb-Neohub Features
USB-NeoHub features: • USB 1.1 and USB 2.0 compliant • USB-C device input • USB-A x4 host outputs • works with Neo6502, PC, OLinuXino, Raspberry Pi, RP2040-PICO and RP2040-PICO W • Industrial grade -40+85C • Dimensions are: 46 x 34... -
Page 5: Order Codes For Usb-Neohub
Order codes for USB-NeoHub: USB-NeoHub industrial grade -40+85C USB hub compatible with Neo6502 USB-CABLE-A-TO-C-1M USB-C cable... -
Page 6: Hardware
HARDWARE... -
Page 7: Usb-Neohub Layout
USB-NeoHub layout: Dual USB-A host Dual USB-A host USB host power indicator USB-C power indicator USB-C device input... -
Page 8: Usb-Neohub Schematics
USB-NeoHub schematics:... -
Page 9: Revision History
Revision History Revision 1.0 February 2024...
