Summary of Contents for OLIMEX TMS320-XDS100v3

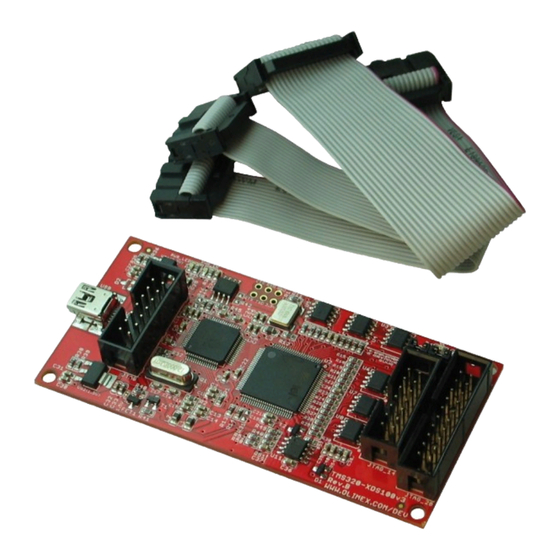

- Page 1 TMS320-XDS100v3 DSP and ARM emulator and adapter USER’S MANUAL Revision B, September 2012 Designed by OLIMEX Ltd, 2012 All boards produced by Olimex LTD are ROHS compliant...
-
Page 2: Disclaimer
This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product. -
Page 3: Table Of Contents
1.1 Features ........................4 1.2 Target market and purpose of the board ..............5 1.3 Organization ....................... 5 CHAPTER 2 SETTING UP THE TMS320-XDS100v3 ........... 6 2. Introduction to the chapter ..................6 2.1 Electrostatic warning ....................6 2.3 Requirements ......................6 2.4 Powering the board and installation procedure ............ -
Page 4: Chapter 1 Overview
Thank you for choosing the TMS320-XDS100v3 emulator from Olimex! This document provides a user’s guide for the Olimex TMS320-XDS100v3. As an overview, this chapter gives the scope of this document and lists the board’s features. The differences between the members of the TMS320- XDS100v3 family are mentioned. -
Page 5: Target Market And Purpose Of The Board
– Chapter 2 provides a guide for quickly setting up the board – Chapter 3 contains the general board diagram and layout – Chapter 4 mentions the main software tools used with TMS320-XDS100v3 – Chapter 5 is an explanation of the interfaces, the leds, the jumpers position –... -
Page 6: Chapter 2 Setting Up The Tms320-Xds100V3
2.1 Electrostatic warning TMS320-XDS100v3 is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element. - Page 7 OLIMEX© 2012 TMS320-XDS100v3 User's Manual B. Install the EmuPack with XDS100v3 support. C. Connect the XDS100 hardware 1. Make sure the Code Composer Studio 5.1.x and EmuPack with XDS100v3 support is installed FIRST before plugging in the XDS100 HW to the PC.
-
Page 8: Chapter 3 Tms320-Xds100V3 Description
3. Introduction to the chapter Here you get acquainted with the main parts of the board. Note the names used on the board differ from the names used to describe them. For the actual names check the TMS320-XDS100v3 board itself. -
Page 9: Chapter 4 Interfaces And Hardware
4.1.3 JTAG_20 Used for 20 pin JTAG connectoon 4.2 LEDs There are four leds on TMS320-XDS100v3. Two for indicating power input and power output and two for the state of the jumpers. 4.2.1 Power LEDs The PWR_LED shows whether the board is powered. The PWR_EN shows whether the board can power the target. -
Page 10: D3 And D4
OLIMEX© 2012 TMS320-XDS100v3 User's Manual 4.2.2 D3 and D4 The D3 and D4 leds show the state of, respectively, J4 and J5 jumpers. 4.3 Jumpers There are two PTH jumpers on TNS320-XDS100v3. They are responsible for the emulation – adapter configuration. When J4 and J5 are open – the chosen mode is emulator mode. When J4 an J5 are closed the chosen mode is adapter. -
Page 11: Chapter 5 Revision History And Support
OLIMEX© 2012 TMS320-XDS100v3 User's Manual CHAPTER 5 REVISION HISTORY AND SUPPORT 5. Introduction to the chapter In this chapter you will find the current and the previous version of the document you are reading. Also the web-page for your device is listed. Be sure to check it after a purchase for the latest available updates and examples. -
Page 12: Useful Web Links And Purchase Codes
The web page you can visit for more info on your device is https://www.olimex.com/Products/DSP/Emulators/TMS320-XDS100-V3/. ORDER CODES: TMS320-XDS100v3 – completely assembled and tested JTAG emulator How to order? You can order to us directly via our internet shop or from any of our distributors. -
Page 13: Product Support
TMS320-XDS100v3 User's Manual 5.3 Product support For product support, hardware information and error reports mail to: support@olimex.com. Note that we are primarily a hardware company and our software support is limited. Please consider reading the paragraph below about the warranty of Olimex products.
