Summary of Contents for OLIMEX ESP32-S3-DevKit-LiPo

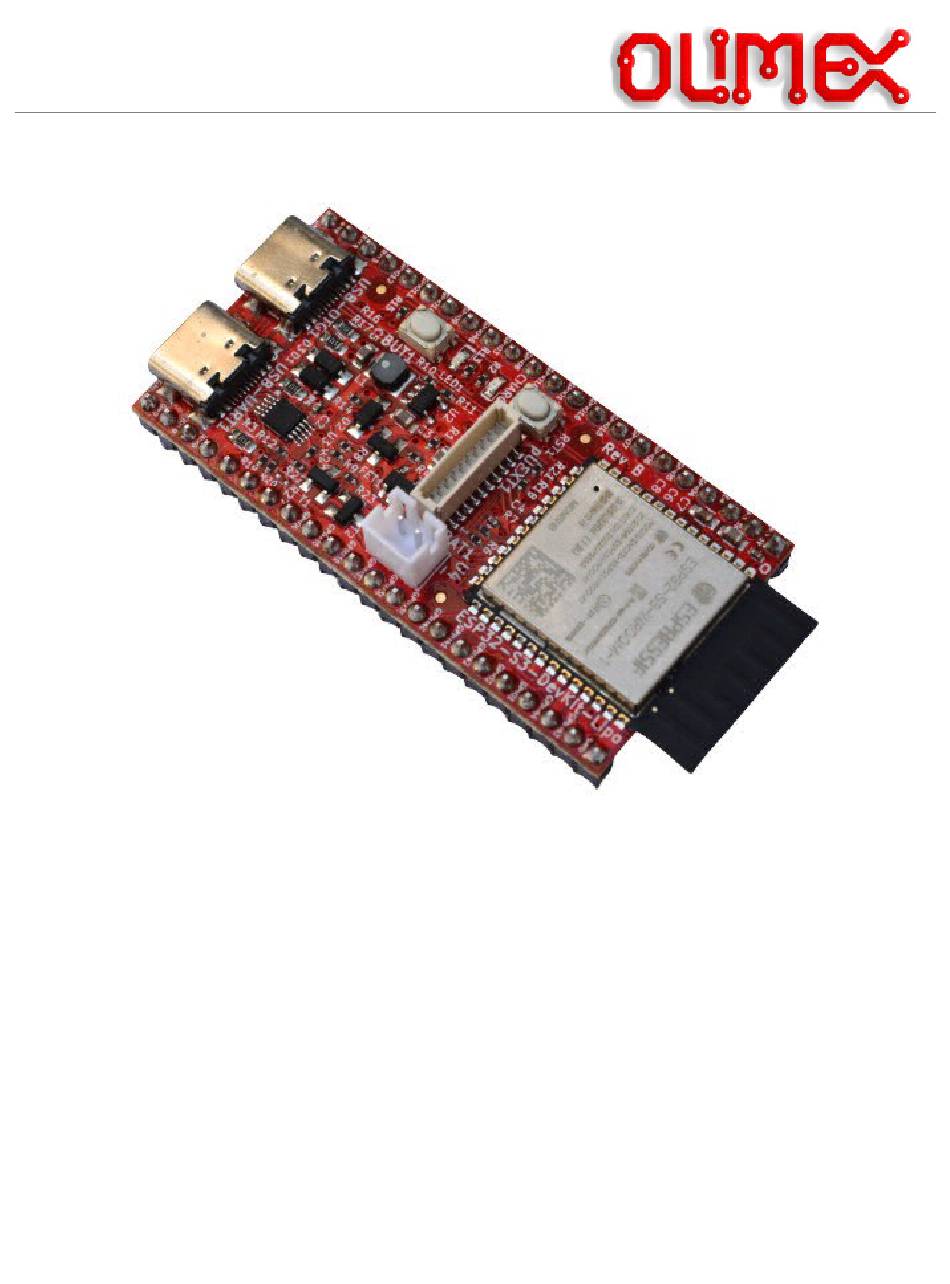

- Page 1 ESP32-S3-DevKit-LiPo User Manual olimex.com Rev.1.0 July 2023...
-
Page 2: Table Of Contents
Table of Contents Introduction to ESP32-S3-DevKit-LiPo....................3 Order codes for ESP32-S3-DevKit-Lipo and accessories:..............4 HARDWARE.............................5 ESP32-S3-DevKit-LiPo layout:......................6 ESP32-S3-DevKit-LiPo GPIOs:......................8 ESP32-S3-DevKit-Lipo schematics:....................10 UEXT connector:..........................11 pUEXT signals:...........................12 SOFTWARE:............................13 Revision History............................14... -
Page 3: Introduction To Esp32-S3-Devkit-Lipo
Introduction to ESP32-S3-DevKit-LiPo ESP32-S3 is a dual-core XTensa LX7 MCU, capable of running at 240 MHz. Apart from its 512 KB of internal SRAM, it also comes with integrated 2.4 GHz, 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE) connectivity that provides long-range support. It has 45 programmable GPIOs and supports a rich set of peripherals. -
Page 4: Order Codes For Esp32-S3-Devkit-Lipo And Accessories
Order codes for ESP32-S3-DevKit-Lipo and accessories: ESP32-S3-DevKit-LiPo ESP32-S3 development board with USB JTAG/Debugger and Lipo charger USB-CABLE-A-TO-C-1M USB-C power and programming cable LiPo batteries UEXT sensors and modules... -
Page 5: Hardware
HARDWARE... -
Page 6: Esp32-S3-Devkit-Lipo Layout
ESP32-S3-DevKit-LiPo layout: USB-C JTAG/OTG ESP32-S3 RESET User Button Status LED Charge LED pUEXT connector LiPo battery connector USB-C UART... -
Page 8: Esp32-S3-Devkit-Lipo Gpios
ESP32-S3-DevKit-LiPo GPIOs:... -
Page 9: Power Supply
POWER SUPPLY: This board can be powered by: EXT1.pin 21 can be input or output USB-UART USB-C connector USB-OTG1 USB-C connector LiPo battery... -
Page 10: Esp32-S3-Devkit-Lipo Schematics
ESP32-S3-DevKit-Lipo schematics: ESP32-S3-DevKit-LiPo latest schematic is on GitHub... -
Page 11: Uext Connector
- mUEXT is 1.27 mm step boxed header connector which is with same layout as UEXT - pUEXT is 1.0 mm single row connector (this is the connector used in RP2040-PICO30) Olimex has developed number of MODULES with this connector. There are temperature, humidity, pressure, magnetic field, light sensors. -
Page 12: Puext Signals
pUEXT signals:... -
Page 13: Software
SOFTWARE: • ESP32-S3-DevKit-Lipo Linux image • ESP32-S3-DevKit-LiPo Linux build instructions from jcmvbkbc and here • ESP32-S3-DevKit-Lipo Linux build instructions form ESP32DE... -
Page 14: Revision History
Revision History Revision 1.0 July 2023...
