Summary of Contents for Charnwood country 4 blu

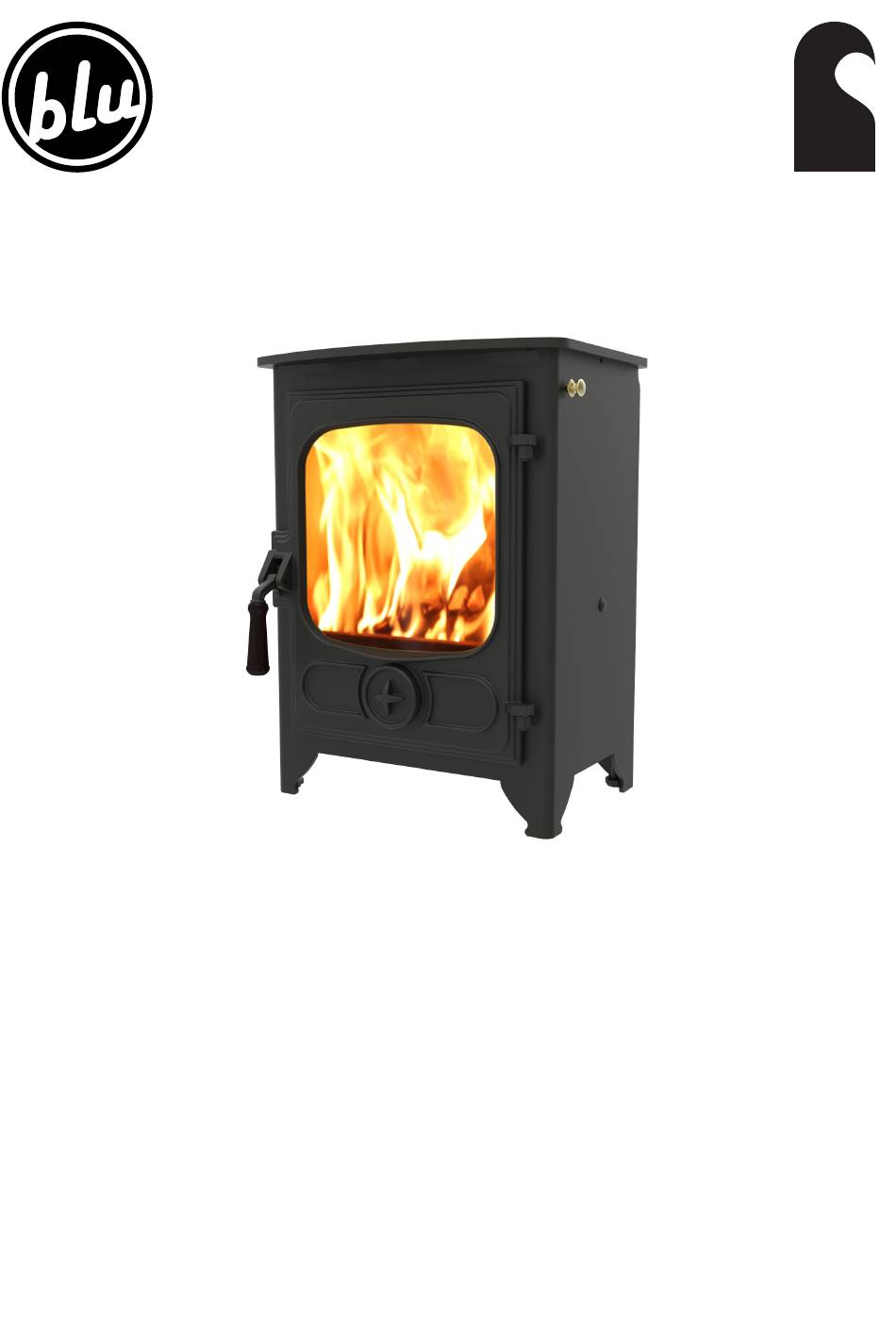

- Page 1 ® country Operating & Installation Instructions...
-
Page 3: Table Of Contents
C O N T E N T S QUICK GUIDE OPERATING INSTRUCTIONS FUEL LIGHTING CONTROLLING THE FIRE REFUELLING ASH CLEARANCE REDUCED BURNING MAINTENANCE THROAT PLATE AND FLUEWAY CLEANING CHIMNEY SWEEPING TROUBLE SHOOTING CO ALARM IF YOU NEED FURTHER HELP UNPACKING THE STOVE HEALTH AND SAFETY PRECAUTIONS CO ALARMS SPECIFICATION... -
Page 4: Quick Guide
Have chimney swept twice a year. Chimney can be swept through stove. SERVICING Stove should be serviced by a professional at least once a year. LIGHTING AND CONTROLLING THE FIRE Suitable fuels for your Charnwood: Wood logs Unsuitable fuels: Petroleum coke Liquid fuel... -
Page 5: Operating Instructions

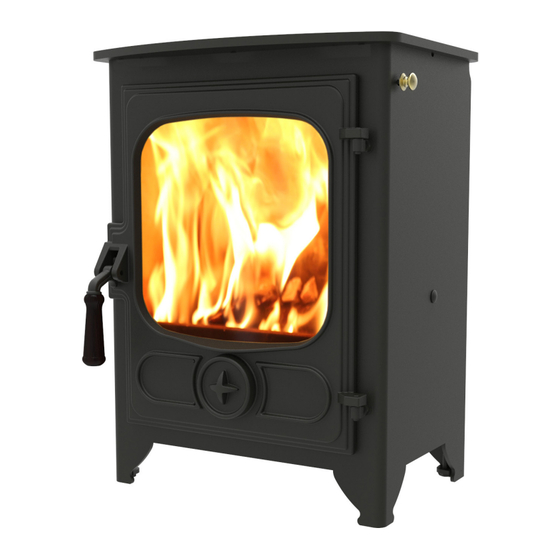

OPERATING INSTRUCTIONS ® Congratulations on becoming the owner of a Charnwood Country Approximate suitable log sizes are: 4 Blu Stove. Your stove has been approved in smoke control areas 225mm(10in) long and 75mm (3in) diameter to burn wood logs if it is used in accordance with these instructions. -
Page 6: Refuelling
For optimum wood burning, it is important to leave a layer of ash in the instructions. The Charnwood Country 4 Blu is provided with around 1cm thick on the base of the stove. Before removing ash an air control stop to be fitted before use in a smoke control area. -
Page 7: Throat Plate And Flueway Cleaning
Manufacturer or their approved agents. The chimney should be swept at least twice a year. Where the top Use only genuine Charnwood replacement parts. outlet or vertical rear flue connector is used it will generally be possible to sweep the chimney through the appliance. -
Page 8: Trouble Shooting
When the chimney is warm a draught reading of at least 1.25 mm (0.05 in.) water gauge (12Pa) should be obtained. Some blackening If you need further help with your Charnwood then your Installer of the glass may occur below the level of the fuel retainer. This will will be able to provide the answers to most questions. -
Page 9: Unpacking The Stove
If there is a possibility of disturbing any asbestos in the course of installation then please use appropriate protective equipment. SPECIFICATION COUNTRY 4 BLU Ideally there should not be an extractor fan fitted in the same room Fuel Wood logs as the appliance. -
Page 10: Hearth And Fire Surround
This may be stainless steel, cast iron, or thick wall steel pipe. a constructional hearth is required. The positioning of the stove and Charnwood Pipe to match the stove is available if required. the size of the hearth are governed by building regulations for Class There are several ways of connecting the stove to the flue. -
Page 11: Soot Doors
INSTALLATION INSTRUCTIONS ® removed, have the webbing fitted to its sealing face, and fitted to Fig. 7 Horizontal Register Plate With Top Flue Connection the rear flue outlet. Ensure that the fold on the clamping plate is Alternative soot door positions in line with the lugs on the firebox as shown in Fig 9. -
Page 12: Caa And Smoke Control
1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements. The Country 4 blu has been been recommended as suitable for use in smoke control areas when burning wood logs. The stove includes a provided modification that must be fitted to prevent the air control from complete closure of the air supply. -
Page 13: Dimensions
DIMENSIONS ® To suit 125mm (5”) flue pipe PLAN VIEW FRONT SIDE REAR WITH HEATSHIELD WITH VERTICAL REAR FLUE ADAPTOR... -
Page 14: Parts List
PARTS LIST Charnwood Country 4 BLU Parts List ® Issue A Item Part No. Description 008/PV21 Door Seal 008/PV08 Door Handle (Incl. Screw & Washer) 008/FW29 Door Seal Adhesive 002/PV02 Primary Air Control 008/PV55 Glass Seal Kit 002/TW13 Air Control Knob... -
Page 15: Certific Ation
A Division of A.J.Wells & Sons Limited Registered In England No. 03809371 CE certificate for compliance with EN13240:2001 EN13240:2001 ROOMHEATERS FIRED BY SOLID FUEL Model: COUNTRY 4 BLU EC Certificate of conformity no: EYE11-CPD-2018 Fuel type: WOOD LOGS Rated space heating thermal output: Emission of CO in combustion products: 0.10... - Page 16 ErP (EU 2015/1187) EN - PRODUCT FICHE IT - SCHEDA PRODOTTO FR - FICHE DE PRODUIT PL - KARTA PRODUKTU MANUFACTURER MARQUE MARCHIO Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom MARCA A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 MODEL MODÈLE MODELLO...
- Page 17 (EU)2015/1185 - (EU)2015/1186 Model identifier(s): Charnwood Country 4 Test laboratory: RRF Indirect heating functionality: No Notified body no: 1625 Direct heat output: 5(kW) Test report no: 40 19 52 89 Indirect heat output: - (kW) Harmonized standard: EN 13240 TECHNICAL INFORMATION FOR SOLID FUEL LOCAL SPACE HEATERS...
- Page 21 your premier dealer...
