DKX3-UST and DKX4-UST Quick Setup Guide
Thank you for purchasing Dominion User Station. The user station is a high-performance appliance dedicated to
access Raritan's enterprise-class Dominion KVM‑over‑IP switches with anytime, anywhere access.
For more, access online help from the web interface or go to Raritan's
Package Contents
•
•
Dominion User Station hardware
•
•
Power adapter
•
•
VESA mount kit
•
•
Quick Setup Guide
•
•
L-type rackmount kit (optional)
Note: To mount the User Station in a 19-inch data center rack, you must purchase the L‑type rackmount kit from Raritan.
Refer to the online help or user guide for rackmount instructions.

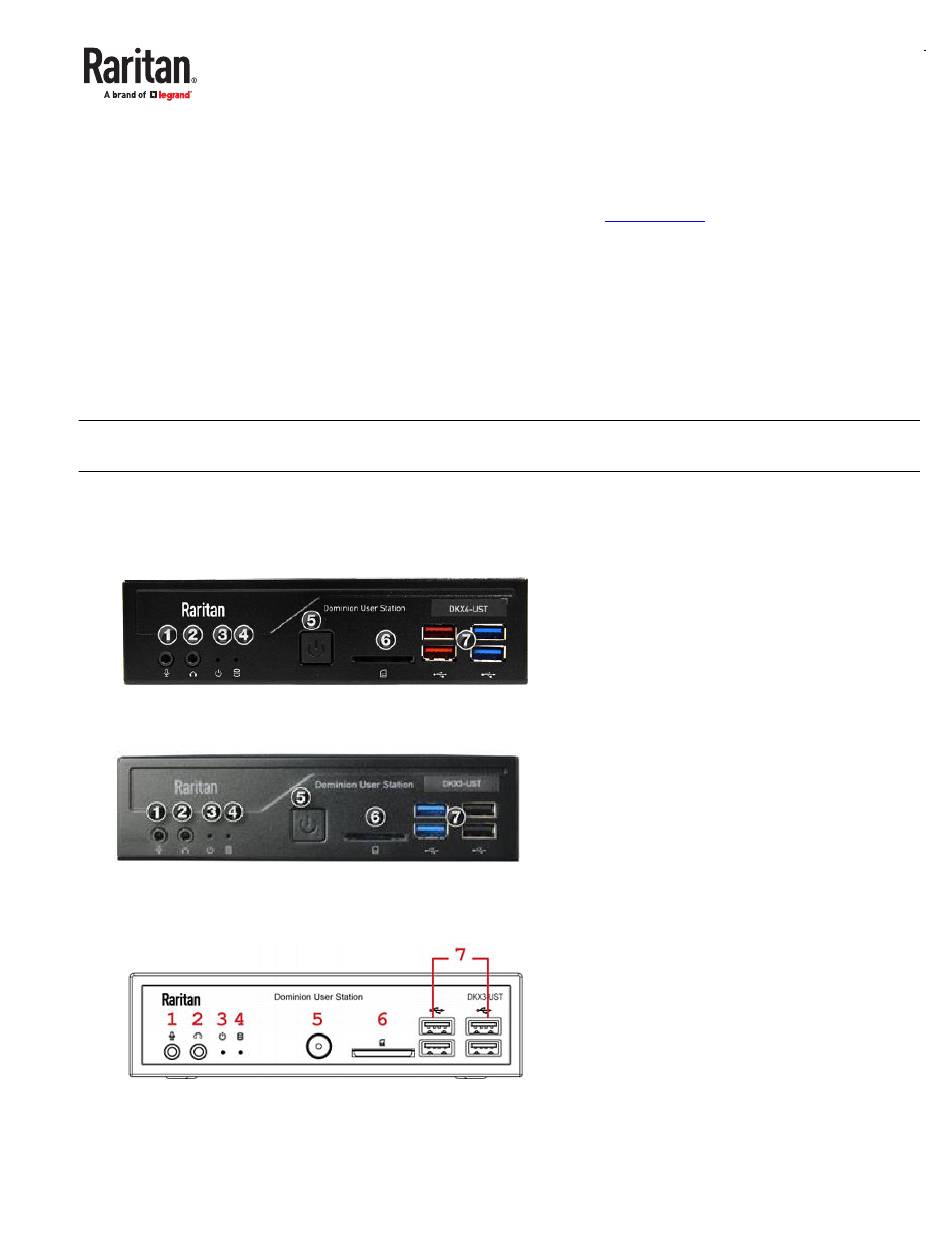

Front View
•
•
DKX4-UST:
•
•
DKX3-UST Version 2:
•
•
DKX3-UST Version 1:
Dominion User Station QSG
QSG-DKX3UST-DKX4UST-C1-v4.7.0
Support
page.
1. Microphone input
2. Audio output
3. Power LED
4. Hard disk LED
5. Power button
6. SD card reader (not
available)
7. USB 2.0 and 3.1* ports
*KX4-UST and KX3-UST Version
2 models only
page
1
Advertisement
Table of Contents
Related Manuals for LEGRAND Raritan Dominion KX III
Summary of Contents for LEGRAND Raritan Dominion KX III
- Page 1 DKX3-UST and DKX4-UST Quick Setup Guide Thank you for purchasing Dominion User Station. The user station is a high-performance appliance dedicated to access Raritan's enterprise-class Dominion KVM‑over‑IP switches with anytime, anywhere access. For more, access online help from the web interface or go to Raritan's Support page.
-
Page 2: Rear View
Rear View • • DKX4-UST: 1. RS232/ RS422/ RS485 2. RS232 3. DC power input 4. Gigabit LAN port 1 • • DKX3-UST Version 2: 5. Gigabit LAN port 2 6-7. USB Ports KX3-UST and KX3- Version 2: USB 2.0, KX4-UST only: USB •... -
Page 3: Side View
Side View 1. Kensington Lock holes VESA Mount (Optional) You can mount the Dominion User Station onto the back of a monitor with 75 or 100 mm VESA standards. ▶ VESA mount procedure: 1. Turn OFF and disconnect all devices from the power sources, including the monitor. 2. - Page 4 4. Tighten two sides securely using four appropriate screws. 5. The Dominion User Station is now securely attached to the monitor. page Dominion User Station QSG QSG-DKX3UST-DKX4UST-C1-v4.7.0...
-
Page 5: Step 1: Connect The Equipment
Step 1: Connect the Equipment 1. Power ON all devices. Step 2: Initial Log in to the Dominion User Station Use the factory default user credentials for initial login. User credentials are case sensitive. • • User name: admin • •... - Page 6 ▶ To add KX/SX Devices: 1. Launch the User Station Configuration window using either method below. • Press Ctrl+Alt+C. • • Choose Main Menu > User Station Configuration. "Main Menu" is located at the bottom-left corner of the screen. • 2.
- Page 7 ▪ Enter login credentials for the KVM switch when Normal is the chosen authentication method. ▪ 4. Click Save. 5. Click Back to All KX Devices to go back to the list page. Repeat to add more devices. Important: If "Allow LDAP Single Sign-on" is enabled, LDAP users can omit entering credentials in favor of their LDAP credentials being used.
-
Page 8: Step 5: Use The Kvm Client
2. Per default, only a list of "up" ports is displayed under the selected KVM/Serial switch. For dual port video, only the primary port must be "up" to be displayed. • Numbers in parentheses are the physical port numbers on the KVM/Serial switch. •... - Page 9 Button Function Connection Properties: Manages streaming video performance over your connection to the target server. Show information like FPS and video resolution. The factory default settings are ideal for most connections so it is not recommended to change the settings unless required. Keyboard: Shows a list of available hot key macros and sends the selected macro to the target server.
-
Page 10: Button Function
Button Function External Device Settings: Access the settings for operating an external device.. View: Shows several display options, such as Scale Video and Full-Screen Mode. The right group comprises the following shortcut buttons for frequently-used functions. Button Function Synchronize Mouse: Forces the target server's mouse pointer to align with the User Station's in the dual mouse modes. -
Page 11: Basic Network Settings
Basic Network Settings The Dominion User Station default network configuration is set to Automatic (DHCP) for both IPv4 and IPv6 settings. This section describes basic network configuration only. Refer to the online help or user guide for more information. ▶ To configure basic network settings: 1. -
Page 12: Logout Or Shutdown
4. In the Method field, select one of the following options: • Automatic (DHCP): The DHCP server automatically assigns an IPv4 address. This is the default. • • Automatic (DHCP) addresses only: The DHCP server automatically assigns the IP address only. DNS comes from manual •...
