LEGRAND WattStopper RH-200 Installation Instructions Manual

Please read all instructions before installing
SPECIFICATIONS
Voltage ................................................................... 120VAC, 60Hz
Load (Single Pole Circuit)
Incandescent or fl uorescent ................................ 0-600 Watts
Fan motor ...................................................................... 1/6 hp
Time Delay Adjustment .............. 15 sec., 5 min., 15 min., 30 min.
Light Level Adjustment ........................................... 10 fc to 150 fc
Environment ...................................... Residential Indoor use only
Operating Temperature ....................32° to 131°F (0° to 55°C)
Humidity .......................................... 95% RH, non-condensing
Tools Needed
Insulated Screwdriver
Wire Strippers
DESCRIPTION AND OPERATION
RH-200 Multi-way Wall Switch Vacancy Sensors are designed to replace standard
multi-way (3-way, 4-way) switches. They are ideal for any room with multiple
entries such as living and dining rooms, family rooms, bedrooms, bathrooms,
hallways, and any other indoor space where vacancy sensor-based controls with
manual ON/OFF capability are desirable.
Like standard switches, you can press the ON/OFF button to turn the light or fan
(controlled load) ON and OFF. Unlike standard switches, the RH-200 automatically
turns OFF the controlled load after the coverage area has been vacant for a period
of time (Time Delay). If motion is detected within 30 seconds after it automatically
turns OFF, the RH-200 automatically turns the load back ON.
While the sensor is factory preset as a Vacancy Sensor with manual ON operation,
it can be adjusted to work as an occupancy sensor that turns the controlled load
ON automatically upon detection of occupancy in the area.
Lighted Switch
To help you locate the RH-200 in a dark room, the amber LED illuminates the
ON/OFF button while the controlled load is OFF. When the controlled load is ON,
the LED is OFF.
Operating Modes
For multi-way operation the Operating Mode must be the same in all sensors
related to the same load. There are two operating modes to select from:
MODE 1 Vacancy sensor (Manual-ON/OFF, Auto-OFF): The user must press
the ON/OFF button to turn the load ON. The RH-200 keeps the load ON until no
motion is detected by any of the related RH-200s for the time delay period. There
is also a 30 second reset delay after the automatic shut-off. If motion is detected
during this time, the sensor turns the load back on automatically. After the 30
second reset delay has elapsed, the ON/OFF button must be pressed to turn ON
the load.
MODE 2 Occupancy sensor (Auto-ON/OFF with manual control and reset to auto
after 5 minutes of vacancy): The load turns ON and OFF automatically based on
occupancy detection. Once turned ON the RH-200 keeps the load ON until no
motion is detected by any of the related RH-200s for the time delay period. If
the load is turned OFF manually, automatic-ON is re-enabled when no motion is
detected for 5 minutes. This prevents the load from being turned on after it was
deliberately turned OFF.
Call 888.817.0571 for Technical Support

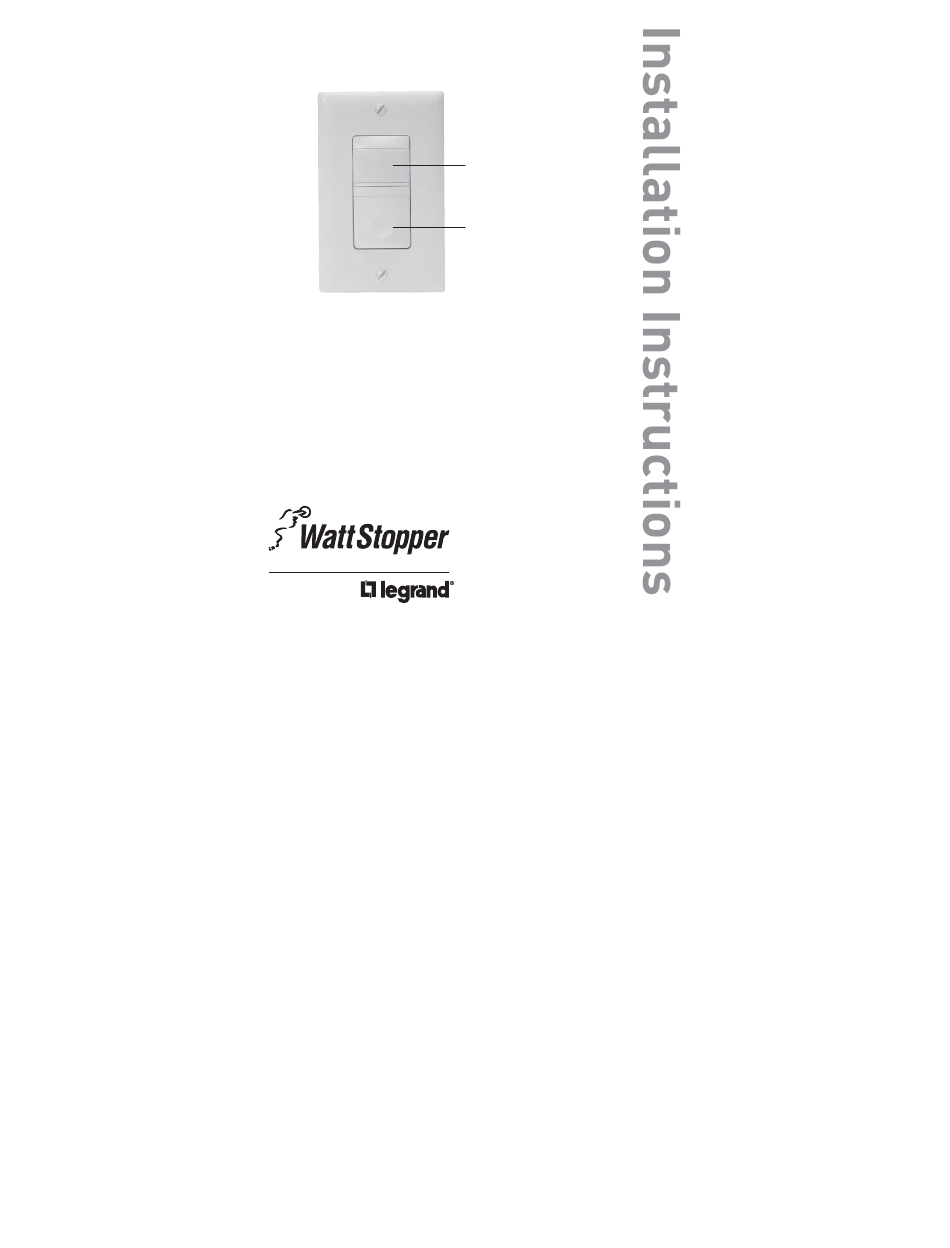

RH-200
Multi-way
Wall Switch
Vacancy Sensor
with Manual ON/OFF
Lens
Lighted Switch
ON/OFF Button
Santa Clara, CA 95050
