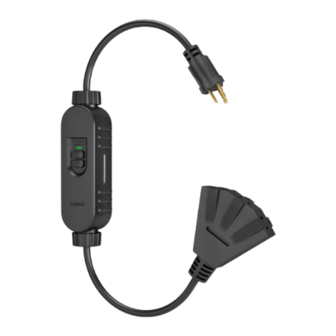

LEGRAND Radiant Manual
Smart plug-in outdoor switch, wi-fi
Hide thumbs
Also See for Radiant:
- Installation instructions (3 pages) ,
- Instruction manual (9 pages) ,
- User manual
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for LEGRAND Radiant
Summary of Contents for LEGRAND Radiant
- Page 1 Smart Plug-In Outdoor Switch, Wi-Fi Switch, Wi-Fi...
-
Page 2: Before You Start
• Before installation, ensure there is sufficient Wi-Fi signal strength of at least two bars. Using a smartphone or tablet on the same Wi-Fi network, go to the device intended location and check signal. If signal is weak, you may need a Wi-Fi Extender. For installation support visit: www.legrand.us/radiant/smart-lighting/support. - Page 3 Legrand’s Smart Plug-In Outdoor Switch is designed to remove power from the equipment loads when these loads have a potentially lethal ground current in excess of 6 milliamperes.
-
Page 4: Installation
installation Plug unit into 120 VAC power socket protected by fuse or circuit breaker. With no load connected the unit will automatically become energized and the indicator will blink green and amber after 10 seconds. Press “Test/Off” button. Verify the lamp indicator changes to blink white and amber (this step denotes that power is off). - Page 5 Download and launch the Smart Lights, Wi-Fi app by Legrand. The app is available on the App Store or on Google Play. SCAN TO DOWNLOAD Connect your Smart Plug-In Outdoor Switch to your home network by following the step by step instructions in the app.
-
Page 6: Getting To Know Your Switch
getting to know your switch Item Name Description • Indicates the current state of the device. LED Locator Light See LED locator Light Explanations for detail. • Turns the device off. Also used to test GFCI Off Button function. • Turns the device on. - Page 7 warnings If the GFCI fails to trip when the Test button is pressed (lamp indicator fails to turn white) or, if the GFCI fails to reset when the Reset button is pressed (lamp indicator fails to remain green), the device should be replaced. If the GFCI tests properly without any appliance plugged into it, but trips each time the appliance is plugged in, the appliance has a ground fault and needs to be repaired or replaced.
-
Page 8: Regulatory Information
regulatory information FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. -
Page 9: Rf Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the transmitter’s radiating structure(s) and the body of the user or nearby persons. NOTE: Any changes or modifications to this device that are not expressly approved by the manufacturer will void the warranty and the user’s authority to operate... -
Page 10: Specifications
Legrand reserves the right to change specifications without notice. notes Legrand’s Smart Plug-In Outdoor Switch will provide protection against ground faults when used with a 2-wire outlet receptacle and a 3-wire to 2-wire adapter. It is always desirable when possible to use a 3-wire grounded receptacle because a ground provides additional protection against electrical shock hazard. - Page 11 PHONE: 1-877-833-3303 8:00 a.m. to 8:00 p.m. EST (M-F) EMAIL: smartlighting@legrand.us CHAT: https://www.legrand.us/radiant/smart-lighting.aspx (Click on the icon to open a dialogue box)
- Page 12 Legrand, North America 50 Boyd Avenue Syracuse, NY 13209 1-877-833-3303 www.legrand.us...
