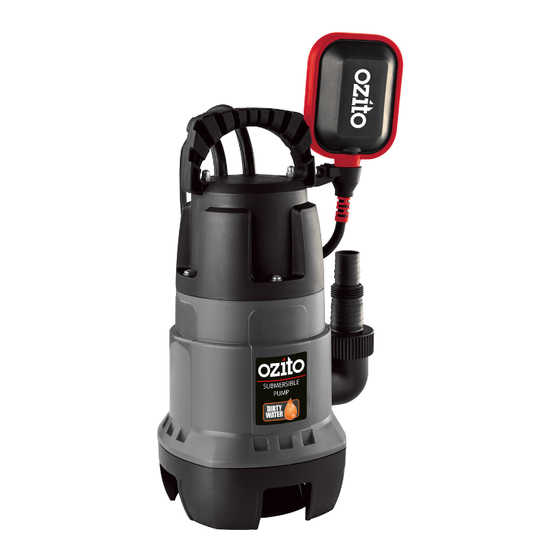

Dirty water submersible pump

Advertisement

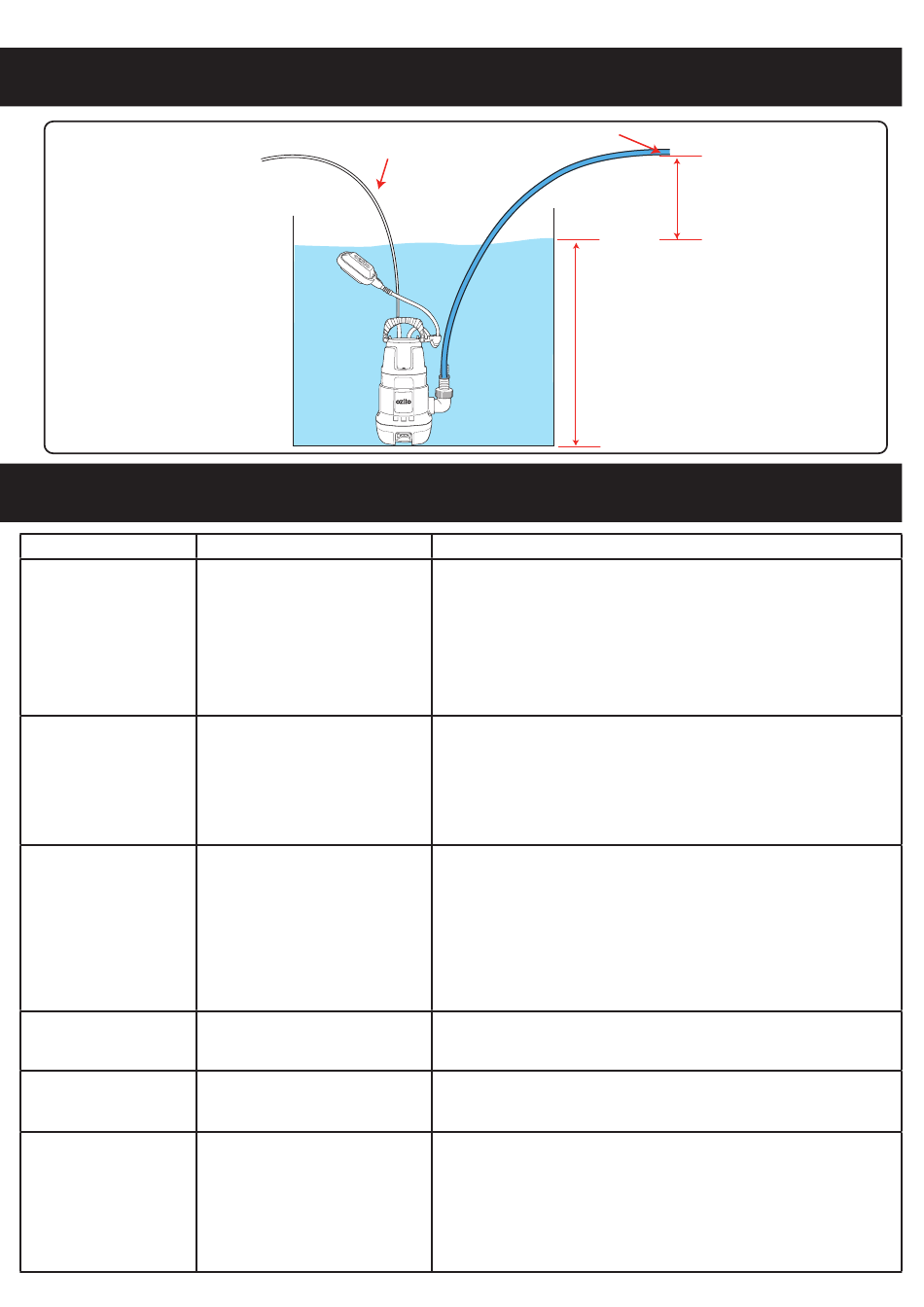

INSTALLATION
Water container
TROUBLE SHOOTING
Problem
The pump does not start,
or pump water
The pump does not supply water
when the motor is running
The pump flow rate is reduced
Pump will not turn off, even
though the water level is low
Hose/tube does not stay on the
universal adaptor when water is
travelling through
The pump operates intermittently
Power cable: 10m
Water level
Pump
Possible Cause
Pump is not connected to the power supply
Float switch has not been activated, water
level too low
The impellor is stuck
The thermal overload protection is activated
The motor is damaged
The suction base is obstructed/blocked
Air lock in the hose/tube and/or pump (air
bubbles)
Discharge hose/tube (not included) is kinked
damaged or blocked.
The max head / immersion is exceeded
The suction base is partially obstructed/
blocked
The hose/tube is obstructed
Air leak in the suction line or joints
Incorrect assembly leads to air and water
leakage in the discharge lines
The float switch is stuck in the "on" position
The hose/tube is slightly wider than the
dimension of the universal adaptor
The suction base is obstructed/blocked
Incorrect voltage is being used
The fluid contains particles thicker than 35mm
The motor is faulty or damaged
Water level is below 50mm
Discharge point
Max.
immersion
depth: 7m
Solution
Check that the pump is connected to the mains power supply
Manually raise the position of the float switch
Turn pump off and inspect and clean obstruction
Wait for the motor to cool and it will automatically start operation
Contact Ozito customer service
Clean the suction base of any foreign matter and debris
Perform several start-ups in order to remove all the air or lift and tilt the pump slightly while the
pump is running
Un-kink the discharge hose/tube. Or replace hose/tube
Disconnect the mains power and check the discharge outlet for any foreign matter
Reduce below the max head / immersion rating.
Clean the suction base of any foreign matter and debris
Remove the obstructions
Check the suction line connections for air leaks and tighten or fix where found
Ensure the discharge lines are the correct length and all assembly instructions are adhered to
Ensure that the float switch is free to operate normally. Contact Ozito customer service if the
problem still occurs
An adhesive can be used inside the hose/tube to prevent this or Teflon tape can be fixed
around the universal adaptor or a hose clamp can be used
Clean the suction base of any foreign matter and debris
Ensure the pump is connected into 230-240V power supply
Ensure the pump is not being used with particles thicker than 35mm.
Contact Ozito customer service
Ensure the water level is above 50mm
Max.
head:
8m
