HeatSeal D Series Operating & Service Parts Manual

Hide thumbs Also See for D Series:

Advertisement

Table of Contents

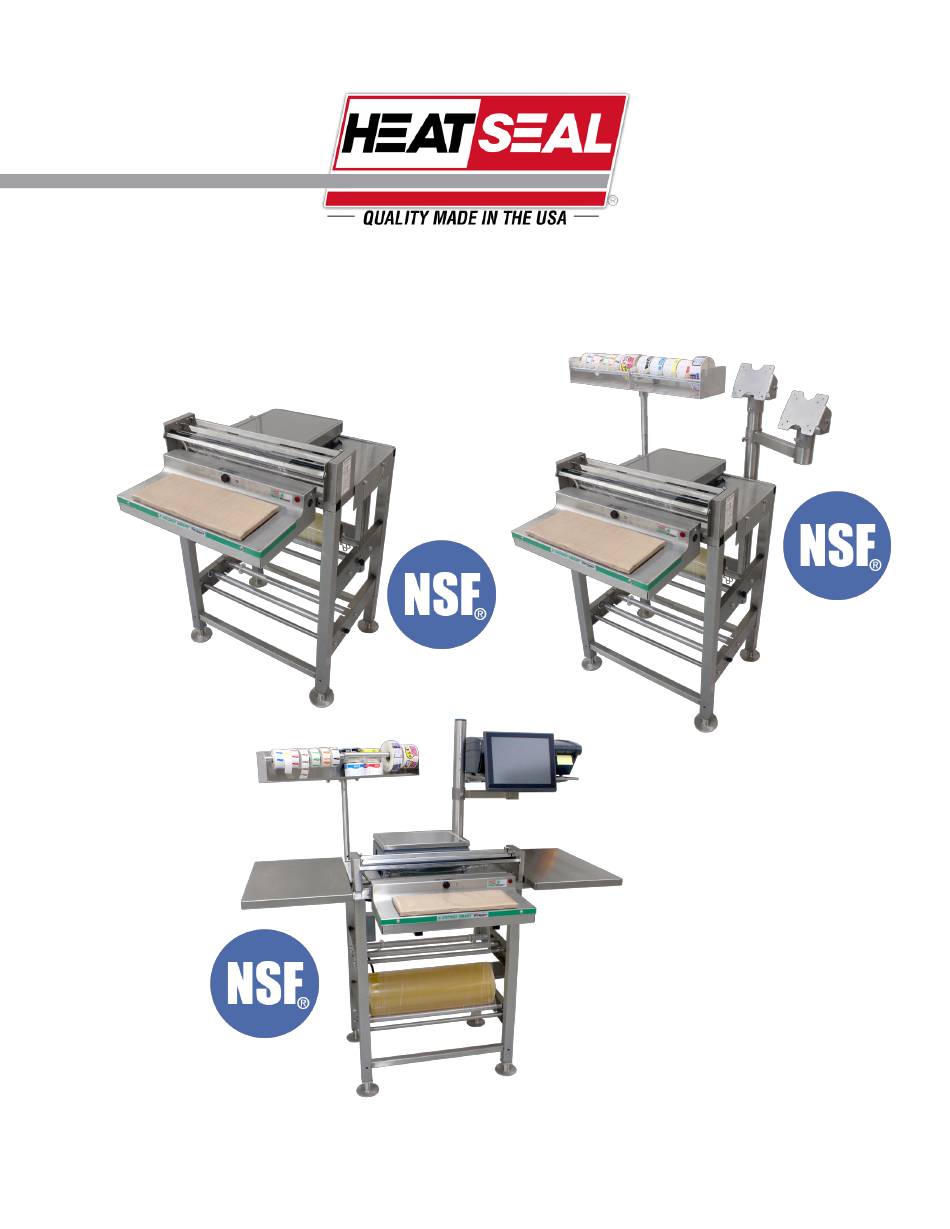

OPERATING & SERVICE PARTS MANUAL
6" x 15" Seal Plate
*Scale pictured is not included
Certified
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT
SM20ES ENERGY SMART
Series D
Certified
WRAPPER
®
SM20ES – C6B2WWBPXLD
6" x 15: Seal Plate with Optional Left &
Right Wings, Label Dispenser and
Printer Shelf
*Scale and printer pictured are not included
Certified
6" x 15" Seal Plate with
Optional Label Dispenser and
Monitor Mount
*Scale pictured is not included
Revised 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D Series and is the answer not in the manual?

Questions and answers

Related Manuals for HeatSeal D Series

Summary of Contents for HeatSeal D Series

  • Page 1 OPERATING & SERVICE PARTS MANUAL SM20ES ENERGY SMART WRAPPER ® Series D Certified Certified 6” x 15” Seal Plate 6” x 15” Seal Plate with *Scale pictured is not included Optional Label Dispenser and Monitor Mount *Scale pictured is not included SM20ES –...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Machine Components & Electrical Rating ..............3 Cradle Mount Film Setup ....................5 Recommended Maintenance ..................6 Troubleshooting Guide ....................7 Control Board Assembly ....................9 Service Parts Information ................... 10 Revised 2021...

  • Page 3: Machine Components & Electrical Rating

    MACHINE TECHNOLOGY & COMPONENTS ENERGY SMART® TECHNOLOGY  The Energy Smart® Wrapper is an innovative system that incorporates an “Instant On” seal plate with the ability to go from ambient to sealing temperature in a matter of seconds. The wrapper uses a photo eye to see when a store associate is wrapping a package and automatically initiates a heat cycle (approximately 3 seconds).
  • Page 4 MACHINE TECHNOLOGY & COMPONENTS MOISTURE RESISTANT BARRIER  In addition to the non-stick cover, the seal plate itself is wrapped in heavy duty Kapton™ Tape in order to protect the seal plate from water and other liquids that it may be exposed to during regular use and cleaning maintenance.

  • Page 5: Cradle Mount Film Setup

    CRADLE MOUNT FILM SETUP FILM THREADING - CRADLE MOUNT  Film threading is very important to achieve proper film tensioning.  Route the lower film first.  Facing the tension knob side of the machine, the film should come off the roll counter-clockwise and go in-between the two rollers it sits on.

  • Page 6: Recommended Maintenance

    RECOMMENDED MAINTENANCE * MAKE SURE TO TURN OFF THE UNIT, PULL THE PLUG AND LET THE MACHINE COOL DOWN BEFORE CLEANING * NON-STICK COVER & SEAL PLATE  Due to the advancement of this technology, it is important to keep the non-stick cover in good condition. It is recommended to replace the non-stick cover at least once every (3) months, to protect the seal plate, and maintain a sanitary surface.

  • Page 7: Troubleshooting Guide

    TROUBLESHOOTING Possible Cause(s) Symptom Solutions Power Switch Not Turned Turn switch to 'ON' position to 'ON' Position Press & hold the reset button for (3) seconds. If GFI does not reset, Machine Has GFI Tripped open the electrical box to identify and fix short/ground fault. If GFI still No Power does not reset, replace the GFI.
  • Page 8 TROUBLESHOOTING Possible Cause(s) Symptom Solutions A tripped circuit breaker will have a white exposed top. Push the circuit breaker tab back in to reset. If breaker cannot be reset, open Circuit Breaker the electrical box to identify and fix short/ground fault. If breaker still Tripped/Failure does not reset, replace it.

  • Page 9: Control Board Assembly

    CONTROL BOARD ASSEMBLY 120 VAC NEUTRAL HEATER OUT PRODUCT DETECTION (+) THERMISTOR (-) THERMISTOR Revised 2021...

  • Page 10: Service Parts Information

    SERVICE PARTS INFORMATION BILL OF MATERIALS FOR MAJOR ASSEMBLIES ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6 x 15 5901-001 Non-stick Cover, 8 x 15 6137-245 Replacement 6 x 15 Seal Plate Kit Replacement 8 x 15 Seal Plate Kit (Still Series B 8 x 15) 6137-150 6137-094 Hot Rod Replacement Kit Includes : (1) Square Boardless Cut Off Rod with 1 FT Wire Secure...
  • Page 11 SERVICE PARTS INFORMATION 10,11 BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION Non-stick Cover, 6” X 15” 5901-011 Non-stick Cover, 8” x 15” 5901-001 Replacement 6 x 15 Seal Plate Kit 6137-245 (Still Series B 8 x 15) 6137-150 Replacement 8 x 15 Seal Plate Kit 6 x 15: 1818-037...
