Summary of Contents for HeatSeal 200ES

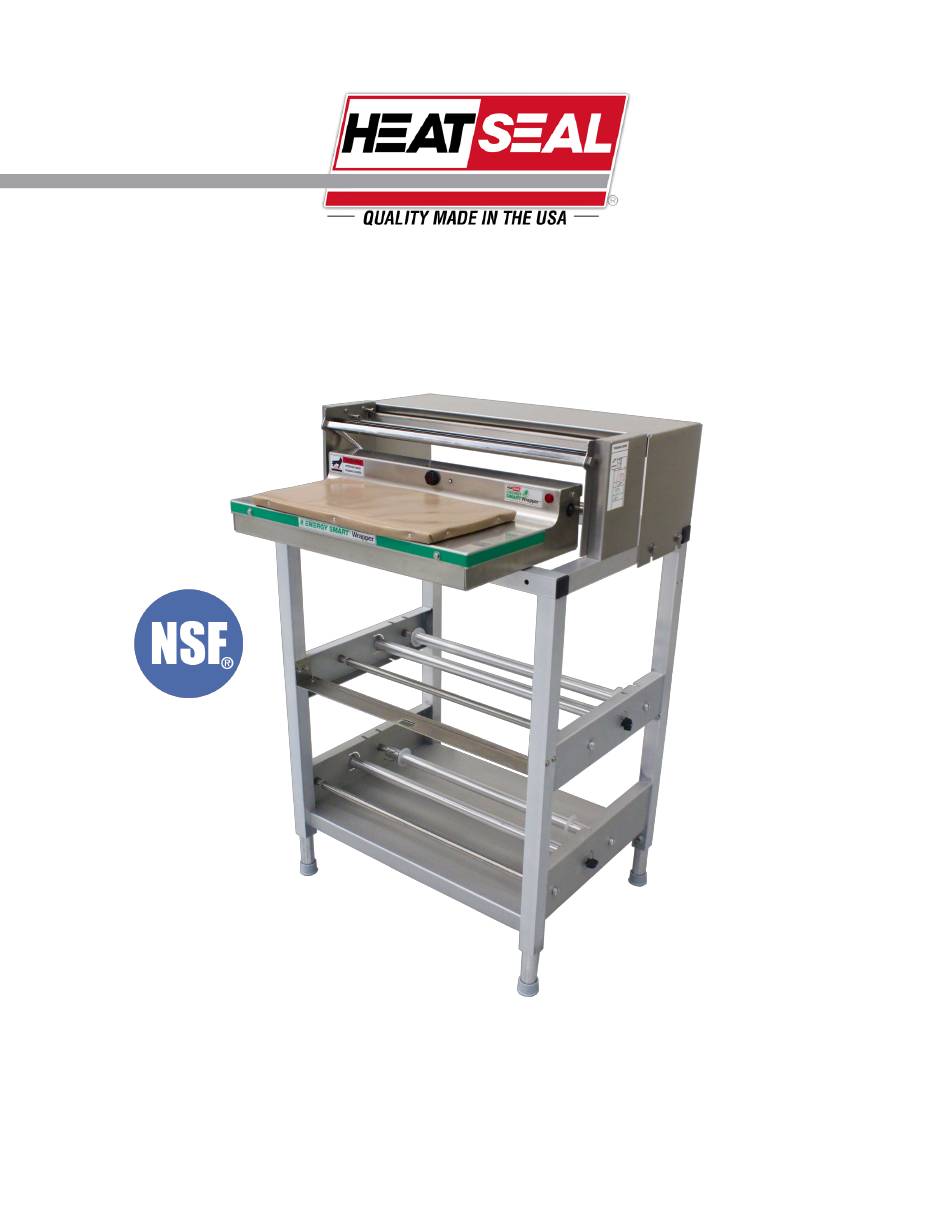

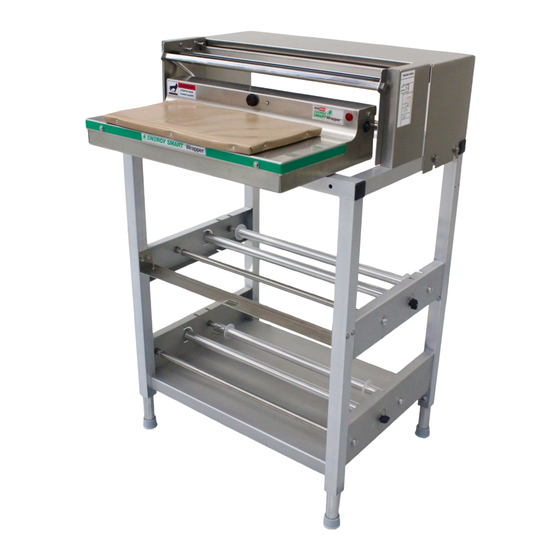

- Page 1 OPERATING & SERVICE PARTS MANUAL 200ES ENERGY SMART WRAPPER Certified 200ES-C6AXXXB *pictured with optional Paper Cutter READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT Revised 2019...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Components & Electrical Requirements ............3 Preliminary Setup ......................5 Cradle Mount Film Setup Recommended Maintenance ..................6 Guide For Optional Paper Cutter .................. 7 Troubleshooting Guide ....................8 Control Board Assembly ..................... 10 Service Parts Information ................... 12 Major Assemblies Electrical Box Components Revised 2019... -
Page 3: Machine Components & Electrical Requirements
Do NOT use the seal plate as a cutting surface, this will damage the heating foil and non-stick cover. Seal plate damage voids the warranty. ELECTRICAL REQUIREMENTS The Model 200ES requires 120 volts, 60Hz, 132 watts *200ES pictured with optional Paper Cutter Revised 2019... - Page 4 A dual-colored light (3) will change from yellow, when the plate is heating, to red when the plate is at film sealing temperature. *200ES pictured with optional Paper Cutter GFCI To maintain circuit protection and integrity, a GFCI (4) is installed in the electrical box, and may need to be reset if wrapper gets wet or other ground faults arise.
-
Page 5: Preliminary Setup
PRELIMINARY SETUP - CRADLE MOUNT FILM THREADING - CRADLE MOUNT There is a film threading diagram located on the right side of the unit. Film threading is very important to achieve proper film tension. Route the bottom film first. ... -
Page 6: Recommended Maintenance
Repeat degreaser as needed until the rod is clean. CLEANING THE UNIT The 200ES can be completely wiped down using mild cleaning detergent and soft rags or paper towels. Do not hose down or submerge the unit. Revised 2019... -
Page 7: Guide For Optional Paper Cutter
GUIDE FOR OPTIONAL PAPER CUTTER FILM THREADING - PAPER CUTTER The paper cutter allows for up to a 20” roll of butcher paper to be loaded onto the bottom cradle (bottom cradle only). Place the paper roll onto the back idle roller (1) and the tension roller (2). -
Page 8: Troubleshooting Guide
3) Reset new GFCI. Red Power Light at right front of unit SHOULD glow. 4) If GFCI trips, seal plate may have moisture inside. Allow 1-2 days to dry out and then retry. Figure 1 200ES Electrical Box Pictured Revised 2019... - Page 9 TROUBLESHOOTING Symptom Possible Solution Unit has power Verify power. Does the LED light turn ON when photo eye is triggered? but the Seal Plate 1) If neither the LED or Seal Plate work, verify that the 20 Amp Circuit Breaker has not does not work tripped.
-
Page 10: Control Board Assembly
CONTROL BOARD ASSEMBLY 120 VAC NEUTRAL HEATER OUT PRODUCT DETECTION (+) THERMISTOR (-) THERMISTOR Revised 2019... - Page 11 CONTROL BOARD ASSEMBLY Revised 2019...
-
Page 12: Service Parts Information
Replacement 6 x 15 Seal Plate Kit 6137-150 Replacement 8 x 15 Seal Plate Kit 6137-094 Hot Rod Replacement Kit Includes: (1) Square Boardless Cut Off Rod with (1) O-Ring and (1) Strain Relief Grommet 2135-040 Foot Glide 6137-076 Stainless Steel Wrapping Bridge, 200ES Revised 2019... - Page 13 SERVICE PARTS INFORMATION BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION 1818-035 6” x 15” Energy Smart® Control Board, Programmed 1818-036 8” x 15” Energy Smart® Control Board, Programmed 6340-070 Circuit Board Mounting Kit Includes: (4) Plastic Clip Stand-Offs 1875-055 Terminal Block 1815-030...
