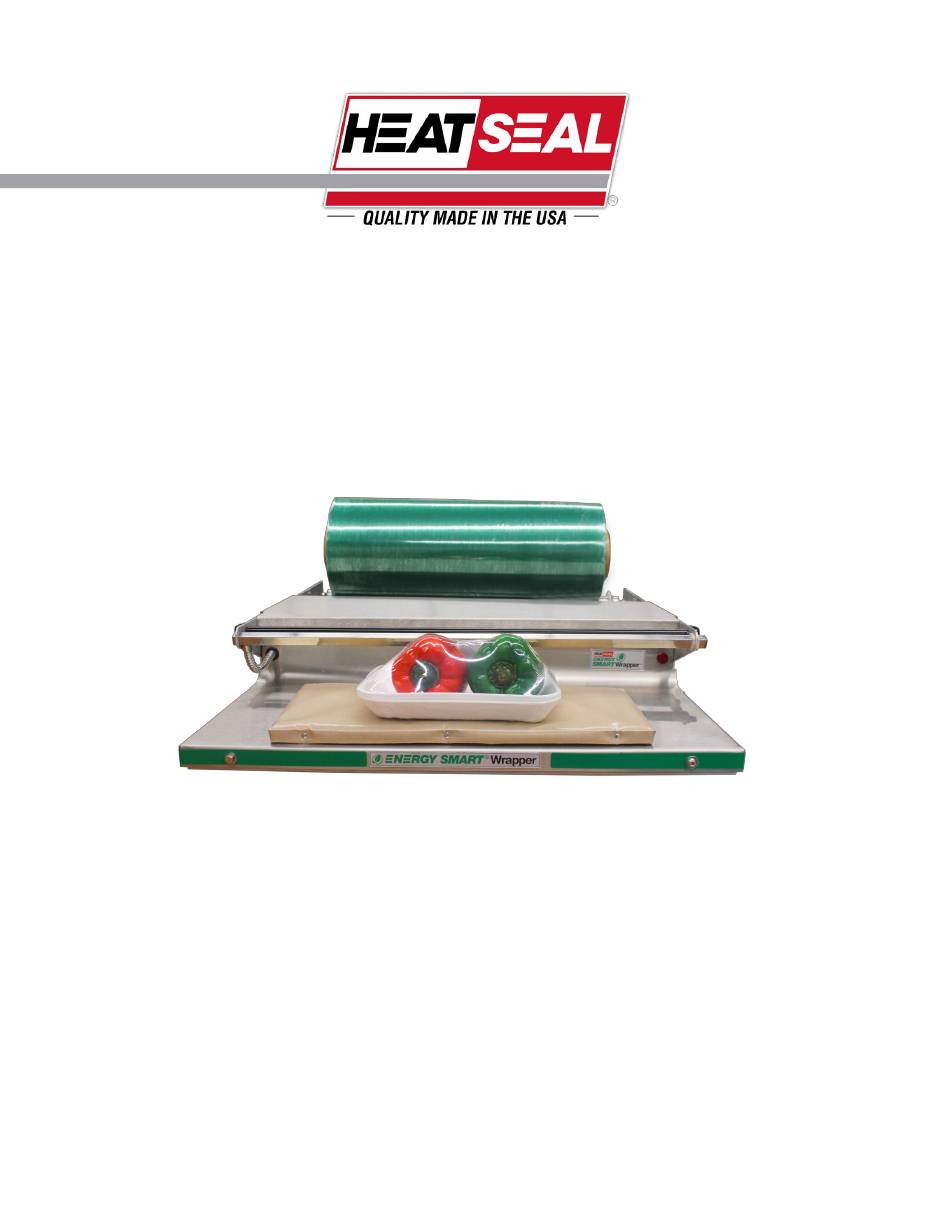

- Page 1 OPERATING & SERVICE PARTS MANUAL 700ES ENERGY SMART WRAPPER SERIES D Revised 2021 READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Technology & Components ................3 Preliminary Setup ......................5 Recommended Maintenance ..................6 Troubleshooting ......................7 Heater Control Board Assembly ................... 8 Service Parts Information ..................... 9 Revised 2021... -
Page 3: Machine Technology & Components
MACHINE TECHNOLOGY & COMPONENTS ENERGY SMART TECHNOLOGY ® The Energy Smart Wrapper is an innovative system that incorporates an “Instant On” seal plate with the ability to go from ® ambient to sealing temperature in 3 seconds. The high speed seal plate, in combination with a photoeye actuator, allows the operator to seal a product on demand and to save energy when the wrapper is not in use. - Page 4 MACHINE TECHNOLOGY & COMPONENTS STAINLESS STEEL BRIDGE The stainless steel bridge is not recommended as a cutting surface and should not be used as one. INDICATOR LIGHT The LED light near the center of the unit (2) illuminates to indi- cate that the heat cycle is in process.
-
Page 5: Preliminary Setup
PRELIMINARY SETUP FILM THREADING Film threading is important to achieve proper film tensioning. Proper film tensioning allows for the easiest cutting of film. Facing the tension knob (1) side of the machine, the film should come off the roll counter-clockwise and route down and between the two rollers. -
Page 6: Recommended Maintenance
RECOMMENDED MAINTENANCE MAKE SURE TO TURN OFF THE UNIT, UNPLUG AND LET THE MACHINE COOL DOWN BEFORE CLEANING * NON-STICK COVER & SEAL PLATE The seal plate can be cleaned, as needed, with a mild spray degreaser. This should be applied to a soft cloth or paper towel and then wiped on the plate while cold. -
Page 7: Troubleshooting
TROUBLESHOOTING Possible Solution Symptom Verify the unit is plugged into a 15 Amp circuit, and the Power Switch is set to the “ON” position. GFCI Tripped (Red LED on GFCI will be illuminated and rectangular button Machine has no labeled “RESET” will be popped out) Press & hold the reset button for (3) power. -
Page 8: Heater Control Board Assembly
HEATER CONTROL BOARD ASSEMBLY 120 VAC NEUTRAL HEATER OUT PRODUCT DETECTION (+) THERMISTOR (-) THERMISTOR Revised 2021... -
Page 9: Service Parts Information
SERVICE PARTS INFORMATION BILL OF MATERIALS FOR MAJOR SUB-ASSEMBLIES ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6 x 15 6137-245 Replacement 6 x 15 Seal Plate Kit, Series D Hot Rod Replacement Kit Includes: (1) Square Cutoff Rod, 6137-094 (1) Rubber Grommet, (1) Screw, #8-32 x 3/8”... - Page 10 ELECTRICAL BOX & HOT PLATE PARTS BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION 1818-037 Programmed Circuit Board for 6” x 15” Mica 6340-070 Circuit Board Mounting Kit Includes: (4) Plastic Clip Stand-Offs 1875-055 Terminal Block 1815-030 1A Circuit Breaker 1815-031 20A Circuit Breaker...
