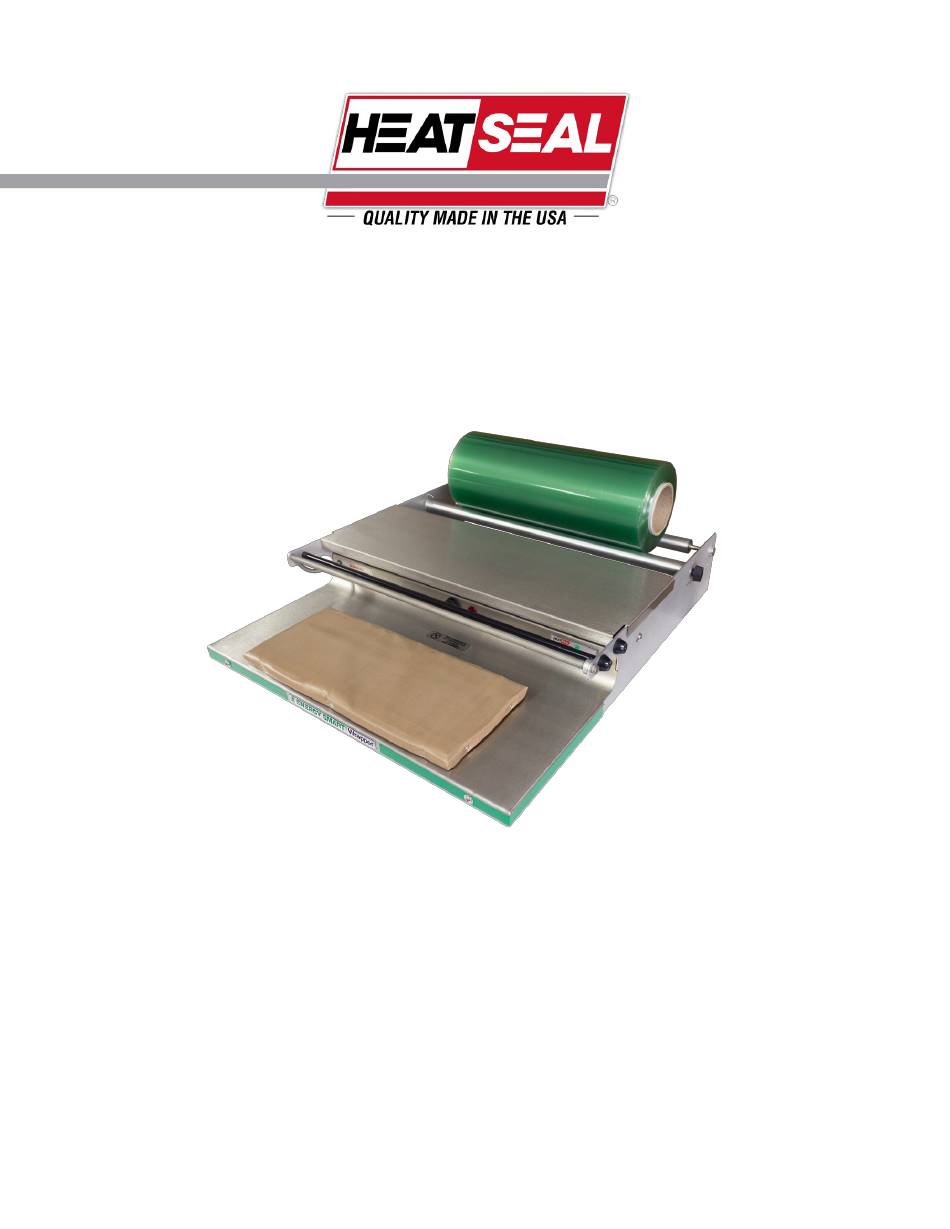

- Page 1 OPERATING & SERVICE PARTS MANUAL 700ES ENERGY SMART WRAPPER READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT Revised 2017...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Components & Electrical Requirements ............3 Preliminary Setup ......................5 Recommended Maintenance ..................6 Troubleshooting Guide ....................7 Hot Rod Circuit Board Test ..................10 Service Parts Information ................... 11 Revised 2017... -
Page 3: Machine Components & Electrical Requirements
Do NOT use the seal plate as a cutting surface, as this will damage the thin heating foil and Non-stick cover plate. Seal plate damage voids the warranty. ELECTRICAL REQUIREMENTS The Model 700ES requires 115 volts, 16 amps. (20A breaker required) Revised 2017... - Page 4 MACHINE TECHNOLOGY & COMPONENTS STAINLESS STEEL BRIDGE The wrapper comes with a stainless steel bridge (1) that can be utilized as a working surface while preparing products. The stainless steel bridge is not recommended as a cutting surface. OPERATOR INDICATOR LIGHT ...
-
Page 5: Preliminary Setup
FILM THREADING Film threading is very important on the 700ES cradle style wrappers to achieve proper film tensioning. Facing the tension knob (1) side of the machine, the film should come off the roll counter-clockwise and go through the two rollers it sits on. -
Page 6: Recommended Maintenance
Wipe the surface clean of debris and residue with clean paper towels or cloths. CLEANING THE UNIT The 700ES can be completely wiped down using mild cleaning detergent and soft rags or paper towels. Do not hose down or submerse the unit. -
Page 7: Troubleshooting Guide
Verify 120V is being supplied to the light when the Seal Plate is actuated. If voltage is Light is not present, replace the 6 x 15 Seal Plate (Part # 6340-037). working properly. Figure 1 700ES Electrical Box Pictured Revised 2017... - Page 8 TROUBLESHOOTING Symptom Possible Solution Photo eye Slowly adjust the set screw on the photo eye inside of the electrical box. Clock wise to actuating too increase sensitivity, counterclockwise to decrease sensitivity. often or not Unit has power Does the Red Indicator Light turn ON when the unit is cycled? but the Seal 1) If neither the Light nor Seal Plate work, verify that the 25 Amp fuse is good.
- Page 9 TIMER BOARD ASSEMBLY Revised 2017...
-
Page 10: Hot Rod Circuit Board Test
POWER IN POWER IN TO HOT ROD BLACK WIRES TO HOT ROD TO HOT ROD WIRES TO HOT ROD Revised 2017... -
Page 11: Service Parts Information
SERVICE PARTS INFORMATION BILL OF MATERIALS FOR MAJOR SUB-ASSEMBLIES ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6 x 15 6340-077 Replacement 6 x 15 Seal Plate Kit 6340-062 Hot Rod Replacement Kit Includes: (1) Cutoff Rod, TEC100, 22 1/2”LG, (1) Cutoff Rod Col- lar, 3/4OD, 25/64 ID, 1/4 THK, 8/32 Hole, (1) Set Screw in Hot Rod Collar, (1) Split Electrical Bushing, 3/8 dia, mtg hole. - Page 12 ELECTRICAL BOX & HOT PLATE PARTS BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION 1818-026 Circuit Board Assembly, Energy Smart Wrapper 1818-001 Cut off Element Circuit Control Board, 120V 1821-034 1 Amp Fuse, MDA, Slo-Blo 1821-037 25 Amp Fuse, Fast Blow, 125V, ABC 6340-067 Fuseholder Kit 1Amp Includes: (1) Fuseholder, Panel Mtg, 30A, 1/4 dia x 1-1/4 LG Fuse Size, (1) Fuse, 1 Amp, MDA, Slo-Blo...
- Page 13 Revised 2017...
