- Page 1 CAVIDYNE LLC 5077 Fruitville Rd., Suite 109-157 Sarasota, FL 34232 Phone: (352) 275-5319 Operation & Maintenance...
- Page 2 Manual Model 2540-E CAVIDYNE LLC is not responsible for damages or injuries resulting from a failure to comply with instructions in this manual. Please read and study the entire manual carefully before use. The CaviBlaster model 2540-E60 must only be operated and maintained by trained personnel.
-
Page 3: Table Of Contents
6.3 Inspection/Cleaning of Water Inlet Strainer ..............29 6.4 Inspection / Maintenance of the Zero-Thrust Gun ............30 7.0 WINTERIZATION ........................ 31 8.0 TROUBLESHOOTING ......................32 9.0 REPLACEMENT PARTS ....................34 Page 3/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 4: Unit Specifications
63” x 47” x 50” (166 cm x 119 cm x 127 cm) Maximum Pressure Hose Length 600 LF (200 meters) of 3/4” diameter Power Unit Weight (Dry) 2,550 LBS (1160 KG) Zero-Thrust Gun Weight 4.4 LBS (2 KG) Page 4/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -

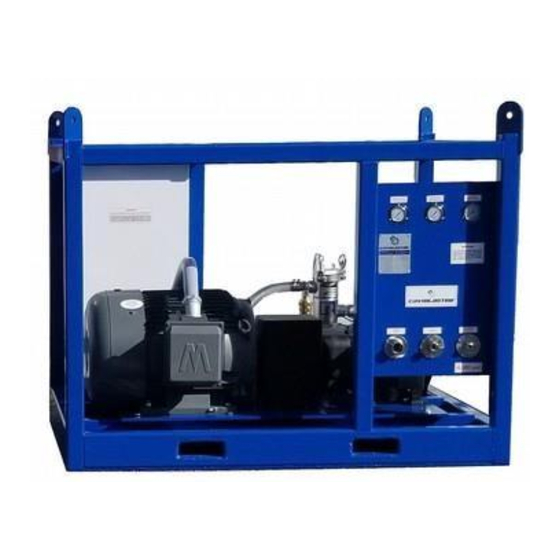

Page 5: General Description
The unit is equipped with many features to maintain operator safety while operating at pressures of 4,000 psi (276 BAR) with safety overload protection rating to 5,000 psi (344 BAR). Page 5/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 6: Figure 2.1 - Caviblaster 2540-E60 General Features
Figure 2.1 – CaviBlaster 2540-E60 General Features Page 6/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 7: Using This Manual
2.1 Using this manual While every effort has been made to ensure the accuracy and completeness of the content of this documentation, CaviDyne, LLC, its employees or associated organizations shall have neither liability nor responsibility to any person or entity with respect to any loss or damage arising from its use. -
Page 8: Conventions
End of Section Gallons Per Minute Horsepower Liters Per Minute Personal Protective Equipment Pounds Per Square Inch (without suffix, assumed to be gauge pressure). Z-T Gun Zero-Thrust Gun High Pressure Pump Page 8/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 9: Safety Information
Never direct the jet streams at a person or animal. Never direct the jet streams toward power lines or other high voltage equipment. Page 9/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 10: Personal Protective Equipment
If the diver is not wearing a diving helmet, hearing protection is recommended. CAVIDYNE suggest wearing vented earplugs, such as “Doc’s Proplugs”, for diver hearing protection. The operators of the CaviBlaster system should always wear neoprene or heavy rubber gloves to provide protection to the hands and, in particular, to the nails. - Page 11 Components used throughout this assembly were specifically designed or selected to safely meet the unique high-pressure requirements. Only replace parts with those recommended by or supplied by CAVIDYNE LLC. Any unapproved modifications will void the equipment warranty. Unauthorized modification or part substitution can result in serious personal injury or property damage.
-
Page 12: Installation
4.1 Uncrating and Lifting Unpack the equipment and inspect for damage. If damage is found, immediately contact CAVIDYNE LLC and the shipping company. If the unit will not be installed immediately, provide adequate indoor storage to protect against damage. If there are missing parts/spare parts, contact freight carrier or insurance company. -
Page 13: Installation Location
Take note of frequently serviced areas such as the in-line strainers and motor couplings. Allow Access For General Service Allow Access To The Hose Connections Panel Allow Access To Electric Panel Page 13/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 14: Initial Set-Up
8) Close and lock the control panel door. 9) Connect the feed or suction hose (See Section 4.3.2). 10) Connect the bypass hose (See Figure 2.2). 11) Connect the pressure hose (See Figure 2.2). Page 14/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 15: Connecting The Water Source
Note: The feed pump may require upwards of 5 to 7 minutes to draw sufficient water to prime the system before starting the main pump system. Page 15/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 16: Water Supply Conditions
Connect the cam-lock socket on the 1-1/2” clear PVC feed hose to the water inlet connection on the control panel (See Figure 2.2). Place the other end of the hose in the water supply. Page 16/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 17 Ensure that the water source can reliably deliver the maximum pump flow of 50 GPM (190 LPM). A minimum flow of 50 GPM (180 LPM) is recommended Page 17/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319...
- Page 18 Ensure that the feed hose is connected to the inlet connection and the water supply is on prior to starting the pressure pump. Failure to supply water to the pressure pump will cause damage to the pump. (EOS) Page 18/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319...
-
Page 19: Operation
(See Figure 6.1). Clean or replace as necessary. 4) Check for proper pressure pump oil level (See pump Owner’s Manual found in the Appendix). Add oil (SAE 30 non-detergent) if necessary. 5.2 Startup of the CaviBlaster Page 19/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 20 If the diver is not wearing a helmet, hearing protection is recommended. CAVIDYNE LLC suggests vented earplugs such as “Doc’s Proplugs” for diver hearing protection. Wear neoprene or rubber gloves to protect the hands and follow all safety regulations that may be applicable to the work being performed.
-
Page 21: Normal Operation
(276 BAR) with the gun submerged and the gun trigger in the open or “ON” position. For best results, repeat this calibration procedure if cleaning performance degrades, or every 3 months at a minimum. Page 21/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 22 Submerge the gun because of the danger of the operator coming in contact with either of the water streams from the cavitating or zero-thrust nozzles, Cavidyne does NOT recommend calibrating the gun out of the water. Use extra care to avoid both water streams if doing so.
-
Page 23: Figure 5.1 - Zero-Thrust Gun Pressure Calibration
Figure 5.1 – Zero-thrust gun Pressure Calibration Page 23/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 24: Recommendations For Effective Results
“ON” position (See Figure 5.3) while under water. Revert back to step 5.2 of the operating instructions when the diver or replacement is ready to continue cleaning. Page 24/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 25: Figure 5.2 - Zero-Thrust Gun Position For Best Results
Figure 5.2 – Zero-thrust Gun Position for Best Results This space intentionally left blank 5.6 Shutting Down the CaviBlaster Page 25/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 26 Flush the system and rinse the power unit with fresh water at the end of the day if the system has been used with seawater. This space intentionally left blank Page 26/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319...
-
Page 27: Maintenance
Equipment must be OFF and pressure released from all hoses prior to performing any service work. Only replace parts with those supplied or approved by CAVIDYNE. Use of any other parts may lead to equipment failure and severe personal injury. CaviBlaster must be flushed and rinsed with fresh water after each use in sea water. -
Page 28: Basic Preventive Maintenance Recommendations
6.2 Pump Service The high pressure water pump requires minimal maintenance. The pump oil level should be checked on a regular basis. The pump crankcase with Gear box holds Page 28/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 29: Inspection/Cleaning Of Water Inlet Strainer
7) Loosen and remove cap of main filter assy. 8) Lift filter media from housing and inspect for debris. Rinse or replace media as necessary. 9) Inspect O-ring under the cap for damage. Replace cap and tighten. Page 29/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 30: Inspection / Maintenance Of The Zero-Thrust Gun
This will minimize the possibility of corrosion or mineral crystals from forming that would freeze the pin or valve cone. 4. Do not use WD-40 for long term storage. Page 30/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 31: Winterization
3. Attach a minimal amount of pressure hose to the pressure connection on the control panel (See Figure 2.2) and direct the open outlet of the hose into the antifreeze tank. Page 31/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... -
Page 32: Troubleshooting
Check input line connections for proper voltage Check motor contactor for proper 3. MOTOR OVERHEATS Overload – compare actual (measured) amps with nameplate rating Locate and remove source of excessive friction in motor or load Page 32/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 33 Check for leaks in the water lines Check for an air-lock in the water inlet lines Verify that the feed pump is delivering water Pump mechanical failure Bad electrical connections Page 33/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319...
-
Page 34: Replacement Parts
9.0 REPLACEMENT PARTS CaviBlaster 2540-E60 POWER UNIT REPLACEMENT PARTS RECOMMENDED QUANTITY PER PART PART DESCRIPTION ORDER QTY ASSEMBLY NUMBER Main filter media (sock) CD-FILTER-BAG Inlet strainer cartridge 3260.02 Page 34/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319... - Page 35 Trigger valve repair kit – large gun 203300490 All parts can be ordered CAVIDYNE, LLC from: 5077 Fruitville Rd., Suite 109-157 Sarasota, FL 34232 Phone: (352) 275-5319 www.cavidyne.com (EOS) Page 35/35 For more information please email sales@cavidyne.com or call 1-(352)275-5319...
