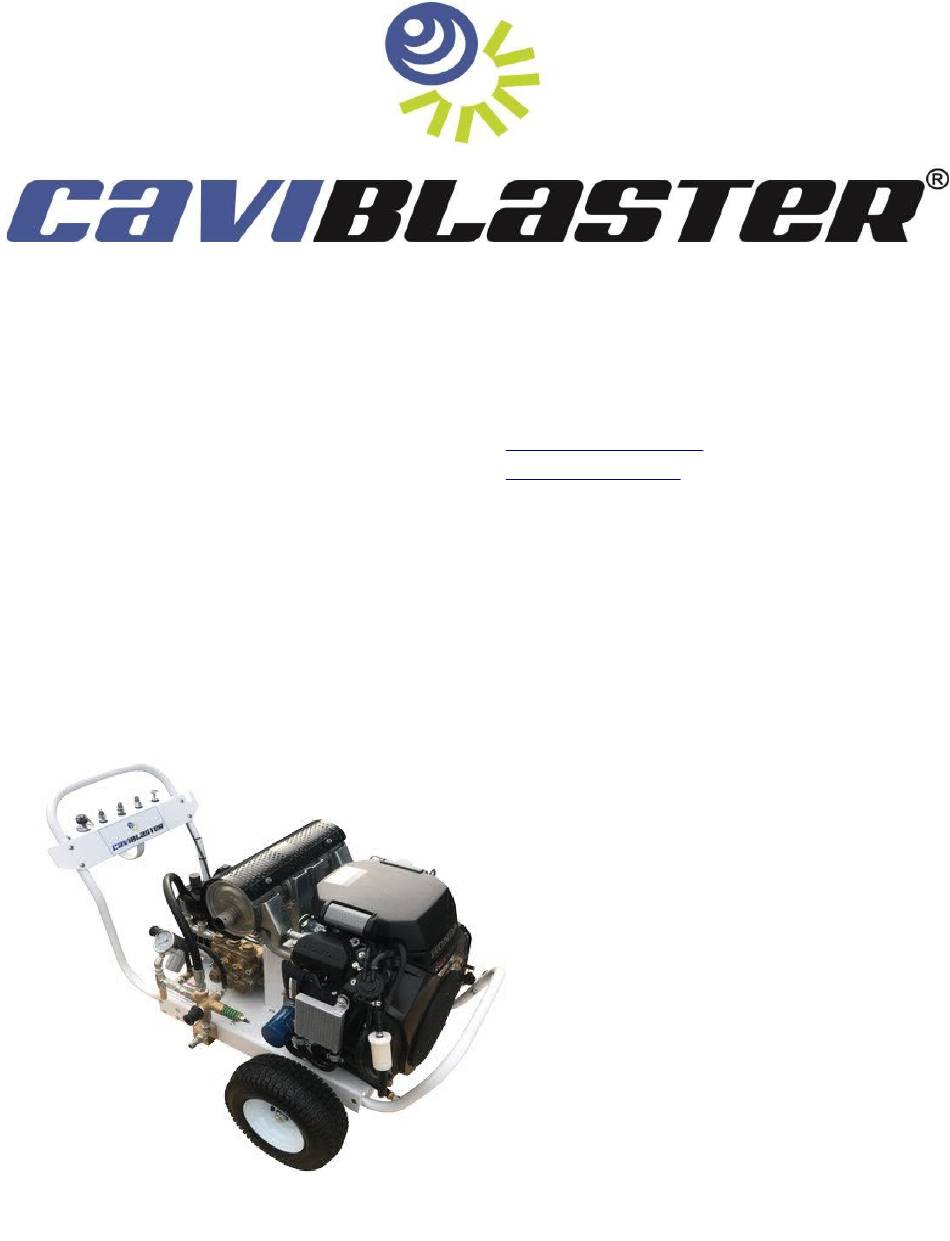

- Page 1 CAVIDYNE LLC 5077 Fruitville Road Suite 109 - 157 Sarasota, FL 34232 USA Phone: (352) 275-5319 www.caviblaster.com www.caviblaster.cl Operation & Maintenance Manual Model 1228-G...
-
Page 2: Table Of Contents
VII. Routine Maintenance for the CaviBlaster System …………………... 10 VIII. Oil Change(s) of the CaviBlaster System …………………………... 11 Summarizing Daily Operation Instructions ………………………... List of Figures ………………………………………………………. 13 Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 3: Preparing The System Before Operation
7.- Connect the dual ¼” black rubber fuel lines (Figure # 13) from the external fuel tank to the fuel lines of the unit (figure #14), these connections are made with a quick connect fitting . Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... - Page 4 Connect the water source to the inlet of the pressure pump (Figure # 16), make sure the feed hose is connected to the pressure pump and water is present prior to starting the unit. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
-
Page 5: Starting The Caviblaster
8.- Once the diver is ready and in position, move the throttle to the MAX position (figure # 20) so the diver can start the cleaning process. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 6: Shooting Down The Caviblaster
6.- If its the end of the day, flush and rinse the unit with fresh water for 5 minutes to clean all hoses and the complete system. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 7: Recommendations For Safety Operation Of The System
If the diver is not wearing a helmet, hearing protection is recommended. CaviDyne recommends “Doc’s Pro-plugs” vented earplugs or equivalent for diver hearing protection. 3.- To activate the cleaning cavitation stream squeeze the trigger to the open or “ON”... -
Page 8: Recommendations For Better Results
(up to 2,800-psi) water stream, which can cause injury when the gun is out of the water. ALWAYS keep the gun submerged when the pressure pump is engaged. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 9: Adjusting The System For Maximum Performance
(less than ¼ gallon per minute) coming out of the bypass with the gun trigger in the open or “ON” position. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 10: Routine Maintenance For The Caviblaster System
Use single-weight lubricating oil (SAE 30 weight non-detergent) 8. Change the spring for the gun trigger every 12 months or less if required. (figure # 32) Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 11: Oil Change(S) Of The Caviblaster System
8. Put in one ¼ Non-Detergent SAE 30 ISO100 9. Place oil cap again and check the level in the pump, the middle is perfect. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 12: Summarizing Daily Operation Instructions
“ON” position while under water. 11. Remove the gun from the water. 12. Flush the system and rinse the outside of the power unit with fresh water. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 13: List Of Figures
Figure # 3 – Oil level in engine Figure # 4 – Gasoline Tank Figure # 5 – Oil filling port in pump Figure # 6 – Oil filling port in engine Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... - Page 14 Figure # 9 – By-pass Hose Figure # 10 – By-pass hose connection Figure # 11 – High Pressure Hose Figure # 12 – HP Hose Connection Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 15 Figure # 15 – PVC Feed Hose / Pump Figure # 16 – Feed hose connection Figure # 17 – Feed pump connection Figure # 18 – Feed pump On / Off switch Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 16 Figure # 21 – Zero Thrust Gun Figure # 22 – Surface lance Figure # 23 – Battery in Marine Case Figure # 24 – Low Oil Level Warning Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 17 Figure # 25 – Noise reduction muffler Figure # 26 – Pressure gauge / Manometer Figure # 27 – CaviBlaster Complete System Assembled Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 18 Figure # 31 – Air filter on top of engine Figure # 32 – ZT Gun Repair Kit Figure # 33 – ZT Gun Assembly Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 19 Figure # 34 – Additional Calibration Gauge Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 20 CaviDyne, LLC at (352) 275-5319 with any questions. CAUTION: DO NOT USE IT TO CLEAN SENSITIVE SURFACES as LED-Lights, Underwater Lights, Electronic Equipment, Etc. Page - CaviBlaster 1228-G Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
