Model: OT16
USER MANUAL
Attention!
Please keep the instruction manual properly!
To ensure your safety, please read the instruction manual carefully before using the
electric bicycle to better understand the performance of the electric bicycle.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT16 and is the answer not in the manual?

Questions and answers

Claudia Menge
July 11, 2025

i do not get my mobile to the OT16 connected. Bluetooth is switched on and on bike controller flashing. but it does not connect

willy hanssens
April 30, 2025

mes phares ne s'allument pas

Monika Pawlak
April 17, 2025

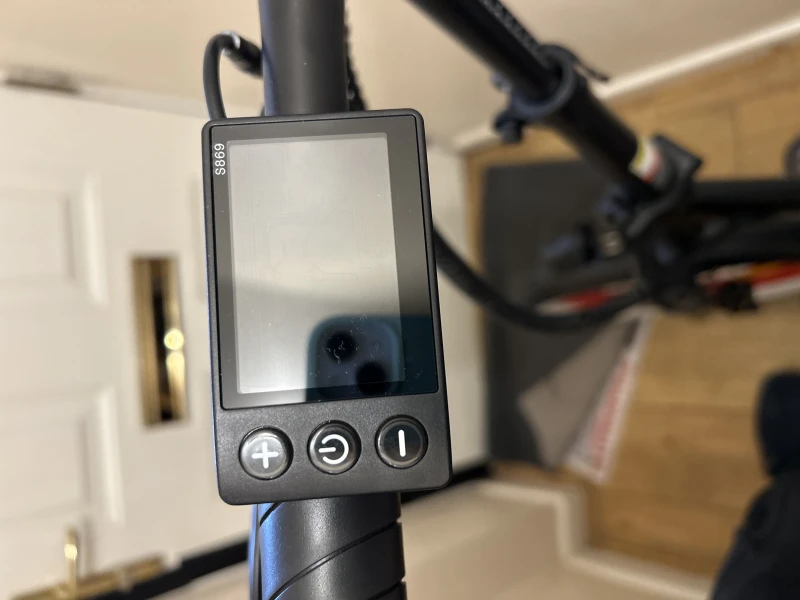

My display does not want to switch on

User image 680130f995f03

Summary of Contents for ONESPORT OT16

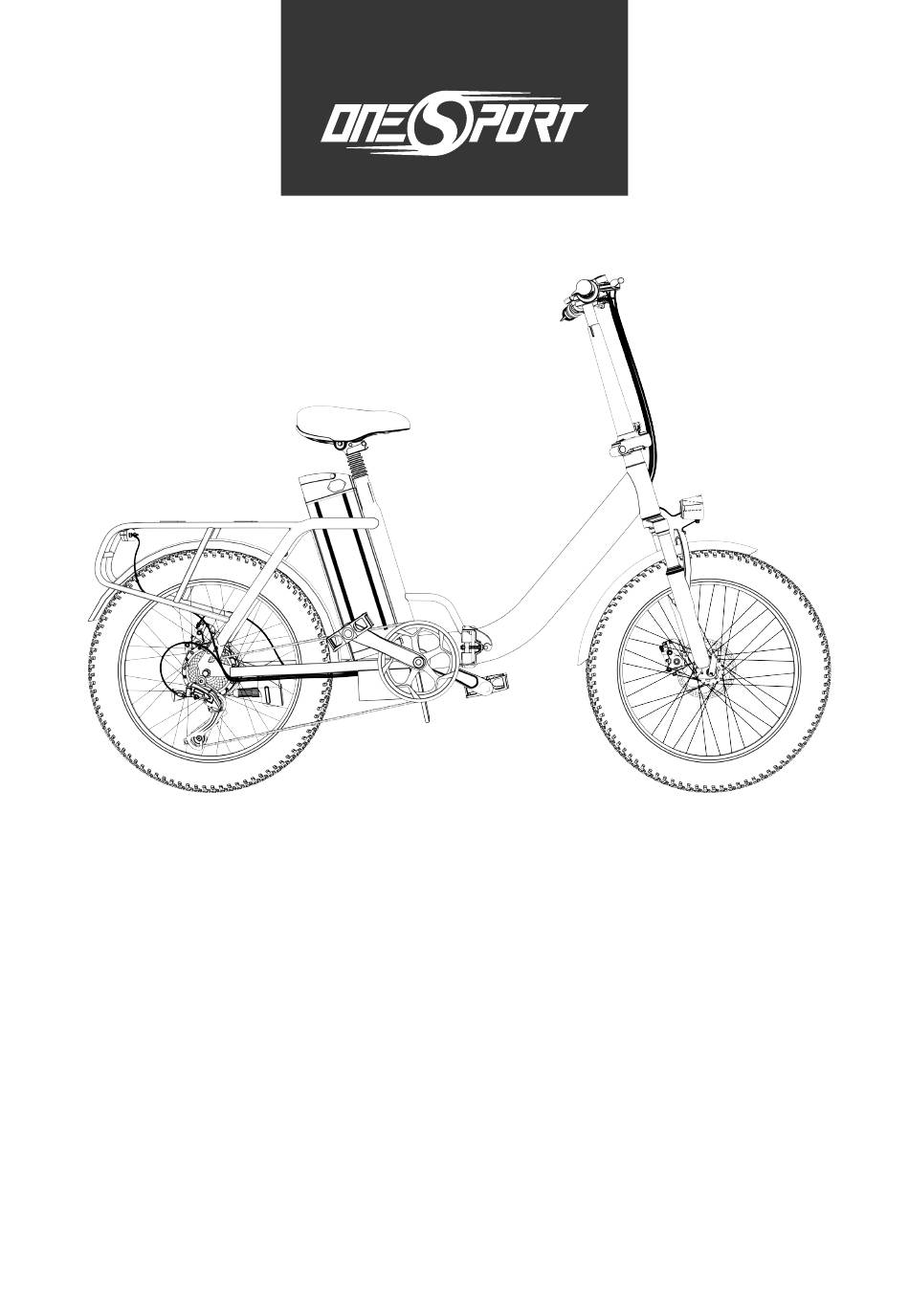

  • Page 1 Model: OT16 USER MANUAL Attention! Please keep the instruction manual properly! To ensure your safety, please read the instruction manual carefully before using the electric bicycle to better understand the performance of the electric bicycle.
  • Page 3 THANK YOU FOR CHOOSING ONESPORT : support@onesportglobal.com : @onesportebike : @Onesport : @onesport__ebike : www.onesportglobal.com/...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS -------------------------------------------------------------------------------------- WARNING ------------------------------------------------------------------------------------------------------ UNBOXING ---------------------------------------------------------------------------------------------------- WHAT'S IN THE BOX -------------------------------------------------------------------------------------- FRAME NUMBER AND MOTOR NUMBER ------------------------------------------------------------- OT16 STRUCTURE INTRODUCTION --------------------------------------------------------------------- INSTALLATION OF IN TEGRAL BODY ------------------------------------------------------------------ REMOVE THE BATTERY ----------------------------------------------------------------------------------- INSTALL THE BATTERY ----------------------------------------------------------------------------------- HOW TO CHARGE -------------------------------------------------------------------------------------------...
  • Page 5: Warning

    If you notice abnormalities in any component on the bike, take it to a licensed mechanic to be repaired or replaced immediately. ONESPORT assumes no liability for harm, injury, or death of the rider. This manual is not intended to function as a detailed service manual.
  • Page 6: Unboxing

    UNBOXING Congratulations on your purchase of a new ONESPORT OT16! Your bike and related accessories are inside your box, and the instructions below are meant to show you all the parts inside the box. Before removing the packing foam, please take out all the parts to confirm if there are any missing parts.
  • Page 7: Frame Number And Motor Number

    As shown in the picture. Please find the serial numbers stamped on your bike and keep records yourself. The motor number and frame number will be the proof of purchase for ONESPORT to honor the warranty. Also, if an electric bike is stolen, you can provide the frame number for law enforcement.
  • Page 8: Ot16 Structure Introduction

    OT16 STRUCTURE INTRODUCTION ------------ --------- ------------ ----------- ----------------- ----------------- ----------------- --------------------- 1. Handlebar 2. Headlight 3. Brake 4. Brake disc 5. Crank Shaft 6. E-bike Seat 7. Battery 8. Taillight 9. Motor 10. Front brake lever 11. On/Off button 12. Display 13.
  • Page 9: Installation Of Integral Body

    INSTALLATION OF INTEGRAL BODY 1. Push the folding handle 2. Tighten the folding 3. Open the folding tube upward and assemble the handle and close it. telescopic adjustment folding frame according to latch, insert the the arrows. telescopic tube in the direction of the arrow.
  • Page 10: Remove The Battery

    REMOVE THE BATTERY 1. Pull up the handle at the bottom of the 2. Turn the seat upward. saddle. 3. Turn the key to unlock the battery. 4. Pick up the battery handle and take out the battery. INSTALL THE BATTERY 1.
  • Page 11: How To Charge

    HOW TO CHARGE ONESPORT provides you with both whole bike charging and external battery charging for your convenience to choose. Whole bike charging mode: You can plug the charging plug into the body charging port and charge the E-Bike directly.
  • Page 12 CHARGING SAFETY Do not use a charger other than ONESPORT to charge the E-Bike. When you receive the E-Bike, please charge the battery for the first time in time to ensure that the battery is fully charged when you ride it for the first time.
  • Page 13: Instrument Introduction

    INSTRUMENT INTRODUCTION ----------- ----------- ----------------- ----------- 1. Increase gear 2. Switch on/off the Long 3. Decreasing gear button for 3 seconds to start 6. Speed display 4. Multifunctional display area 5. Battery power display 8. Total driving distance 7. Gear display Caution: The meter tries to avoid unnecessary knocks.
  • Page 14: On/Off Lcd Display

    ON/OFF LCD DISPLAY Turn on the display Press and hold the'' ''button for more than 3 seconds, and the display and controller start to work. Turn off the Display and power off Press and hold the'' ''button for more than 3 seconds, and the display will be closed.
  • Page 15: Operating The Lcd Display

    OPERATING THE LCD DISPLAY Increase Pedal Assist Level Short-Press the'' ''button. Decrease Pedal Assist Level Short-Press the'' ''button. Toggle Speed, Odometer, TRIP, Trip Timer, VOL, Average Speed Press and let go of the'' ''button. Max Speed. Keep the throttle still while driving. Press Cruise Control and hold the '' '' key for 5 seconds at the...
  • Page 16: Display Setting

    DISPLAY SETTING To change display settings, hold the button simultaneously to enter into the advanced settings menu. In this menu, clicking the'' ''button will toggle between each numbered setting. To adjust the value of each setting, click the buttons accordingly. Setting Function Default...
  • Page 17: Safety Notes

    OPERATING SAFETY Before riding the bike for the first time, ensure that you have read and understood this manual. Make sure you understand how to turn on and activate the pedal assist and throttle. When first riding the bike, take care to start slowly with a low level of pedal assist, Take your first ride in a safe area away from cars, other bikers, pedestrians, or other potentially dangerous obstacles.
  • Page 18: Riding At Night

    RIDING AT NIGHT Riding at night comes with more risks than riding during the day due to decreased visibility so riders are encouraged to exercise increased caution. Before riding at night, make sure that reflectors are installed on your e-Bike. For increased visibility, also ensure the front headlight and rear tail light are turned on and adjusted such that other people on the road can see them clearly.
  • Page 19: Error Codes

    ERROR CODES Error Code Meaning 6 km/h cruise Real-time cruise Battery Undervoltage Motor fault Throttle fault Controller failure Communication reception failure Communication transmission failure BMS communication failure Headlight fault...
  • Page 20: Warranty

    Damage caused by failing to adhere to instructions and warnings issued by ONESPORT is not covered under warranty. Warranty parts will only be shipped within the continental EU. The warranty period for parts is as follows.
  • Page 21: Electric Bike Maintenance

    You will NOT be refunded as compensation for your time or efforts in replacing damaged parts. Replacement parts will not be sent until photographic evidence has been provided to ONESPORT. ONESPORT may request additional documentation (such as video) to assist with accurately diagnosing the problem and processing the warranty claim.
  • Page 22: Lubrication

    LUBRICATION In order to keep all the mechanics in working order, you can apply lubrication on the major moving parts such as the chain. You should use a special cleaning solution to clean off the chain before applying a bike lubricant to it. This should ideally be done at least once a week if you use the bike often.
  • Page 23: Disclaimer

    ONESPORT makes no claims or guarantees that the brakes, battery, frame, motor, motor controller, LCD display, electrical cables, electrical cable housings, fasteners, grips, fork, stem, shifters, headset, seat post, seat post clamp, handlebar stem clamp, saddle, wheel hubs, handlebars, spokes, rims, tires, tubes, derailleur, freewheel, cassette, throttle, kickstand, lights, reflectors, hardware,...
  • Page 24 Tiktok Instagram Pinterest YouTube WhatsApp...
