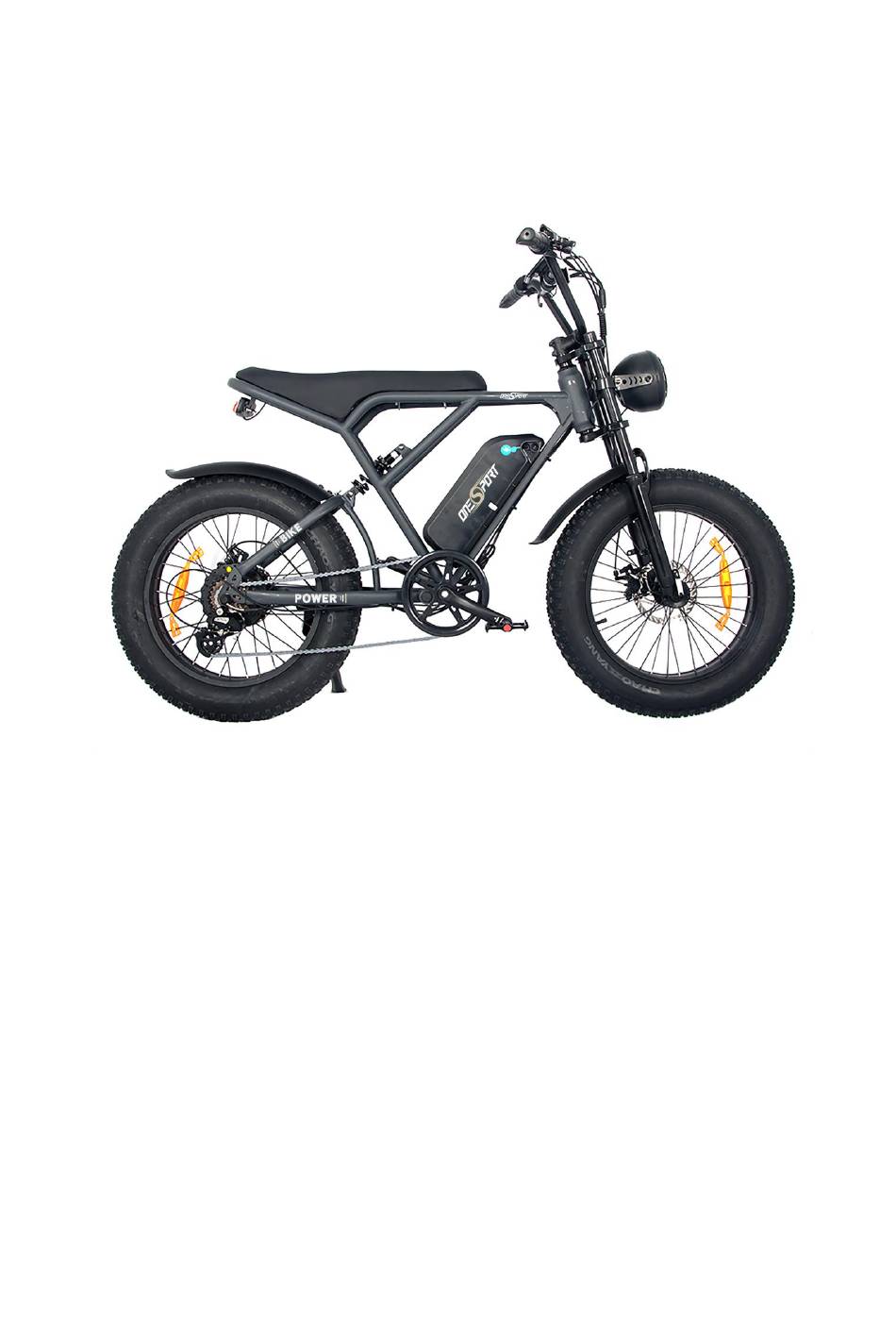

- Page 1 Model:ONES3 Operation Manual...
- Page 2 ATTENTIONS Battery and Charging: Charge at 0℃～45℃（32-113℉）, discharge at -20℃ 〜60℃（68-140℉), keep the battery dry. Do not put the battery in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature environment. It is strictly forbidden to connect the positive and negative poles of the battery reversely.
- Page 3 Liability statement: After riding, please store the bike in a place without sunlight and rain, not in a residential building; Regularly check the motor and brake; Regularly check bike's screw , especially those need to be tightened, and tighten them regularly.
- Page 4 PRODUCT FUNCTION DIAGRAM 1 Display 8 Disc brake 15 Motor 2 Brake lever 9 Battery 16 Mud guard 3 Handlebar 10 Pedal 17 Rear suspension 4 Front fork 11 Sprocket 18 Taillight 5 Headlight 12 Chain 19 Saddle 6 Tire 13 Rear derailleur 7 Wheel reflector 14 Flywheel...
-
Page 5: Function Introduction
Function introduction: Charging: Open the plastic cover of the charging port. (Figure 1), connect the charger to start charging, when the battery is full and the indicator light of the charger changes from red to green, it means it is fully charged. Figure 1 Figure 2 Figure 3... -
Page 6: Product Parameters
PRODUCT PARAMETERS Parameter Standard Version Body Material Aluminum alloy Color Matte Black Outlook Unfolding Size 1630mm*660mm*1110mm （64*26*44in) &Dimension Packing Size 1360mm*300mm*850mm （54*12*33in) Hub Form Spoke wheel Wheel Size 20 inches Gross weight /Net weight 41kgs/33kgs (90lbs/73lbs) Maximum Load 120kg (265lbs) Maximum Speed 25km/h in EU,20mph in US Performance... - Page 7 MANUAL CONTROL INSTRUMENT 一、Function description ： Display function Speed display, power assist display, power indicator, fault prompt, mileage display, voltage display, single boot time, 6km/h (3.75mile/h) boost, cruise control, brake indication, headlight display Control, set function Power switch control, headlight switch control, 6km/h (3.75mile/h) booster setting (WALK mode), cruise control setting, 3-speed booster ratio setting, speed display switching, mileage and single boot time and voltage display switching.
- Page 8 Display content introduction 1.Headlight 2.Battery electric power display 3.Multifunctional display area Total mileage ODO, single mileage TRIPA (unit: mile, km), current voltage VOL,single boot time TM. 4. Bike power-assisted gear adjustment 0-3 digital display and gear bar display 5. Bike status display area Cruise Walk：6km/h(3.75mile/h) Walk mode Cruise mode...
- Page 9 二、Button Introduction： The specific combination of buttons is as follows Use Introduction Button operation is divided into short press and long press. Specific operation explanation I、Switch LCD “ ” 1. ln the off state, long press the button to turn it on. “...
