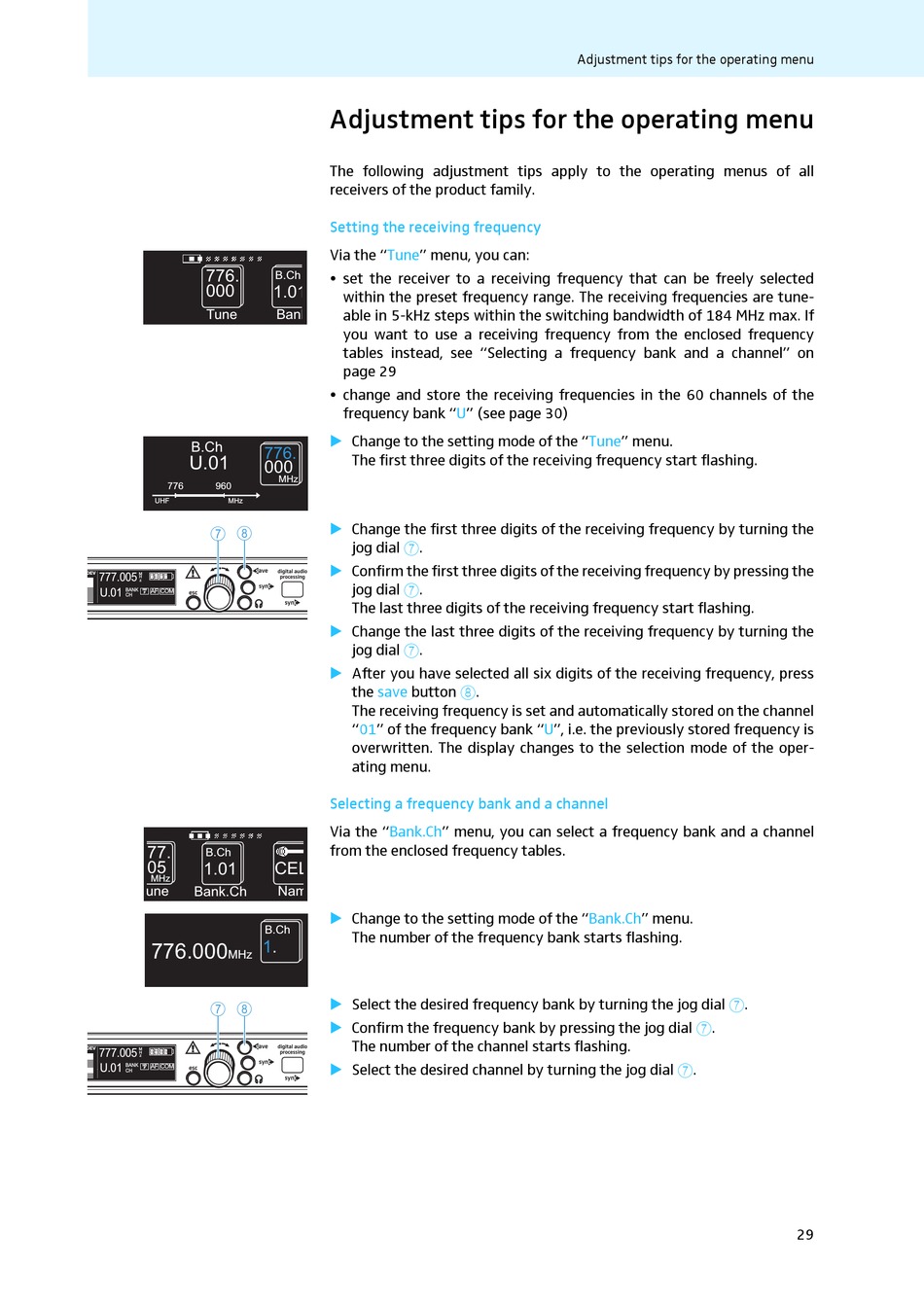

Adjustment tips for the operating menu

The following adjustment tips apply to the operating menus of all
receivers of the product family.
Setting the receiving frequency
Via the "Tune" menu, you can:
B.Ch
• set the receiver to a receiving frequency that can be freely selected
1.01
within the preset frequency range. The receiving frequencies are tune-
Bank able in 5-kHz steps within the switching bandwidth of 184 MHz max. If
you want to use a receiving frequency from the enclosed frequency
tables instead, see "Selecting a frequency bank and a channel" on
page 29
• change and store the receiving frequencies in the 60 channels of the
frequency bank "U" (see page 30)
Change to the setting mode of the "Tune" menu.
776.
The first three digits of the receiving frequency start flashing.
000
MHz
Change the first three digits of the receiving frequency by turning the
jog dial 7.
Confirm the first three digits of the receiving frequency by pressing the
digital audio
processing
jog dial 7.
sync
The last three digits of the receiving frequency start flashing.
Change the last three digits of the receiving frequency by turning the
jog dial 7.
After you have selected all six digits of the receiving frequency, press
button 8.
the save
The receiving frequency is set and automatically stored on the channel
"01" of the frequency bank "U", i.e. the previously stored frequency is
overwritten. The display changes to the selection mode of the oper-
ating menu.
Selecting a frequency bank and a channel
Via the "Bank.Ch" menu, you can select a frequency bank and a channel
from the enclosed frequency tables.
CEL
Nam
Change to the setting mode of the "Bank.Ch" menu.
B.Ch
The number of the frequency bank starts flashing.
1.
Select the desired frequency bank by turning the jog dial 7.
Confirm the frequency bank by pressing the jog dial 7.
The number of the channel starts flashing.
digital audio
processing
Select the desired channel by turning the jog dial 7.
sync
Adjustment tips for the operating menu
