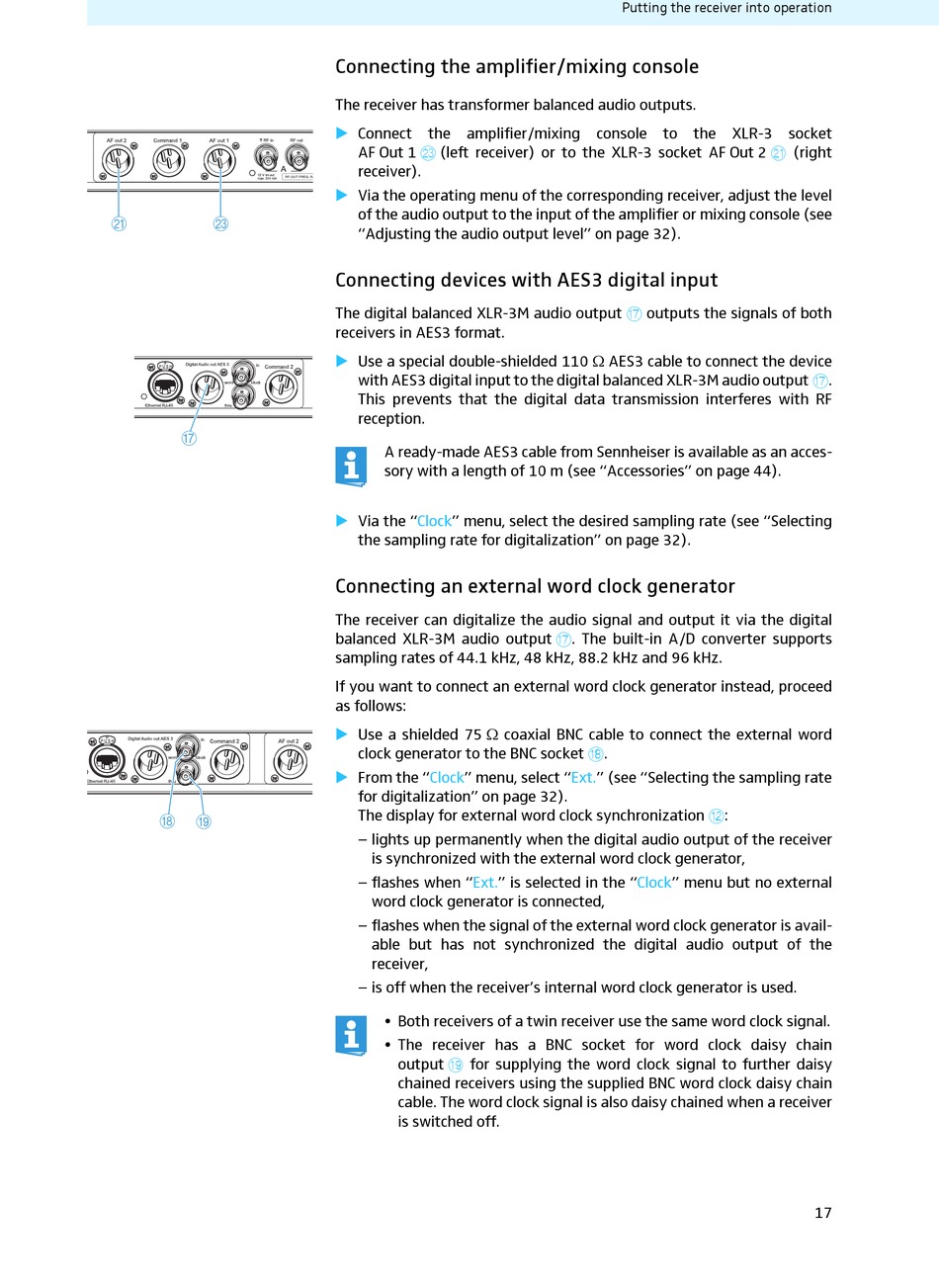

Connecting the amplifier/mixing console

The receiver has transformer balanced audio outputs.
Connect the amplifier/mixing console to the XLR-3 socket
M
AF Out 1 (left receiver) or to the XLR-3 socket AF Out 2
receiver).
Via the operating menu of the corresponding receiver, adjust the level
of the audio output to the input of the amplifier or mixing console (see
"Adjusting the audio output level" on page 32).

Connecting devices with AES3 digital input

The digital balanced XLR-3M audio output
receivers in AES3 format.
Use a special double-shielded 110 Ω AES3 cable to connect the device
with AES3 digital input to the digital balanced XLR-3M audio output G.
This prevents that the digital data transmission interferes with RF
reception.
A ready-made AES3 cable from Sennheiser is available as an acces-
sory with a length of 10 m (see "Accessories" on page 44).
Via the "Clock" menu, select the desired sampling rate (see "Selecting
the sampling rate for digitalization" on page 32).

Connecting an external word clock generator

The receiver can digitalize the audio signal and output it via the digital
balanced XLR-3M audio output G. The built-in A/D converter supports
sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz.
If you want to connect an external word clock generator instead, proceed
as follows:
Use a shielded 75 Ω coaxial BNC cable to connect the external word
clock generator to the BNC socket H.
From the "Clock" menu, select "Ext." (see "Selecting the sampling rate
for digitalization" on page 32).
The display for external word clock synchronization B:
– lights up permanently when the digital audio output of the receiver
is synchronized with the external word clock generator,
– flashes when "Ext." is selected in the "Clock" menu but no external
word clock generator is connected,
– flashes when the signal of the external word clock generator is avail-
able but has not synchronized the digital audio output of the
receiver,
– is off when the receiver's internal word clock generator is used.
• Both receivers of a twin receiver use the same word clock signal.
• The receiver has a BNC socket for word clock daisy chain
I
output for supplying the word clock signal to further daisy
chained receivers using the supplied BNC word clock daisy chain
cable. The word clock signal is also daisy chained when a receiver
is switched off.
Putting the receiver into operation
K
(right
G
outputs the signals of both
17
