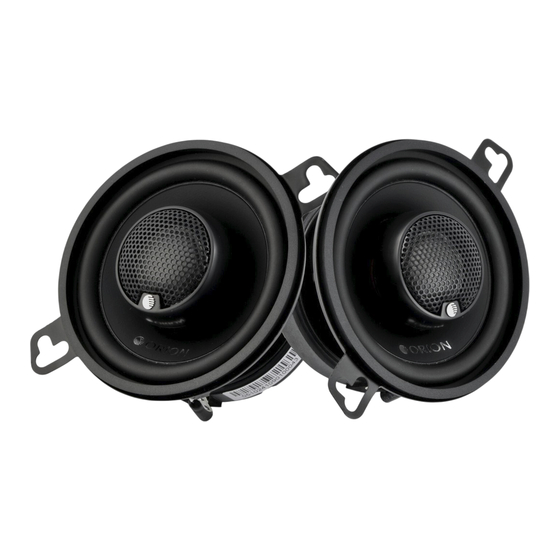

- Page 1 XTR275.2 XTR65.3 XTR35.2 XTR69.3 XTR40.2 XTR55.SC XTR46.2 XTR65.SC XTR52.2 XTR65.2SL XTR57.2 XTR1.00TW XTR speakers...
- Page 2 Thank you for purchasing this Orion product. Orion products are specif ically engineered and designed for the mobile audio environment. This manual contains important information about installation, set-up procedures and integrating your new Orion product into your vehicle. With proper care and installation, your new product will provide you with many years of high performance listening enjoyment.
-
Page 3: Table Of Contents
WARNING & DISCLAIMER..................13 TROUBLESHOOTING ....................14 WARRANTY......................15-16 WHAT’S IN THE BOX XTR Coaxial Speakers / XTR Tweeters / Component Speakers Grilles (Models do not include grilles: XTR275.2, XTR35.2, XTR40.2, XTR46.2, XTR57.2) 2 x Mounting Screws 1 x Window Sticker 1 x Owners Manual... -
Page 4: Specifications
SPECIFICATIONS Model: XTR1.00TW XTR275.2 XTR35.2 RMS Power Max Power 200W Nom Impedance (Ohm) Frequency Response (Hz) 1.5k - 20k 150 - 19k 100 - 20k Sensitivity 90 dB 80 dB 80 dB Mounting Depth 1” (25 mm) 1.25” (31.75mm) 1.54” (39.12mm) Mounting Diameter 2”... -
Page 5: Features
12db high pass, tweeter level adjust- ments jumper, tweeter protection. Custom Grilles Custom tweeter mounting kits including swivel XTR275.2 | XTR35.2 Oversized Poly-Cotton Spider and bottomless Motor Geometry High-Gauge Steel Frame Black Anodized Aluminum Voice Coil Former Integrated Crossover... - Page 6 FEATURES XTR40.2 XTR46.2 XTR52.2 XTR57.2 XTR65.2SL XTR65.3 XTR69.3 XTR55.SC XTR65.SC Dimensions inches/mm 1.89 / 48 2.01 / 51 2.36 / 60 2.17 / 55 1.69/43 2.32 / 59 3.31 / 84 2.36 / 60 2.32 / 59 0.79 / 20 0.79 / 20 0.91 / 23 0.79 / 20...
-
Page 7: Choosing A Location
Care taken during the installation process will be rewarded with years of satisfying performance. If you are unsure about your installation capabilities, please refer to your local Authorized Orion Dealer for technical assistance. Orion dealers are trained professionals dedicated to extracting the maximum performance out of your Orion system. -
Page 8: Installation
INSTALLATION INSTALLING THE TWEETERS SURFACE MOUNTING Step 1: Determine the tweeter mounting location, then route the wires from the crossover to the tweeter location. Step 2: Place the provided template or tweeter cup against the panel and mark the two holes at the rear of the housing. Step 3: Drill the smaller holes using a 1/8”... - Page 9 INSTALLATION FULL FLUSH MOUNTING Step 1: Determine where the tweeter will be mounted. Make sure there is a flat area large enough for the tweeter and no obstructions behind the area. Step 2: Using supplied template mark with a pen the hole needed for the tweeter.
- Page 10 INSTALLATION INSTALLING THE MID/WOOFERS Step 1: Determine where the speakers will be mounted. Make sure there is a flat area large enough for the speakers to fit properly. An uneven mounting surface can damage the driver. Step 2: Check to make sure the space you have chosen for the speakers will not interfere with the operation of the vehicle.
- Page 11 INSTALLATION INSTALLING THE CROSSOVER There is a tweeter level jumper for adjusting the tweeter. Cutting this jumper will change the output gain of the tweeter. Where the adjustment should be depends on the location of the tweeter and your preference. Adjustments can be made from OdB to -3dB by cutting the “level jumper”.
- Page 12 INSTALLATION STEP BY STEP INSTALLATION Step 1: Determine where the speaker will be mounted. Make sure there is a flat area large enough for the speaker to fit properly. An uneven mounting surface can damage the driver. Step 2: Check to make sure the space you have chosen for the speaker will not interfere with the operation of the vehicle.
-
Page 13: Wiring Diagram
WIRING DIAGRAM Crossover To Woofer Input Output To Tweeter To Amplifier... -
Page 14: Warning & Disclaimer
IMPORTANT: Never cut any metal that is an integral part of the vehicle’s safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized ORION Dealer. Never sacrif ice your safety for sound. -
Page 15: Troubleshooting
If your Orion speakers have been installed professionally by an Authorized Orion Dealer, we recommend that you return to the Dealer and demonstrate the problem to a qualif ied installer or repair technician. If you have installed the speaker yourself, use the following guidelines to help f ind the problem: 1. -
Page 16: Warranty
4. This warranty does not cover car static, electrical interference, adjustments or labor costs for the removal or reinstallation of the unit for repair. 5. The sole responsibility of Orion under this warranty shall be limited to the repair or replacement thereof, at the sole discretion of Orion. - Page 17 WARRANTY 6. If it becomes necessary to send the product or any defective part to Orion or an authorized service station, the product must be shipped in its original or equivalent carton, fully insured, with shipping charges prepaid. Orion will not assume any responsibility for any loss or damage incurred in shipping.
