Summary of Contents for KUHL BRISE E3

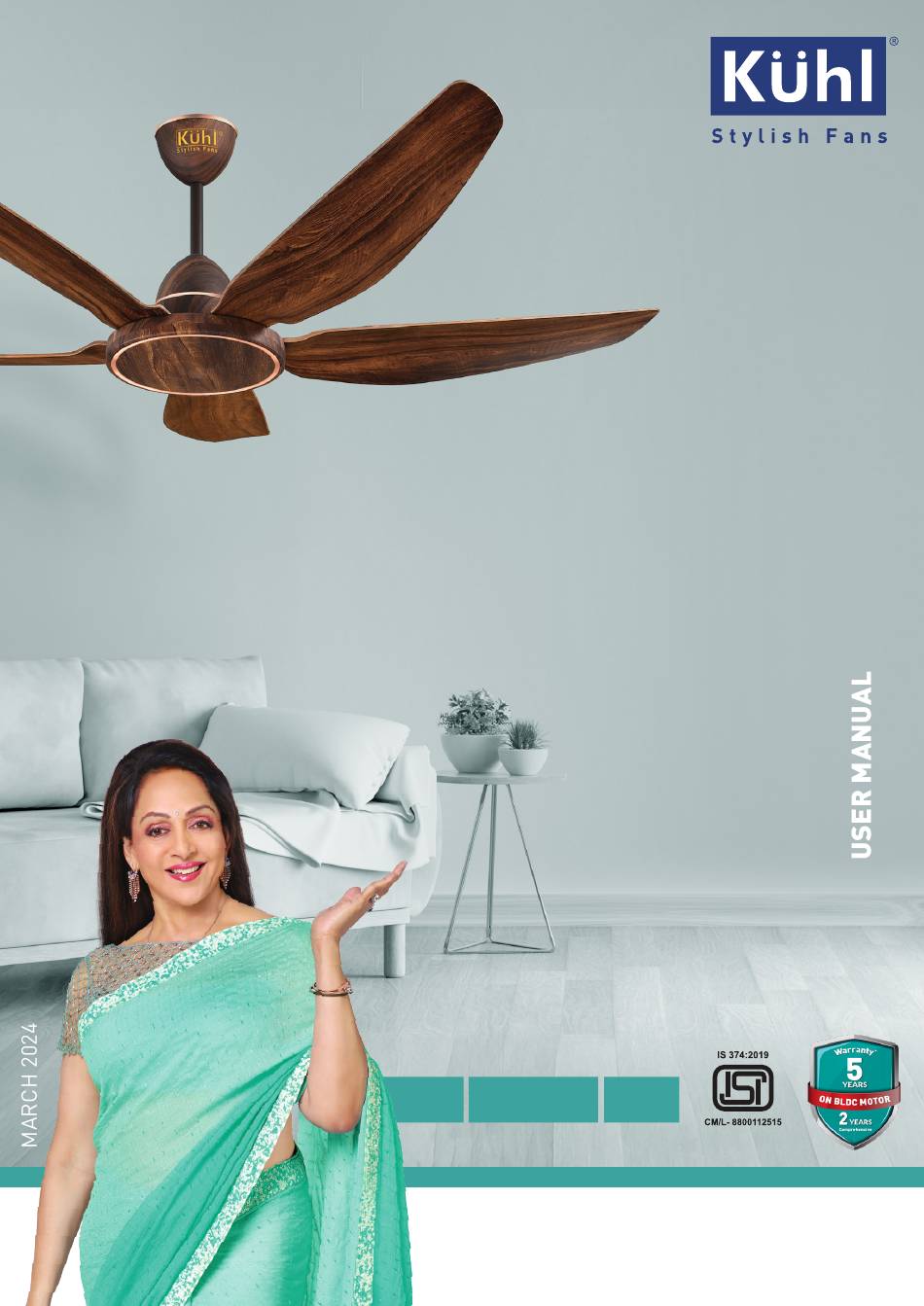

- Page 1 BLDC ENERGY EFFICIENT NOISE KÜHL BRISE STYLISH FANS FOR MODERN HOMES...
- Page 2 Welcome to Kühl Dear Customer, Thank you for choosing Kühl Stylish Fans! It is indeed a wise decision as Kühl Stylish Fans are based on the New Technology named BLDC that offers energy efficient and low noise operation. This feature not only helps to keep the room cool but also keeps the electricity bill in check.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction....................4 Features of Kühl Brise Stylish Fan............4-5 Items in the Box .................... 6 Know your Remote Control Device..............7 Power Saving & Energy Efficient Guide............8 Cost Saving Guide ..................8 Mounting Recommendations & Maintenance ..........9 Safety Guidelines .................. -
Page 4: Introduction
Despite their stylish appearance, Kühl Brise Fans work only on 30 watt as against heavy 75 W induction fans. The series includes Kühl Brise E3, E4, and E5 that are not just functionally powerful but also beautiful, making them a must to enhance the aesthetic appeal of your home. - Page 5 • Aerodynamic Blades: Aerodynamic design helps deliver higher airflow and low noise at a low wattage. • Reverse Mode: During winters, when hot air gets stuck at the top of the ceiling, you can switch on the reverse mode for air circulation, so you can feel warm air consistently spread across the place.
-
Page 6: Items In The Box
Items in the box Fan Motor Unit Canopies Down Rod Shackle Down Rod Bolt Blades 3/4/5 N Fan Remote Pencil Cell AAA Supply Wires Warranty Card... -
Page 7: Know Your Remote Control Device
Know your Control Device Remote • SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. • SLEEP MODE: Auto speed control for uninterrupted comfortable sleep. Select this setting before going to bed, and the speed will automatically drop to the minimum pace you specify. -
Page 8: Power Saving & Energy Efficient Guide
Power Saving & Energy Efficient Guide Kühl Stylish Fans come with revolutionary and super energy-efficient BLDC motor technology that consumes less energy. Our fans consume only 1/3rd of the power consumed by ordinary fans. Kühl Stylish Fans run on just 30watt at full speed whereas ordinary induction fans run on approx. -
Page 9: Mounting Recommendations & Maintenance
Mounting Recommendations & Maintenance • A minimum height of 2.3 meters above the ground is required for the fan's mounting. Allow enough room from the ceiling for the high-level cabinet doors to open. At least 0.25 meters should separate the blade from the ceiling •... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS KÜHL BRISE SERIES FAN STEP 1. OPEN BLADE SCREWS Place the Motor unit over a towel on a table, and open the 4 Blades and Screws as shown... - Page 11 STEP 2A. ASSEMBLE 1ST BLADE Bring the 1st Blade towards the fan motor, and align with the blade holes on the motor unit STEP 2B. ASSEMBLE 1ST BLADE Re-insert and fasten the 2 screws...
- Page 12 STEP 3. ASSEMBLE ALL 4 BLADES In a similar manner as done for the 1st blade, assemble the other 3 blades STEP 4. DOWN ROD INSTALLATION Slit side downwards in Down Rod Also bring the Canopies Take the Down Rod with pre-inserted supply wire...
- Page 13 STEP 5. INSERT CANOPIES OVER DOWN ROD Insert smaller Canopy from Raise bigger Canopy and Slit-end of Down Rod tighten the Canopy screw to hold it in place DOWN ROD BOLT Clamp without Washer Cotton Clamp with Collar Collar Take the Down Rod Bolt Assembly Details Bolt from the Shackle kit...
- Page 14 STEP 6A. DOWN ROD ASSEMBLY Insert Down Rod slit-end Insert Down Rod Bolt down over Motor Shaft with Collared Clamp BOLT ASSEMBLY SEQUENCE Cotton pin Washer Clamp Collared Clamp Bolt...
- Page 15 STEP 6B. DOWN ROD ASSEMBLY Fasten the Down Rod bolt as shown Down Rod bolt fastened STEP 7. MAKE ELECTRICAL CONNECTIONS Connect the Supply wire from Wire Connection Method Down Rod into Link Wire connector...
- Page 16 STEP 8. BRING LOWER CANOPY DOWN Loosen The Screw and Fasten back the Screw to Bring the lower Canopy down lock the canopy in position STEP 9. OPEN LOWER BOLT FROM SHACKLE...
- Page 17 STEP 10. INSTALL SHACKLE AND HANG THE FAN Insert Shackle Raise Fan Re-insert into Ceiling Hook to Shackle Lower Bolt Tighten with Washer, Nut, Lock Nut and Cotter Pin in sequence as written STEP 11. CONNECT TO ELECTRIC SUPPLY Connect the wires from main Raise the upper Canopy and supply into fan connector tighten the Canopy screw...
-
Page 18: How To Operate Kühl Brise Bldc Fan
ASSEMBLY AND INSTALLATION COMPLETE How to operate Kühl BRISE BLDC Fan Important Instructions regarding Regulator: Fan regulator is not required for this BLDC fan because it is operated by remote. You should ask your electrician to bypass the Regulator in Switch Board wiring, Otherwise fan may not operate properly. -
Page 19: How To Operate Remote Control Device
How to operate Remote Control Device Get the Remote ready. Insert 2 Nos. AAA Batteries provided into the Remote Unit’s slot provided at back. Switch ON the fan from swich board to operate it with Remote as explained hereafter. Pair the Remote with Fan, if not paired already. Press POWER button on Remote to start BLDC Fan. - Page 20 Speed Buttons Kühl BLDC Fans comes with five different speed settings. You can control the speed, with the help of the (-) & (+) buttons. For instance, to decrease the speed press (-) and vice – versa. Boost Button If you want to run the BLDC fan at maximum speed Press BOOST button on Remote.
- Page 21 All Kühl BRISE Fans 5- Star Rated By BEE KUHL BRISE-E5-1320/2024 KUHL BRISE-E4-1320/2024 Year Year 1320 mm 1320 mm 30 watts 30 watts 225 cu m/min 225 cu m/min Kühl BRISE E5 KUHL BRISE-E3-1320/2024 Year 1320 mm 30 watts 225 cu m/min...
- Page 22 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service@kuhl.in or visit us at www.kuhl.in...
