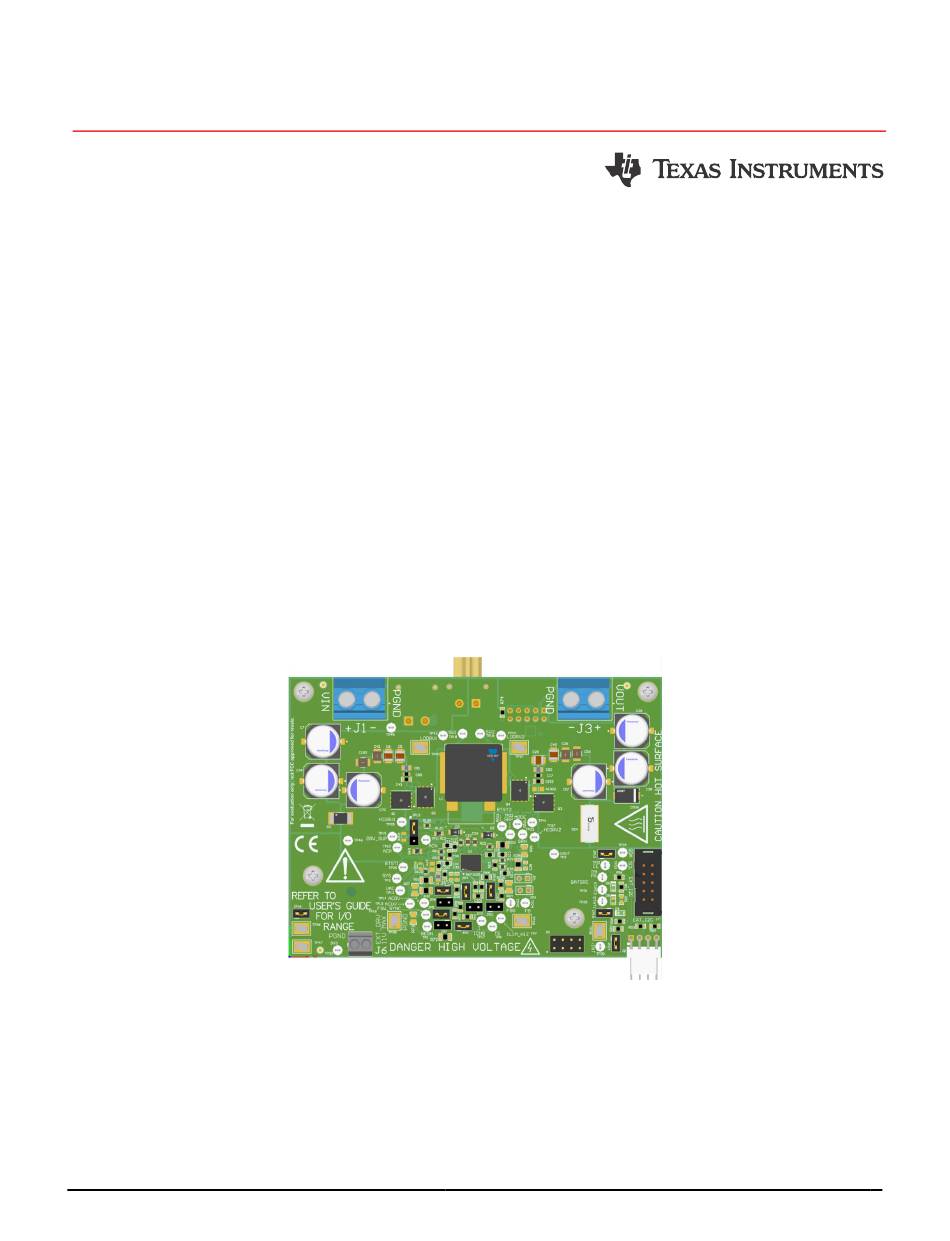

EVM User's Guide: BQ25858-Q1EVM
BQ25858-Q1 Evaluation Module
Description

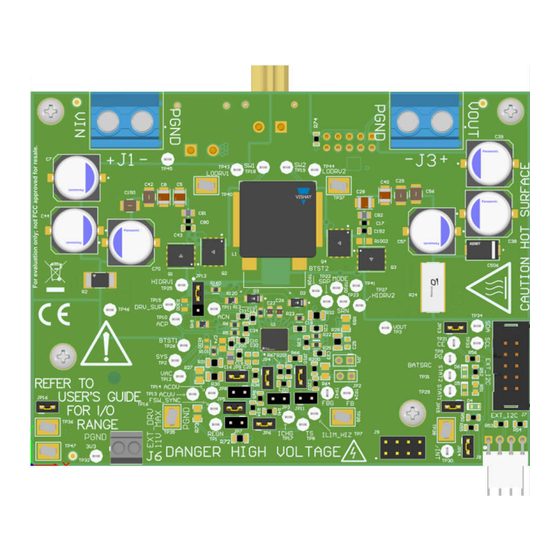

The BQ25858 evaluation module (EVM) is a complete
evaluation systems for the BQ25858-Q1 IC. The
BQ25858EVM has a max input and output of 55V and
a max output current of 10A.
The BQ25858-Q1 IC is a wide voltage, bidirectional
switched-mode buck-boost controller. This device
offers high-efficiency power conversion over a wide
voltage range with output CC-CV control. This IC has
a wide input range of 4.2V to 60V and a wide output
range of up to 60V.
Get Started
1. Order the EVM on
ti.com
2. Order the
EV2400
or
with the EVM
3. Download the BQ25858 BQZ file or use the
Charger GUI
4. Download the BQ25858EVM design files on
ti.com
SLUUD99 – FEBRUARY 2025
Submit Document Feedback
USB2ANY
to communicate
TI
Copyright © 2025 Texas Instruments Incorporated
Features
Wide input voltage operating range: 4.2V to 55V
Wide output operating range: up to 55V
Synchronous buck-boost DC/DC controller with
NFET drivers
– Adjustable switching frequency from 200kHz to
600kHz
– Optional synchronization to external clock
– Optional gate driver supply input for optimized
efficiency
2
I
C-controlled or resistor programmable options
Power up from battery (reverse mode) output 4V to
55V
High safety integration
– Adjustable input overvoltage and undervoltage
protection
– Output overvoltage and overcurrent protection
Description
BQ25858-Q1 Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BQ25858-Q1EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments BQ25858-Q1EVM

  • Page 1 – Output overvoltage and overcurrent protection 3. Download the BQ25858 BQZ file or use the Charger GUI 4. Download the BQ25858EVM design files on ti.com SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    Board size (X dimension, or length) Board size (Y dimension, or width) IC + power stage max height Total copper layers layer Copper weight per layer BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 3: Device Information

    C host-controlled mode, the device also supports programmable hardware limits. Input current and output current regulation targets can be set with single resistor on the IIN, and IOUT pins, respectively. SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 4 Evaluation Module Overview www.ti.com 1.5 General Texas Instruments High Voltage Evaluation (TI HV EMV) User Safety Guidelines WARNING Always follow TI's set-up and application instructions, including use of all interface components within their recommended electrical rated voltage and power limits. Always use electrical safety precautions to help verify your personal safety and those working around you.
  • Page 5: General Safety Information

    The circuit module has signal traces, components, and component leads on the bottom of the board. This can result in exposed voltages, hot surfaces or sharp edges. Do not reach under the board during operation. SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 6 CAUTION The board has no fuse installed and relies on the external voltage source current limit to verify circuit protection. BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 7 Output current of the EVM FSW_SYNC Switching frequency of the power stage VOUT Default Output Voltage IAC Sense Resistor Input current sense resistor mΩ SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 8: Power Supplies

    5. EV2400 Communication Kit or USB2ANY Communication Kit: 6. Software: For software setup, refer to section 2.4. 2.3 Setup E-LOAD IBAT USB2ANY Optional Laptop EV2400 Laptop Gate Drive Supply BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 9 Select Charger_2_00_BQ25758.bqz on the Select a Target Page. e. After selecting the target device, click Field View and then click the Read Register button. 9. Set WATCHDOG to disabled. SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 10 You should see at the top-left, Hardware Connected. After you see the hardware is connected, select the plug icon on the left panel. BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 11 Here is a brief description of what the other icons on the left side panel mean. Select through these icons to configure other operations of the battery charger. SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 12: Header Information

    Input: negative terminal (ground terminal) Connects to a USB PD Controller J2-PD Controller Connector J3-VOUT Output: Positive terminal J3-PGND Onput: negative terminal (ground terminal) BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 13: Jumper Information

    Shunt JP15 to connect STAT1 to a pullup rail. The STAT1 pin can also be used as a general Installed JP15 purpose indicator. JP16 Shunt JP16 to generate on board 3.3V pullup rail. Installed SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 14 EVM and the PC for a connection to be established. Also, update the USB2ANY to the latest version with the USB2ANY Explorer Software. BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 15 Avoid physical contact with any part of the board when power is active Output power limited by circuit operating conditions and power stage components Figure 4-1. BQ25858EVM Schematic Page 1 SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 16 C516 C517 C518 C519 C506 15uF 15uF 15uF 15uF 15uF 100V 100nF 100k 100k 100V 1µF 100V PGND Figure 4-2. BQ25858EVM Schematic Page 2 BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 17 TP39 TP47 TP40 HIDRV1 BTST1 HIDRV2 BTST2 STAT1 /INT STAT2 3V3_PULLUP PGND PGND PGND PGND PGND PGND PGND Figure 4-3. BQ25858EVM Schematic Page 3 SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 18 For BQ25756 variant, Install JP1, JP4, JP5, JP6, JP9, JP10, pin 1-2 of JP12, JP13, JP14, JP15, and JP16 Figure 4-4. BQ25858EVM Schematic Page 4 1. DNP means "Do Not Populate". BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 19: Pcb Layouts

    Hardware Design Files 4.2 PCB Layouts Figure 4-5. Top Layer and Overlay Figure 4-6. Layer 2 -GND SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 20 Hardware Design Files www.ti.com Figure 4-7. Signal Layer 1 Figure 4-8. Signal Layer 2 BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 21 Hardware Design Files Figure 4-9. Layer 5 - GND Figure 4-10. Bottom Layer SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 22 CAP, CERM, 220 pF, 50 V, +/- 10%, X7R, 220pF C0603C221K5RACTU Kemet 0603 C201, C202 0.1uF C0603C104K8RACTU Kemet CAP, CERM, 0.1 uF, 10 V, +/- 10%, X7R, 0603 603 BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 23 JP6, JP7, JP8, JP9, JP10, Sullins Connector PEC02SAAN Header, 100mil, 2x1, Tin, TH Header, 2 PIN, 100mil, Tin JP11, JP13, Solutions JP14, JP15, JP16 SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 24 RES, 0, 5%, 0.125 W, AEC-Q200 Grade 0, CRCW08050000Z0EA Vishay-Dale 0805 5.23k RC0603FR-075K23L Yageo RES, 5.23 k, 1%, 0.1 W, 0603 57.6k RC0603FR-0757K6L Yageo RES, 57.6 k, 1%, 0.1 W, 0603 BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 25 2-X1SON -40 to 125 SH-JP1, SH- JP2, SH-JP3, SH-JP4, SH- JP5, SH-JP6, SNT-100-BK-G Samtec Shunt, 100mil, Gold plated, Black Shunt SH-JP7, SH- JP8, SH-JP9, SH-JP10 SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 26 BQ25858-Q1 Texas Instruments Buck-Boost Controller with Wide Voltage VQFN36 Range Linear Voltage Regulator IC Positive LT3010EMS8E-PBF Analog Devices MSOP8 Adjustable 1 Output 50mA 8-MSOP-EP BQ25858-Q1 Evaluation Module SLUUD99 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 27: Additional Information

    6 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. DATE REVISION NOTES February 2025 Initial Release SLUUD99 – FEBRUARY 2025 BQ25858-Q1 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
