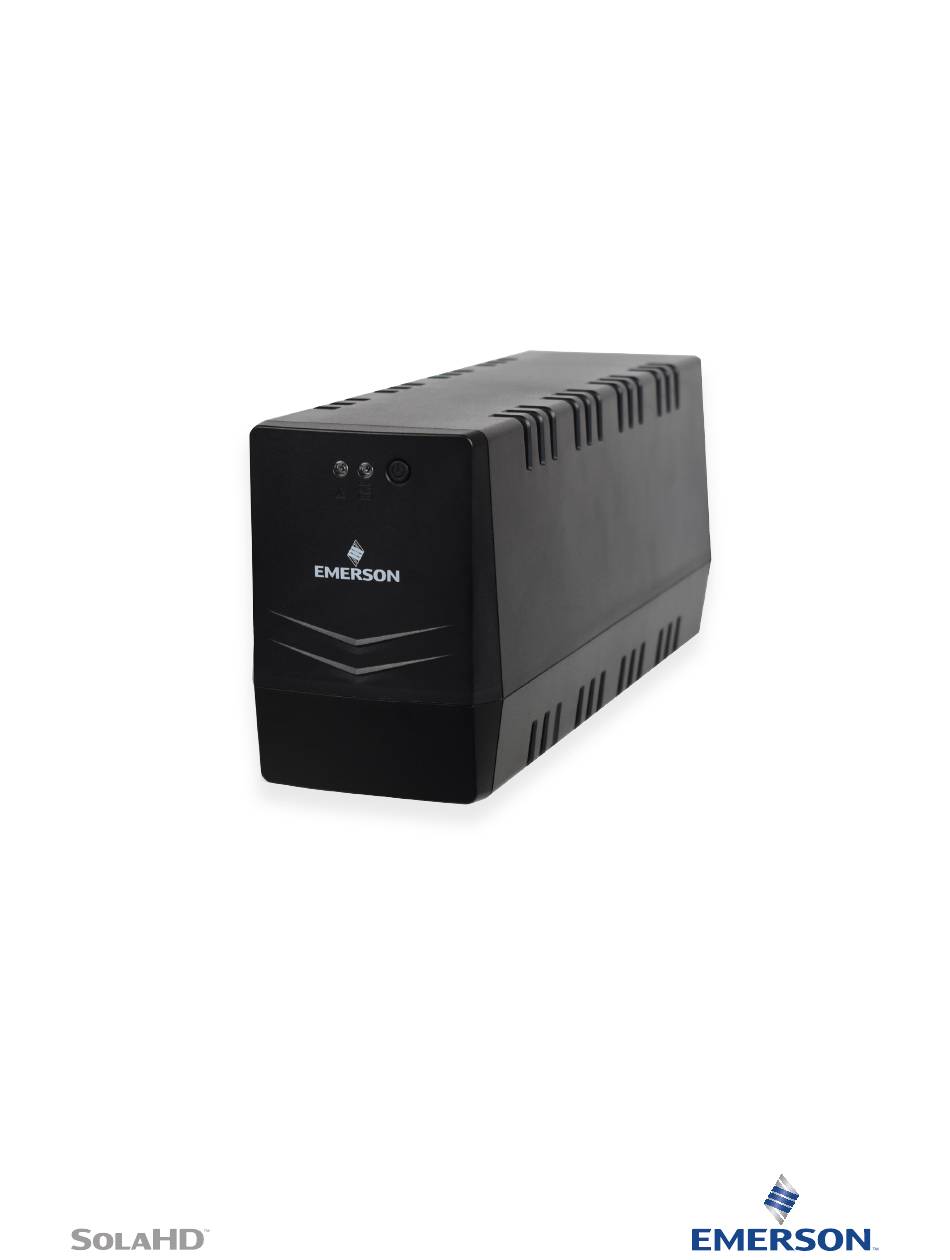

- Page 1 Uninterruptible Power Supply User Manual SPS and SLN UPS Series...
-
Page 2: Table Of Contents
CONTENTS 1.0 Introduction ..... . 1 2.0 Important Safety Instructions ....2 3.0 General Description . -
Page 3: Introduction
While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp, LLC. assumes no responsibility, and disclaims all liability for damages result- ing from use of this information or for any errors or omissions. Specifications are subject to change without notice. The Appleton and Emerson logos are registered in the U.S. Patent and Trademark Office. -
Page 4: Important Safety Instructions
2.0 Important Safety Instructions WARNING - Risk of electric shock, fire and personal injury. SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during installation and maintenance of the UPS. The UPS is intended for installation in a controlled environment. Do not attempt to open the UPS. -
Page 5: General Description

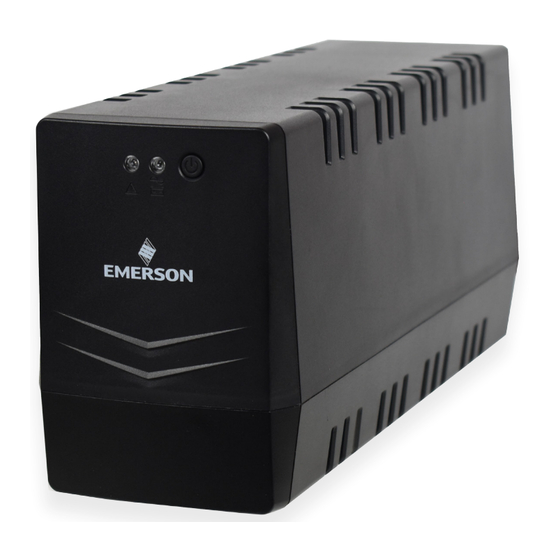

3.0 General Description 3.1 Front Panel - Models SLN600, SPS850, SLN1000, SLN1500 Red LED Power Switch Indicator Green LED Indicator When the Green LED Indicator: Shows a steady light, the UPS is in AC Mode. Is flashing, the UPS is in Battery Mode. - Page 6 3.3 Back Panel - Model SLN1000 USB (B TYPE) AC Input Cord Breaker Output Receptacles 3.4 Back Panel - Model SLN1500 USB (B TYPE) AC Input Cord Breaker Output Receptacles Page: 4...
-
Page 7: System Block Diagrams
4.0 System Block Diagrams SLN System Block Diagram SPS System Block Diagram Page: 5... -
Page 8: Installation And Operation
5.0 Installation and Operation 5.1 Inspection Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If shipping damage has occurred, repack the unit, and contact your local carrier and SolaHD distributor immediately. 5.2 Placement Install the UPS indoors in a protected environment that provides adequate airflow around the unit, and is free from excessive dust, moisture and contaminants. -
Page 9: Led Diagnostics
6.0 LED Diagnostics Green LED Red LED Alarm (Audible)* Status Battery Fully Charged AC Mode Flashing every 5 seconds 1 beep every 5 seconds Battery Mode Flashing every 3 seconds 1 beep every 3 seconds Battery Low Warning Flashing every 1 second Standby Mode Continuous beep Fault Alarm... -
Page 10: Troubleshooting
7.0 Troubleshooting Problem Possible Cause Solutions The UPS is not turned on. Press the ON/OFF Button for 3 seconds and release. The UPS does not turn on. Battery fault. Contact Tech Support. (No alarm, no display). UPS fault. Contact Tech Support. The power cord is not Check the power cord to ensure it is The UPS runs continually in battery mode. -
Page 11: Technical Specifications
8.0 Technical Specifications Line Interactive Offline Line Interactive Line Interactive Catalog Number SLN 600 SPS850 SLN 1000 SLN 1500 VA/Watts 600VA/360W 850/510 1000VA/600W 1500VA/900W 87 min. 67 min. 2 hours 1hour 3 min. 45 min. 31 min. 10 sec. 48 min. 41 min. - Page 12 Catalog Number SLN600 SPS850 SLN1000 SLN1500 Topology Line Interactive Offline Line Interactive Line Interactive Capacity (VA/W) 600/360 850/510 1000/600 1500/900 Dimensions Unit (H x W x D) - in. 5.6x4.1x11.82 5.6x4.1x11.82 7.09x5.12x12.6 7.09x5.12x12.6 (mm) (142x104x300.2) (142x104x300.2) (180x130x320) (180x130x320) Ship Weight - lbs (kg) 12.13 (5.5) ±...
- Page 13 Catalog Number SLN600 SPS850 SLN1000 SLN1500 1. The Output current continues 1. The Output current 1. The Output current continues over 125% over 125% within 60ms to continues over within 60ms to OSCP* and then goes to OSCP* and then goes to 250% within 60ms Battery MODE.
- Page 14 Terms and Conditions of Sale. Note that unit specifications are subject to change without notice. Technical Support Website: www.solahd.com Technical Support E-Mail: solahd.technicalservices@emerson.com Toll-Free: (800) 377-4384 USA: (847) 268-6651 Warranty Please see the “Terms & Conditions of Sale” document within the UPS packaging.
- Page 15 The Emerson logo is a trademark and service mark of Emerson Electric Co. Appleton Grp LLC d/b/a Appleton Group. SolaHD is a registered trademark of Appleton Grp LLC. All other marks are the property of their respective owners. © 2019 Emerson Electric Co. All rights reserved. United States...
