Summary of Contents for VBM Medizintechnik Tourniquet Touch TT15

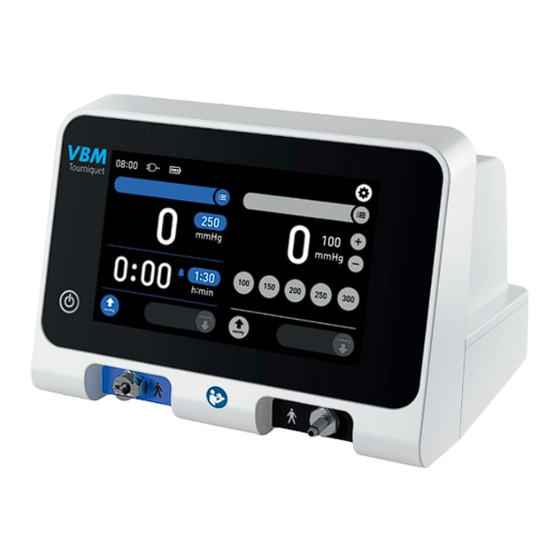

- Page 1 Medizintechnik Tourniquet Touch TT15 0123 004-01-0334 Rev. 09/2023-10...
- Page 2 Intended to be left blank. - 2 / 24 -...
-
Page 3: Table Of Contents
Index Instructions for Use 1. Signal words and symbols ................................................4 2. Intended use ....................................................4 3. Indication / contraindication ............................................... 4 4. Safety information ..................................................4 5. Scope of delivery ..................................................5 6. Product description ..................................................5 7. Device specifications / technical data ............................................6 8. -
Page 4: Instructions For Use
Contact the manufacturer. The Tourniquet Touch TT15 is suitable for use with a Single Cuff and a Pressure Infusion Cuff. Due to the risk of explosion, the device must not be used in the immediate proximity •... -
Page 5: Scope Of Delivery
5. SCOPE OF DELIVERY 6. PRODUCT DESCRIPTION Tourniquet Touch TT15 Coil Connecting Tubing, blue; stretched length 3.0 m; for cuff channel Coil Connecting Tubing, black; stretched length 3.0 m; for irrigation channel Plug for cuff channel Plug for irrigation channel Screen with Touch screen function... -
Page 6: Device Specifications / Technical Data
Battery status 8. MOBILE STAND If the device is connected to the power supply, the battery status of the device can be identi- A mobile stand with basket is optionally available from the manufacturer. CAUTION fied by means of the button. -
Page 7: Buttons And Symbols
9. BUTTONS AND SYMBOLS Buttons The button colours vary, depending on session or cuff / irrigation channel. The function of Install software update and restart the device Software update and restart the buttons is not changed thereby. Calibration On/Off button Increase / reduce pressure by 50 mmHg Start Perform self test or leak test... -
Page 8: Main Screen
10. MAIN SCREEN Channel bar This bar contains buttons which open or close a window. 08 00 This bar also displays current error messages (see chapters „14. Alarms“ and „15. Trouble- shooting“). When the window is opened, the respective button is hidden. No settings are 08 00 possible. - Page 9 08 00 08 00 Pressure display (irrigation channel) In this operating fi eld, the preset pressure can be adjusted prior to and during the session. mmHg mmHg mmHg mmHg 0 00 0 00 0 45 1 30 h : min h : min 08 00 current pressure...
-
Page 10: Settings
10.1 SETTINGS Brightness Activate the button to open the window for settings. 08 00 Presetting for pressure and alarm time 08 00 Defaults Alarm Brightness Pressure Defaults Calibration Alarm Date/Time Brightness Data Exchange mmHg mmHg Calibration System Check Date/Time Language Alarm time 1 : 30... -
Page 11: Start-Up
11. START-UP 08 00 mmHg mmHg 0 00 1 30 h : min mmHg mmHg The device must generally be operated with the power supply. The power supply must • If the self test was successful, the main screen is shown on the screen. be equipped with protective earthing. -
Page 12: Application
13. APPLICATION 13.2 IRRIGATION WITH PRESSURE INFUSION CUFF Follow applied parts (see chapter „22. Article numbers“, column “Applied parts for: CAUTION chapter “13.2 Irrigation with Pressure Infusion Cuff””). Prior to each session of the device, a functional check must be performed for •... -
Page 13: Alarms
14. ALARMS The device is equipped with an alarm system. The alarms must be remedied immediately to ensure patient safety. If an alarm has been corrected or the reason for an alarm no longer exists, the alarm is automatically deleted. In case a further alarm is present, the alarm of the same priority or the next higher priority is displayed. -
Page 14: Alarm Time Exceeded (Timer Alarm)
Priority Alarm sound Optical alarm Additional alarm Error [xxxx] Channel bar Pop-up window Alarm for one channel or both channels (global (example picture) alarm) Medium Error [xxxx] 08 00 3 alarm tones every 4 seconds Yellow fl ashing light Error [xxxx] Battery capacity low [1500]... -
Page 15: Troubleshooting
15. TROUBLESHOOTING 15.1 SELF TEST Error message Fault / failure Cause Fault remediation 0x00000001 A leak was detected in the system. The self test is at the limit of the lower Restart the device. tolerance. If the error occurs again, contact the manufacturer. 0x00000008 Maximum pressure check has failed. - Page 16 Error message (cuff chan- Priority Fault / failure Cause Fault remediation nel / irrigation channel) 1705 Medium High pressure High pressure > 15 mmHg persists Check pressure and position of the Pressure Infusion Cuff. since 60 seconds. Monitor pressure. The position of the Pressure Infu- sion Cuff has changed during the procedure.
-
Page 17: General Errors
Optical alarm Priority Fault / failure Cause Fault remediation High This error message can be displayed in combination with other error messages in this table (see chapter „14.1 Composition and priority of the alarm“). Technical failure Internal error of the device. ... -
Page 18: Emc Table
16. EMC TABLE The device complies with the standards specified in the table. Emissions test Phenomenon Basic EMC standard or test method Group / Class / Test parameters Mains terminal interference voltage / current CISPR-11 Group 1 - Class A 0,15 MHz - 30 MHz Radiated electromagnetic filed CISPR-11... -
Page 19: Maintenance And Diagnosis
MAINTENANCE AND DIAGNOSIS Data exchange Repairs which are not described in these instructions must only be carried out by the manu- 08 00 facturer or by persons authorized by the manufacturer. The information required for this is provided to the authorised person in a separate servic- ing manual. -
Page 20: Self Test
17.1.3 LEAK TEST 08 00 08 00 299.5 Defaults Self test Defaults Alarm Start Alarm mmHg mmHg Brightness Brightness Calibration Leak test Calibration Date/Time Start mmHg mmHg Date/Time Data Exchange Data Exchange System Check System Check Language Language Select the “Calibration” operating fi eld. ... -
Page 21: Repairs
If necessary, repeat wipe disinfection. After completing the wipe disinfection, check the function of the device (see chapter „12. Functional Check“). 20. SHELF LIFE Tourniquet Touch TT15 The shelf life of the device is 7 years in accordance with the intended use. Date of manufacture: see rating plate. -
Page 22: Article Numbers
Chapter „13.1 Bloodless field Chapter „13.2 Irrigation with with Single Cuff“ Pressure Infusion Cuff“ 01-15-000 Tourniquet Touch TT15 Spare Parts 20-20-744 Coil Connecting Tubing, blue; stretched length 3.0 m / 118 inch 20-20-740 Coil Connecting Tubing, black; stretched length 3.0 m / 118 inch 20-20-944 Smooth Connecting Tubing, blue;... -
Page 23: Description Of Symbols
Description Applied parts for: Chapter „13.1 Bloodless field Chapter „13.2 Irrigation with with Single Cuff“ Pressure Infusion Cuff“ Pressure Infusion Cuff for single use 56-01-300 Dispo Infusor 3000 ml with Luer Lock Pressure Infusion Cuff, reusable 52-01-300 Pressure Infusion Cuff 3000 / 5000 ml with Luer Lock connection only 57-01-300 Infusor 3000 with Luer Lock 23. - Page 24 Intended to be left blank. - 24 / 24 -...
