SymCom PumpSaver Plus 233-P Installation Instructions Manual page 4

GND L2 L1
MUST HAVE SHORT-
CIRCUIT PROTECTION
MAXIMUM
60A K-5 FUSE OR
50A INVERSE TIME BREAKER
L1
L2
GND

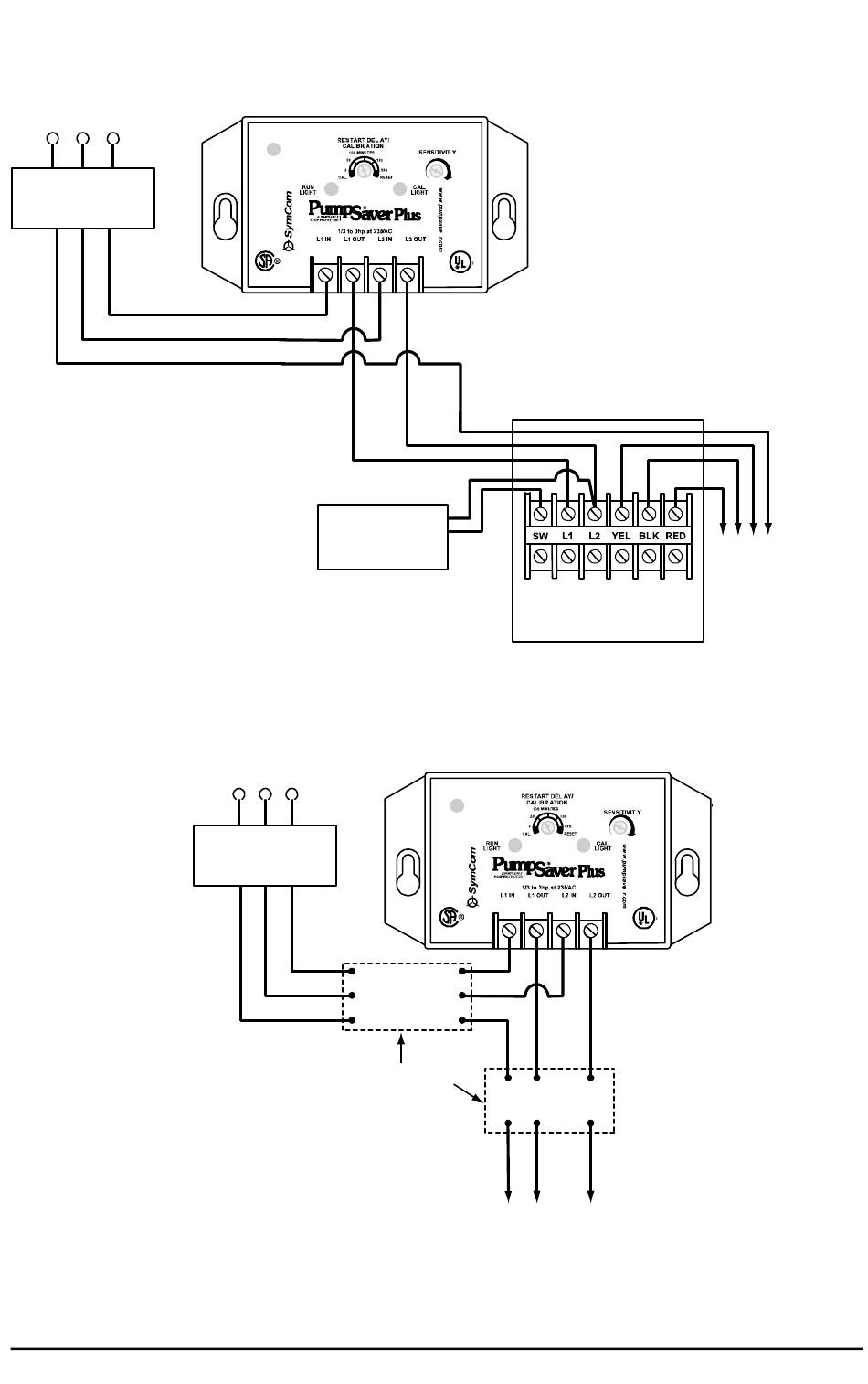

FIGURE 4: 2-Wire Pump Direct-Feed Wiring Diagram
© 2008 SymCom, Inc. All Rights Reserved
L1
PRESSURE SWITCH
OR OTHER CONTROL
FIGURE 3: Deluxe Control Box Wiring Diagram
GND L2 L1
MUST HAVE SHORT-
CIRCUIT PROTECTION
MAXIMUM
60A K-5 FUSE OR
50A INVERSE TIME BREAKER
L1
L2
OR OTHER CONTROL
GND
A PRESSURE SWITCH CAN
BE INSTALLED EITHER BEFORE
OR AFTER THE PUMPSAVER PLUS
IND. CON T . EQ.
LISTED
GND
L2
PRESSURE SWITCH
®
PRESSURE SWITCH
OR OTHER CONTROL
TO THERMALLY OR
IMPEDANCE PROTECTED
4" DELUXE 3-WIRE
CONTROL BOX
1/3 - 3hp FOR 233-P
1/3 - 1.5hp FOR 233-1.5- P
IND. CON T. EQ.
LISTED
MOTOR
TO THERMALLY OR
IMPEDANCE PROTECTED
MOTOR
4
