BE SURE POWER IS DISCONNECTED PRIOR TO INSTALLATION!
READ THESE INSTRUCTIONS ENTIRELY BEFORE INSTALLATION.
The CIO-777-PR Module is a convenient and cost-effective Profibus interface capable of providing
discrete control and monitoring of motor starters, drives, and other devices over a Profibus network.
The design of the CIO-777-PR provides the following benefits in both new and existing installations:
reduced field wiring
greater operator efficiency
ease in system startup and commissioning
The CIO-777-PR Profibus module can be DIN rail mounted, or mounted directly to a back panel. The
CIO-777-PR's compact size, ease of wiring and Profibus communications capability makes the use
of traditional discrete devices on Profibus cost-effective and simple.
The CIO-777-PR Module is compatible with SymCom's Model 777-P Series overload relays. It simply
connects to the side of the 777-P Series and permits remote monitoring and control of the 777-P
Series unit over a Profibus network.
CONNECTIONS
1. Mount the CIO-777-PR in a convenient location in a properly rated enclosure. The CIO-777-PR
can be mounted to a back panel using screws or can be snapped onto DIN rail.
2. Connect the five Profibus wires to the 5-pin connector on the front of the CIO-777-PR Module.
24VDC should be connected to V+ and V-. Connect the other three wires to A, B and Shield.
3. The PBus LED indicates that communication is established between the CIO-777-PR and the
Profibus master, and OLC LED indicates communication is established with the 777-P Series
overload.
4. Connect the Profibus SUB-D connector to the Profibus network.
TERMINAL BLOCK
V-
A
PROFIBUS
SHIELD
NETWORK
B
V+
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
FOLLOW NATIONAL, STATE AND LOCAL CODES.
DEPLUGGABLE
SUB-D CONNEC TOR
PROFIBUS NETWORK S TATUS
OVERLOAD COMM. S TA TUS
CIO-E777-PR

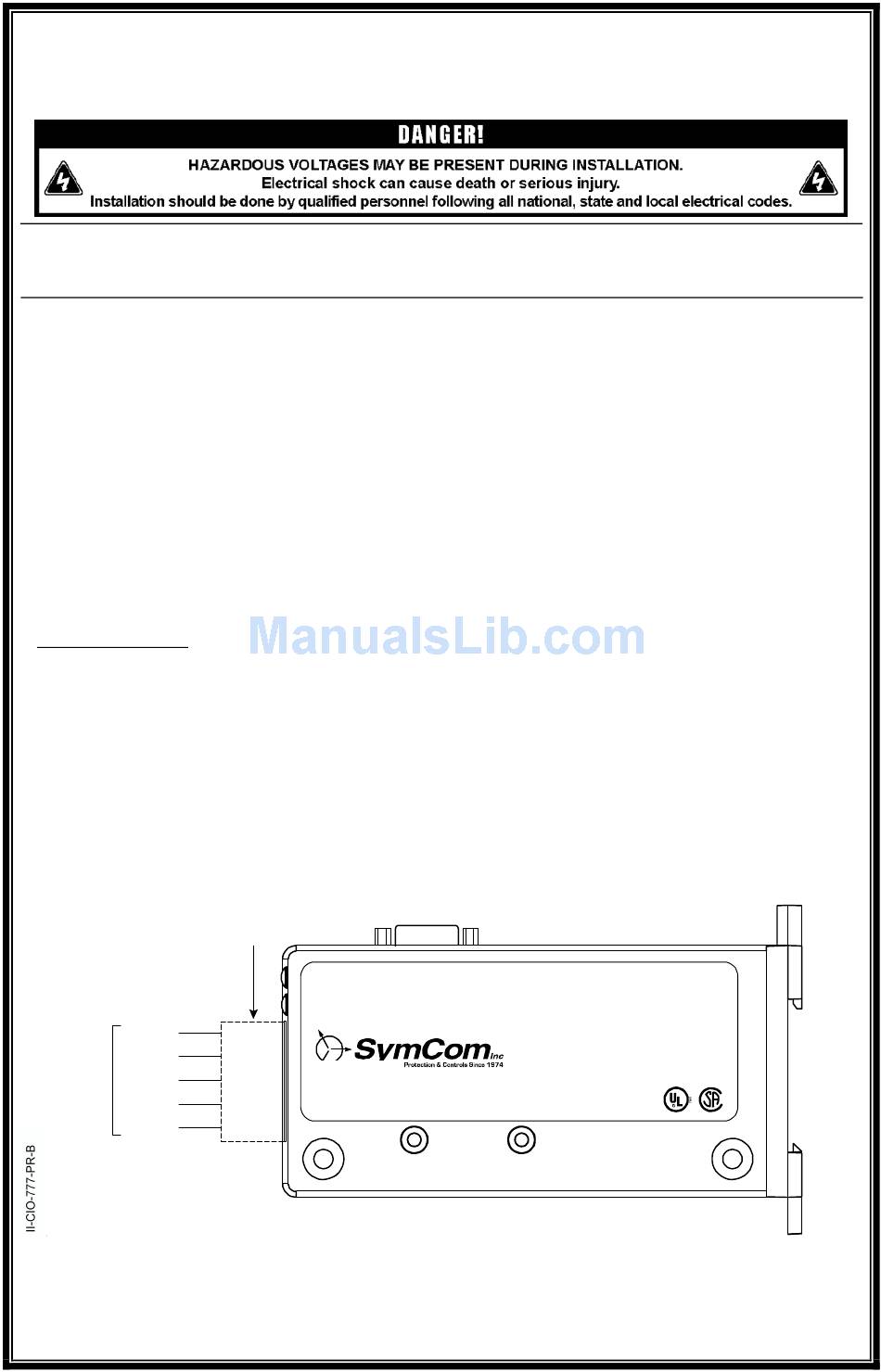

FIGURE 1: Typical Wiring Diagram
MODEL CIO-777-PR
PROFIBUS COMMUNICATIONS MODULE
PROGRAMMING GUIDE
PROFIBUS
PROFIBUS Communication
SCREW TORQUE RATING 0.5 Nm ( 5.0 in.-lbs.)
IN D. C ON
T . E Q .
¨
L I ST E D
Advertisement
Table of Contents
Related Manuals for SymCom CIO-777-PR
Summary of Contents for SymCom CIO-777-PR
- Page 1 The CIO-777-PR Profibus module can be DIN rail mounted, or mounted directly to a back panel. The CIO-777-PR’s compact size, ease of wiring and Profibus communications capability makes the use of traditional discrete devices on Profibus cost-effective and simple.
- Page 2 777-P Series overload relay. OPERATION The CIO-777-PR Module is a DP-V0 device. Cyclical I/O is supported for the transfer of input and output information. PROFIBUS NETWORK CONFIGURATION...
- Page 3 ––– RxD/TxD-N Receive/Transmit data; line A (green) ----- ------ 1 2 3 4 5 FIGURE 3: 9-Pin Sub-D Connector Pin Assignment 6 7 8 9 CIO-777-PR SPECIFICATIONS Power Requirements Voltage 12–24VDC Current 150mA (max.) Power 3.6 Watts (max.) 3 oz.
- Page 4 DIMENSIONS PROFIBUS DEPLUGGABLE SUB-D CONNECTOR TERMINAL BLOCK PROFIBUS NETWORK S TATUS OVERLOAD COMM. S TA TUS CIO-E777-PR PROFIBUS Communication IN D. C ON T . E Q . ¨ S CR EW TORQUE R ATING 0.5 Nm (5.0 in-lbs. L I ST E D .350 3.750 .700...
