- Page 1 INSTALLATION Revision B1 INSTRUCTIONS Rapid City, SD, USA, 07/2009 MODEL 233P/111P/233P-1.5 Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...

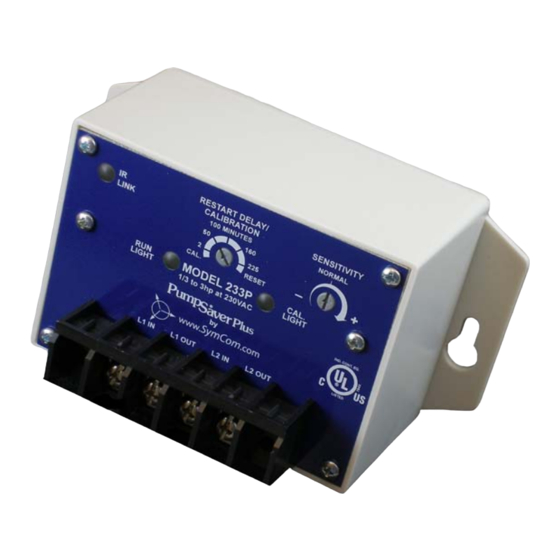

- Page 2 BE SURE POWER IS DISCONNECTED PRIOR TO INSTALLATION! FOLLOW NATIONAL, STATE AND LOCAL CODES. READ THESE INSTRUCTIONS ENTIRELY BEFORE INSTALLATION. ® SymCom’s PumpSaver Plus is a pump monitor designed to protect single-phase pumps from dry- well, dead-head, jammed impeller, rapid-cycling, overvoltage and undervoltage conditions. The ®...
- Page 3 FIGURE 1: Typical Wiring Diagram FIGURE 2: Standard Control Box Wiring Diagram Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
- Page 4 FIGURE 3: Deluxe Control Box Wiring Diagram FIGURE 4: 2-Wire Pump Direct-Feed Wiring Diagram Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
-
Page 5: Operation
The PumpSaver Plus has an adjustment knob to set the underload trip sensitivity. Setting SENSITIVITY to the middle position (straight up) is equivalent to SymCom’s standard underload trip level. Adjust the SENSITIVITY knob to increase/decrease underload sensitivity up to approximately ®... - Page 6 RUN HOURS / FAULT HISTORY ® ® The PumpSaver Plus records pump run hours. Run hours can be displayed by a PumpSaver Informer (see USING AN INFORMER at the bottom of this page). Run hours and fault history can be ®...
- Page 7 Disabling line side detection will not disable load side detection. USING AN INFORMER ® PumpSaver Plus products are equipped with an infrared LED that will communicate to a SymCom Informer—a handheld, battery-operated, diagnostic tool. The Informer—when directed at the ® PumpSaver Plus—will display real-time voltage, current and power;...
-
Page 8: Troubleshooting
TROUBLESHOOTING RUN LIGHT CAL. LIGHT PROBLEM or FUNCTION CORRECTIVE ACTION If pump is not running, check for RUN: loose wiring and ensure proper On Steady Pump is running—or ready to function of pressure or float run—no problems in operation switches. CAL: ®... -
Page 9: Physical Dimensions
PHYSICAL DIMENSIONS 2.93" FRONT VIEW (74.42) .375" 4.05" (102.87) (9.53) 4.50" (114.30) 5.26" (133.60) 2.90" (73.66) BOTTOM VIEW 2.17" (55.12) Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com... -
Page 10: Specifications
SPECIFICATIONS Functional Specifications Adjustments/Settings Overcurrent 125% of calibration point Underload (dry-well) Adjustable (70-90% of calibrated run power) Overvoltage 233P, 233P-1.5 265VAC 111P 132.5VAC Undervoltage 233P, 233P-1.5 190VAC 111P 95VAC Number of restarts allowed in 60 second period (rapid-cycling) Trip Delay Times Overcurrent 5 seconds Dry-well...
