MIDI IN and MIDI OUT/THRU
MIDI IN connector receives MIDI signals from an external MIDI device. MIDI OUT/THRU connector is used to feed
MIDI signals to external MIDI devices. When the MIDI OUT/THRU has been set to 'THRU', MIDI signals received at
MIDI IN pass through the EFX-10D without any changes.
Refer to the 4.5.1 MIDI > IN/OUT on the page 22 of the manual.
DC 9V
This is the main power input for the EFX-10D. The EFX-10D requires a DC9V power supply.
The current draw is approximately 250mA at DC9V (Center Negative).

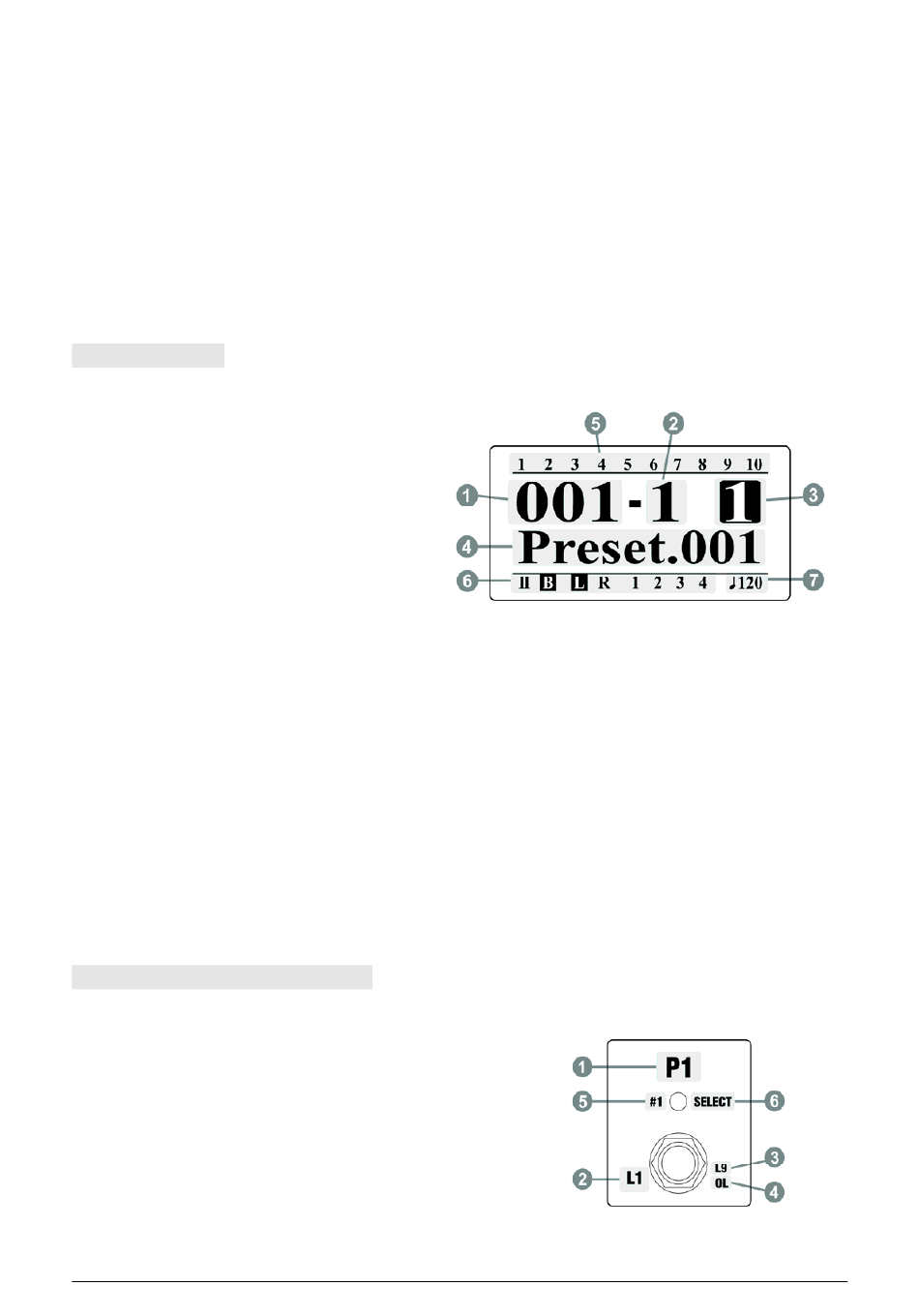

1.6 LCD Display
① Bank/song number
This area indicates a current bank/song
number.
② Preset number
This area indicates a current preset number
in the bank/song.
③ Page number
This area indicates a current page number.
④ Title
This area indicates the preset title of the current preset. Also this area indicates the switch title, volume or
BPM for a short time, when the switch is pressed.
⑤ Audio loops status
This area indicates which of the 10 audio loops are currently active.
⑥ Input, buffer, outputs and function-switches status
This area indicates which of the input, buffer, outputs and function-switches are currently active.
⑦ BPM
This area indicates the currently operating BPM.

1.7 Characters around Switch

①
Switch function assigned to page 1
②
Switch function assigned to page 2.
③
Switch function assigned to page 3.
④
Switch function assigned to page 4.
⑤
Switch unique number used to set switch function.
⑥
Switch function used in setup mode.
EFX-10D Audio Controller Owner's Manual 6
