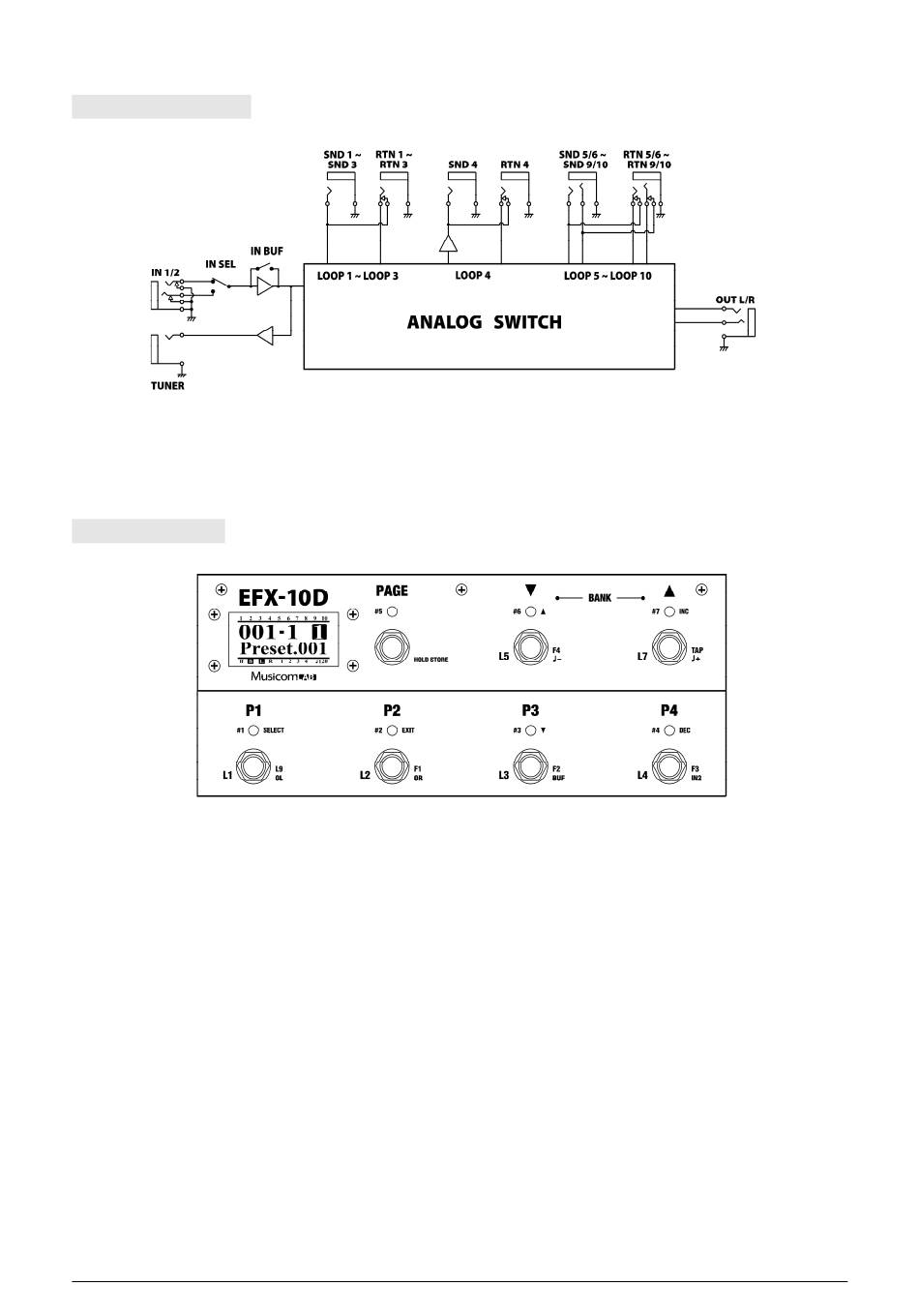

1.3 Block Diagram

1.4 Front Panel

P1 through P4
On the page 1, these switches are used to recall one of the five presets. When on other pages, pressing these
switches turns on/off individual effect loops, function switches, outputs, buffer, etc.
PAGE
Pressing this switch puts the EFX-10D into the other page, where you can turn individual loops on and off, and store
their settings to presets.
Pressing & holding this switch for 1 second will store the IA edit and return to the page 1.
Factory setting provides 4 pages. Up to 8 pages can be used depending on the user's preference.
BANK▲ and BANK▼
The 800 presets in the EFX-10D are arranged in banks of 4, and these buttons allow you to select which bank of 4
you'd like to access. Pressing this switch in Preset mode increments/decrements the bank number.
