User Manual
v1.0
2024.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC MOTION 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji RC MOTION 3

Summary of Contents for dji RC MOTION 3

  • Page 1 User Manual v1.0 2024.04...
  • Page 2 Users should only refer to this document and the content thereof as instructions to operate DJI UAV. The document should not be used for other purposes.

  • Page 3: Using The Manual Legend

    Download the DJI Fly App Scan the QR code to download the latest version. • The Android version of DJI Fly is compatible with Android v7.0 and later. The iOS version of DJI Fly is compatible with iOS v11.0 and later.

  • Page 4: Table Of Contents

    Easy ACRO (Only for Certain Aircraft) AR Cursor Optimal Transmission Zone Motion Controller Alert Motion Controller Calibration Appendix Specifications Compatible Products Updating Firmware Using DJI Fly App Using DJI Assistant 2 (Consumer Drones Series) Aftersales Information ©    2024 DJI All Rights Reserved.

  • Page 5: Product Profile

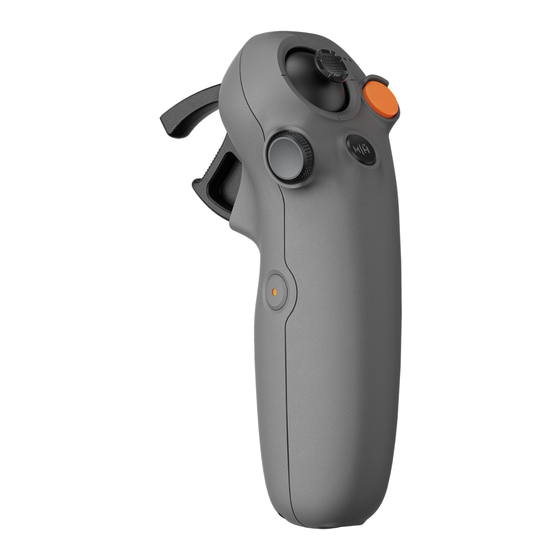

    Product Profile Introduction DJI RC Motion 3 (hereinafter referred to as motion controller) features a streamlined design for a comfortable grip. Paired with compatible aircrafts, the function buttons on the body enable users to easily control the aircraft and remotely change the aircraft settings. The motion controller supports intuitive body movement control, offering efficiency and ease for your flights.

  • Page 6: Button Features

    DJI RC Motion 3 User Manual Button Features Lock Button • Takeoff: Press twice to start the aircraft motors, then press and hold to make the aircraft take off. The aircraft will ascend to approximately 1.2 m and hover. • Landing: While the aircraft is hovering, press and hold to land the aircraft and stop the motors.
  • Page 7 DJI RC Motion 3 User Manual Accelerator The accelerator is used for controlling aircraft orientation and acceleration. There are two stops when pressing the accelerator. After gently pressing the accelerator, users will feel noticeable resistance when the accelerator reaches the first stop.

  • Page 8: Preparing Dji Rc Motion 3

    DJI RC Motion 3 User Manual Preparing DJI RC Motion 3 Go to the address below or scan the QR code to watch the tutorial video before using for the first time. https://www.dji.com/rc-motion-3/video Powering On/Off Press the power button once to check the current battery level. Charge before using if the battery level is too low.

  • Page 9: Linking

    DJI RC Motion 3 User Manual • Fully charge the remote controller before each flight. The remote controller sounds an alert when the battery level is low. • Fully charge the battery at least once every three months to maintain good battery health.
  • Page 10 • Make sure the devices are within 0.5 m of each other during linking. • Restart the devices if the devices fail to link. Connect the goggles to a mobile device, run the DJI Fly app, select Connection Guide, and then follow the on-screen instructions to link.

  • Page 11: Activation

    DJI Fly app. The app will automatically identify the motion controller and activate it in silent mode. Users can also connect the motion controller to DJI Assistant 2 (Consumer Drone Series) to activate. Activate the device as soon as possible after purchase to avoid affecting the after-sales service.

  • Page 12: Using The Motion Controller

    DJI RC Motion 3 User Manual Using the Motion Controller Flight Operations Taking Off, Braking and Landing Use the lock button to control the takeoff, landing, and braking of the aircraft. • Takeoff: Press twice to start the aircraft motors, then press and hold to make the aircraft take off.

  • Page 13: Flying Forward And Backward

    DJI RC Motion 3 User Manual Flying Forward and Backward Press or push the accelerator of the motion controller to fly forward or backward. Apply more pressure when pressing or pushing to accelerate. Release to stop and hover. Flight Trajectory...

  • Page 14: Adjusting Aircraft Orientation

    DJI RC Motion 3 User Manual Adjusting Aircraft Orientation After gently pressing the accelerator to the first stop, users can adjust the aircraft orientation by tilting the top of the motion controller to the left or right. The greater the tilt angle of the motion controller, the faster the aircraft will rotate.

  • Page 15: Controlling The Gimbal And Camera

    DJI RC Motion 3 User Manual Controlling the Gimbal and Camera Tilt the motion controller up and down to control the tilt of the gimbal. The tilt of the gimbal changes with the tilt of the motion controller accordingly and is always consistent with the orientation of the motion controller.

  • Page 16: Easy Acro (Only For Certain Aircraft)

    DJI RC Motion 3 User Manual Easy ACRO (Only for Certain Aircraft) Use the motion controller to perform Easy ACRO actions including front flip, backflip, roll, and 180° drift. • For flight safety, perform Easy ACRO actions in an open environment.
  • Page 17 DJI RC Motion 3 User Manual Slide Push the joystick up or down to make the aircraft ascend or descend. Push the joystick left or right to make the aircraft move left or right horizontally. 180° Drift Push the joystick left or right to make the aircraft 180° drift left or right.

  • Page 18: Ar Cursor

    Easy ACRO cannot be used. AR Cursor • AR Cursor is only supported when used with DJI Goggles 3. • AR Cursor cannot function properly when being used on moving objects, such as cars and ships.
  • Page 19 DJI RC Motion 3 User Manual Recenter the Cursor If the cursor is not displayed on the screen of the goggles, hold the motion controller as shown below, and then press and hold the dial on the left side of the motion controller to recenter the cursor.
  • Page 20 DJI RC Motion 3 User Manual Use the joystick on the motion controller to scroll up or down in the menu. To exit or return to the previous menu, push the accelerator forward, or gently press the accelerator when the cursor is on any empty spot on the screen.
  • Page 21 DJI RC Motion 3 User Manual • Move the cursor to the arrow on the bottom of the screen, press the accelerator to enter camera settings, and configure settings for the parameters of the aircraft camera. Controlling Video Playback When previewing photos or videos stored on the microSD card of the goggles, the cursor can be used to control playback, or complete other operations such as: •...

  • Page 22: Optimal Transmission Zone

    DJI RC Motion 3 User Manual Optimal Transmission Zone The signal between all the devices is most reliable when the relative distance between the motion controller and the goggles is less than 3 m. ≤3m • It is recommended to use the device in an open, outdoor environment to avoid having obstacles between the motion controller and the goggles.

  • Page 23: Appendix

    -10° to 40° C (14° to 104° F) Operating Time Approx. 10 hours * Measured with an ambient temperature of 25° C (77° F), when connected to DJI Goggles 3, and in a stationary state. Battery Charging Temperature 0° to 50° C (32° to 122° F) Charging Time Approx.

  • Page 24: Updating Firmware

    Power on the aircraft, goggles, and motion controller. Make sure all the devices are linked. Connect the USB-C port of the goggles to the mobile device, run DJI Fly, and follow the prompts to update the firmware. Make sure the mobile device is connected to the internet during the firmware update.

  • Page 25: Aftersales Information

    DJI RC Motion 3 User Manual Aftersales Information Visit https://www.dji.com/support to learn more about aftersales service policies, repair services, and support. © 2024 DJI All Rights Reserved.   ...
  • Page 26 DJI SUPPORT This content is subject to change. https://www.dji.com/rc-motion-3/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI and DJI AVATA are trademarks of DJI. Copyright © 2024 DJI All Rights Reserved.
