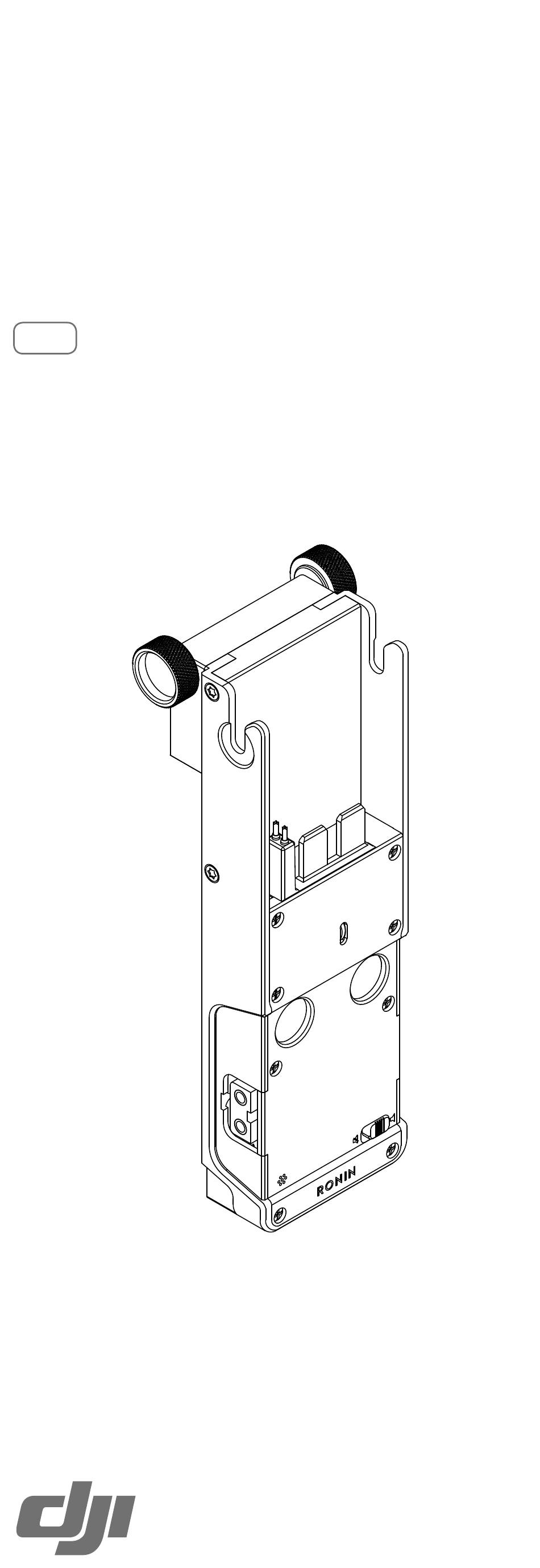

- Page 1 RONIN Intelligent Battery Power Distributor Quick Start Guide V1.2 2016.02...
- Page 2 Please use this product in strict accordance with the manual and be sure to pay attention to the warnings. SZ DJI Technology Co., Ltd. and its affiliated companies assume no liability for damage(s) or injuries incurred directly or indirectly from improper use of this product.

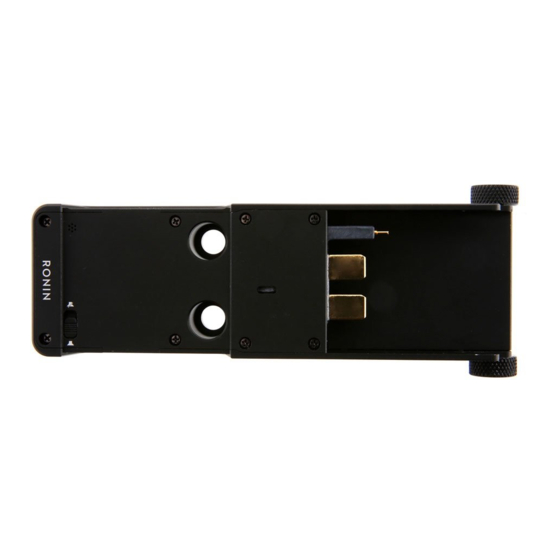

- Page 3 Overview Thumb Screws Battery Slot Mounting Holes P-TAP Outlet P-TAP Outlet Low Battery Warning On/Off Switch Buzzer Installation 1. Before attaching the Intelligent Battery to the power distributor, select the desired sound option for the buzzer which is triggered when the battery level drops below 10%. 2.
- Page 4 Ensure the Intelligent Battery is turned off during installation. Ensure the Intelligent Battery is firmly installed and the connectors make good contact. Failure to do so may lead to poor power and signal transmission. 3. Tighten the thumb screws on the Intelligent Battery to secure.
- Page 5 5. Loosen the thumb screws on both sides of the power distributor. Slide the power distributor into the battery slot of the Ronin or Ronin-M. Ensure the connectors make good contact. 6. Tighten the thumb screws on the power distributor to secure. 7.
- Page 6 This content is subject to change. Download the latest version from www.dji.com/product/ronin-m If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2016 DJI. All Rights Reserved.
