HOMCOM 370-025V01 Manual page 8

2
1
IMPORTANT:
The seat cushion is
adjustable.
1 is the front file; 2 is the rear
stop.
The bolt holes indicated by 2
can expand the riding space

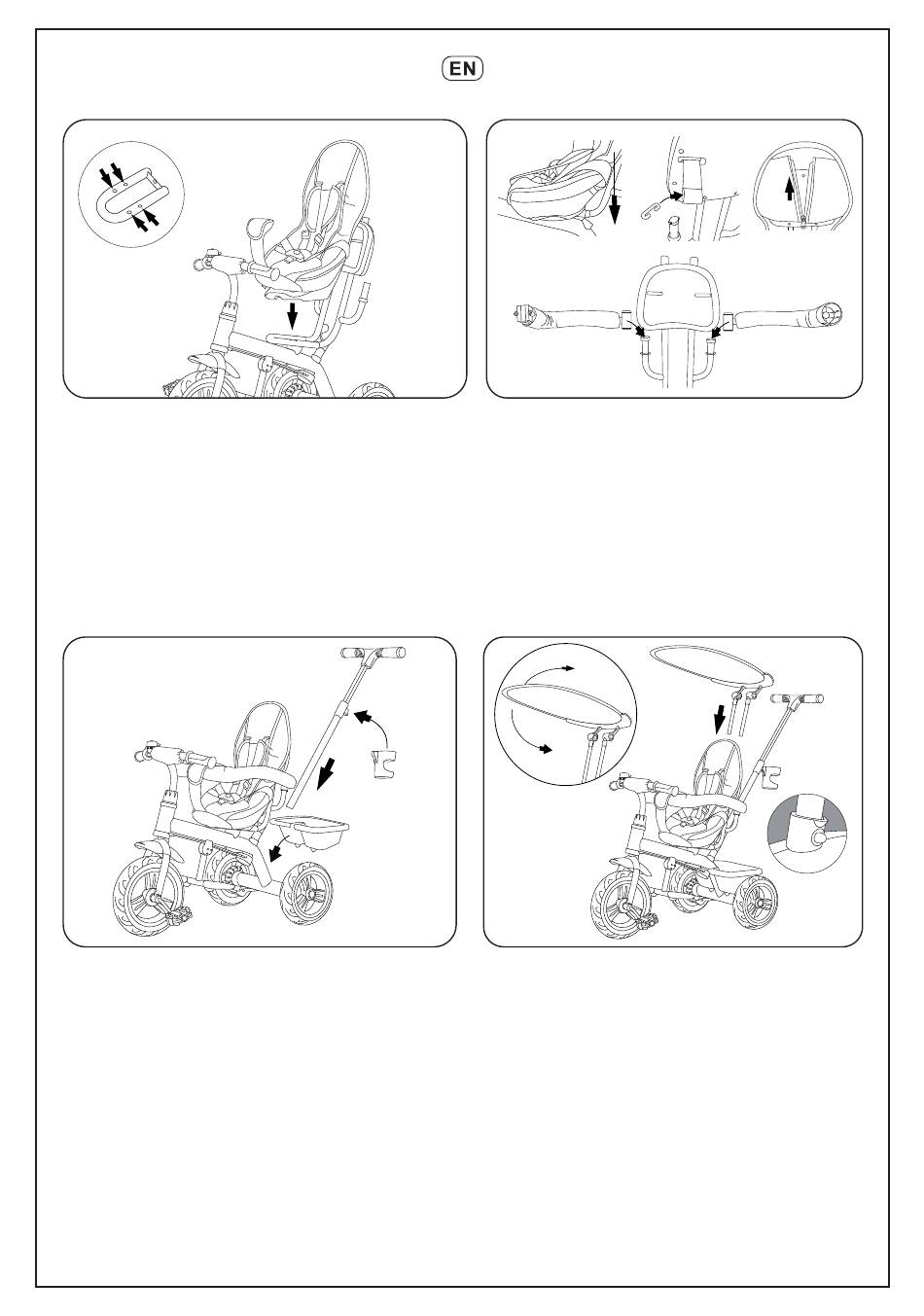

5. As shown in the picture, align the seat with the
frame screw hole and secure it with screws.
Adjustment of Push bar
Press the dome on the push bar.
you can adjust the height in four position.
7. As shown in the picture, place the basket on the
main frame rear axle, position it correctly, and
tighten it with the basket lock. Insert the push rod
into the connecting tube at the rear of the seat until
it locks with a "click" sound, completing the lock.
Finally, attach the bottle holder.
6. As shown in the picture, insert the seat cush-
ion cover into the saddle, then secure the safety
straps through the backrest hole using the
safety belt C-type buckle, and zip up the zipper
behind the backrest. Then, slide the left and
right parts of the frame down along the groove
of the slot, and then thread through the front bar
of the seat cushion cover, close the left and right
frames.
IMPORTANT:
The awning can be
adjusted up and down.
8. As shown in the picture, align the canopy
bracket positioning column with the guardrail
bracket and insert it until it locks with a "click"
sound.
8
