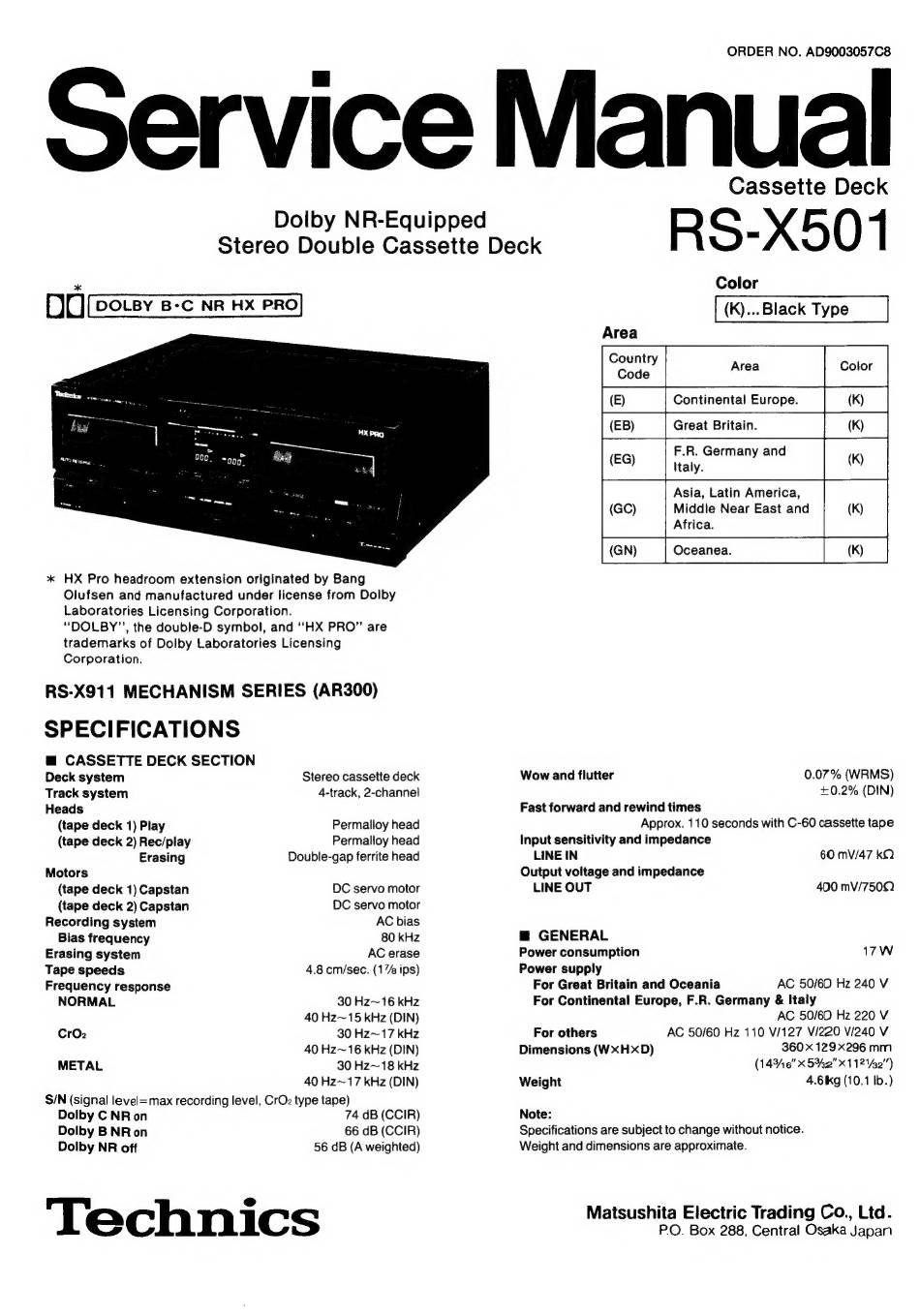

Technics RS-X501 Service Manual

ORDER NO. AD9003057C8
Dolby NR-Equipped
Stereo Double Cassette Deck
DU (eotsy 5-6 wa Hx PAO]
* HX Pro headroom extension originated by Bang
Olufsen and manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY"', the double-D symbol, and 'HX PRO" are
trademarks of Dolby Laboratories Licensing
Corporation.
RS-X911 MECHANISM SERIES (AR300)
SPECIFICATIONS
@ CASSETTE DECK SECTION
Deck system Stereo cassette deck
Track system 4-track, 2-channel
Heads
(tape deck 1) Play Permalloy head
(tape deck 2) Rec/play Permalloy head
Erasing Double-gap ferrite head
Motors
(tape deck 1) Capstan DC servo motor
(tape deck 2) Capstan DC servo motor
Recording system
Bias frequency
Erasing system
Tape speeds
Frequency response
NORMAL
CrOz
METAL
AC bias
80 kHz
AC erase
4.8 cm/sec. (1% ips)
30 Hz~16 kHz
40 Hz~15 kHz (DIN)
30 Hz~17 kHz
40 Hz~16 kHz (DIN)
30 Hz~18 kHz
40 Hz~17 kHz (DIN)
S/N (signal level=max recording level, CrOz type tape)
Dolby C NR on
Dolby B NR on
Dolby NR off
74 dB (CCIR)
66 dB (CCIR)
56 dB (A weighted)
Technics
Cassette Deck
RS-X501
(K)...Black Type
Area
Area
Country
Code
(E) Continental Europe. (K)
(EB) Great Britain. (K)
F.R. Germany and
(EG) Italy.
(K)
Asia, Latin America,
Middle Near East and (K)
Africa.
Wow and flutter 0.07% (WRMS)
+0.2% (DIN)
Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Input sensitivity and impedance
LINE IN 60 mV/47 kQ
Output voltage and impedance
LINE OUT 400 mV/7502)
@ GENERAL
Power consumption 17W
Power supply
For Great Britain and Oceania AC 50/60 Hz 240 V
For Continental Europe, F.R. Germany & Italy
AC 50/60 Hz 220 V
For others AC 50/60 Hz 110 V/127 V/220 V/240 V
Dimensions (WxHxD) 360 x 129296 mm
(14%68"x5%2"*11?%40"")
Weight 4.6 kg (10.1 Ib.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
