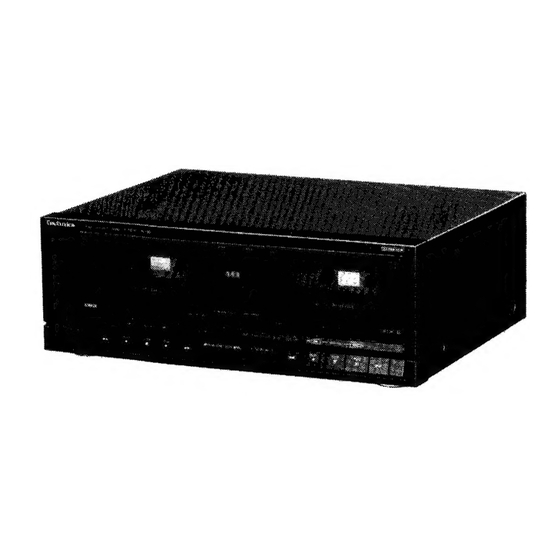

Dolby NR-Equipped
Stereo Double Cassette Deck
DC) [eousy
-c wa]
SPECIFICATIONS
Ml CASSETTE DECK SECTION
Deck system
Stereo cassette deck
Track system
4-track, 2-channel
Heads
(tape deck A) Rec/play
Permalloy head
Erasing
Double-gap ferrite head
(tape deck B) play
Permailoy head
Motors
(tape deck A) Capstanireel table drive
© DC servo motor
(tape deck B) Capstan/reel table drive
OC servo motor
Recording system
AC bias
Bias frequency
80 kHz
Erasing system
AC erase
Tape speed
4.8 cmisec. (1-7/8 ips)
Frequency response (w/o Dolby NR)
NORMAL
30 Hz~16 kHz
40 Hz~15 kHz (DIN)
cro,
30 Hz~16 kHz
40 Hz~15 kHz (DIN)
METAL
30 Hz~18 kHz
40 Hz~17 kHz (DIN)
SIN (signal fevel = max recording level, CrO, type tape)
Dolby C NR on
74 dB (CCIR)
Dolby B NR on
66 dB (CCIR)
Dolby NR off
56 dB (A weighted)
Technics
ORDER NO. AD8904094C8
Cassette Deck
RS-X933
Color
(K)... Black Type
Area
Country
(E/E5)
| Continental Europe.
| tk) |
(EB) | Great Britain.
| (kK)
(K)
(K)
foo [esas |
(West Germany).
| (eo) | T h i
")
K
(GC)
Third Region
| Kk) |
Wow and flutter
Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Input sensitivity and impedance
0.1 % (WRMS)
LINE
;
60 mV/47 kQ
Output voltage and impedance
LINE
400 mV/800 Q
M@ GENERAL
Power consumption
15 W
Power supply
AC 50/60 Hz 220V
((EG) area only)
Dimensions (W x H x D)
360 x 129 x 270 mm
(14-3/16"" x 5-2/32"' x 10-5/8'')
Weight
For [EG] area.
4. Okg (8.8 Ib.)
For others.
3, 5kg (7.7 |b.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of
Dolby Laboratories Licensing Corporation.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 53(-91, Japan
