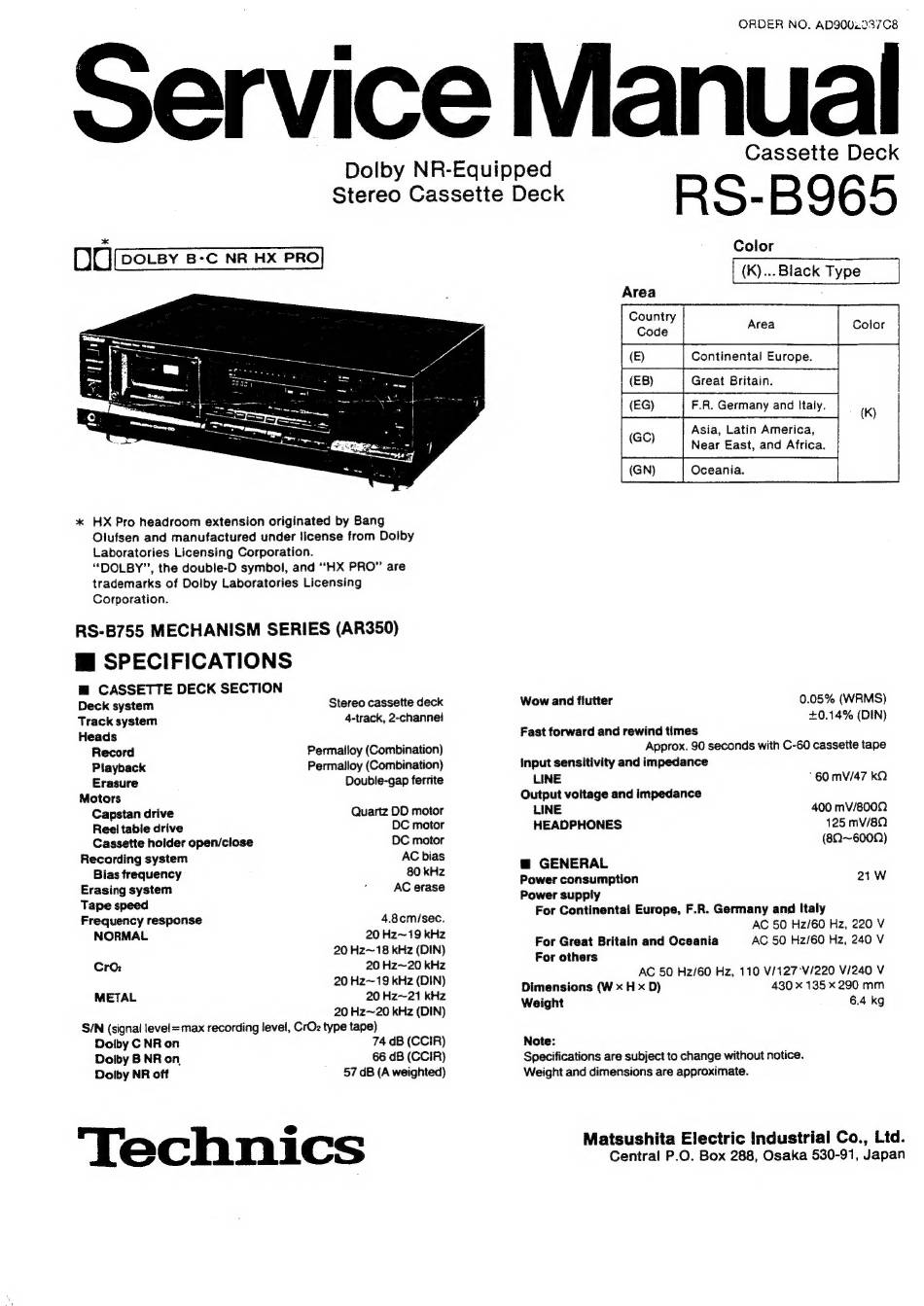

Technics RS-B965 Service Manual

ORDER NO. AD9002237C8

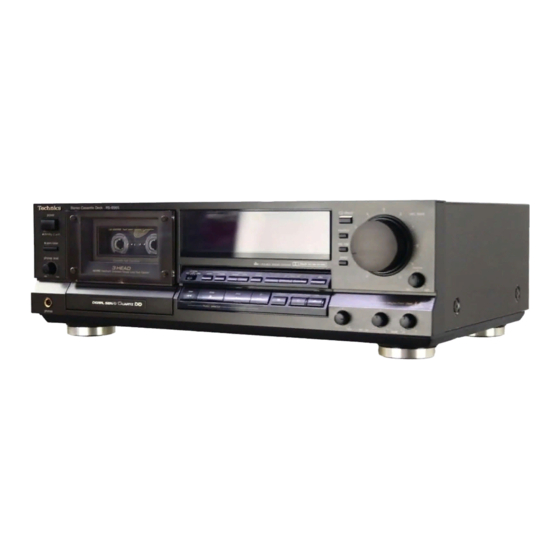

Cassette Deck
Dolby NR-Equipped
Stereo Cassette Deck
DC (Batey 5-c wa Hx PRO]
* HX Pro headroom extension originated by Bang
Olufsen and manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY", the double-D symbol, and 'HX PRO" are
trademarks of Dolby Laboratories Licensing
Corporation.
m CASSETTE DECK SECTION
20 Hz~20 kHz (DIN)
S/N (signal level=max recording level, CrOz type tape)
RS-B965
Color
(K)... Black Type
Area
Continental Europe.
(EG) F. | F.R. Germany and Italy. | | F.R. Germany and Italy. | and Italy.
Asia, Latin America,
(GC) Near East, and Africa.
(K)
Wow and flutter 0.05% (WRMS)
+0.14% (DIN)
Fast forward and rewind times
Approx. 90 seconds with C-60 cassette tape
input sensitivity and impedance
HEADPHONES 125 mV/8Q
(8Q~6000)
@ GENERAL
Power consumption
21W
Power supply
For Continentai Europe, F.R. Germany and Italy
AC 50 Hz/60 Hz, 220 V
For Great Britain and Oceania
AC 50 Hz/60 Hz, 240 V
For others
AC 50 Hz/60 Hz, 110 V/127-V/220 V/240 V
Dimensions (W x H x D) 430 x 135 x 290 mm
Weight 6.4 kg
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
